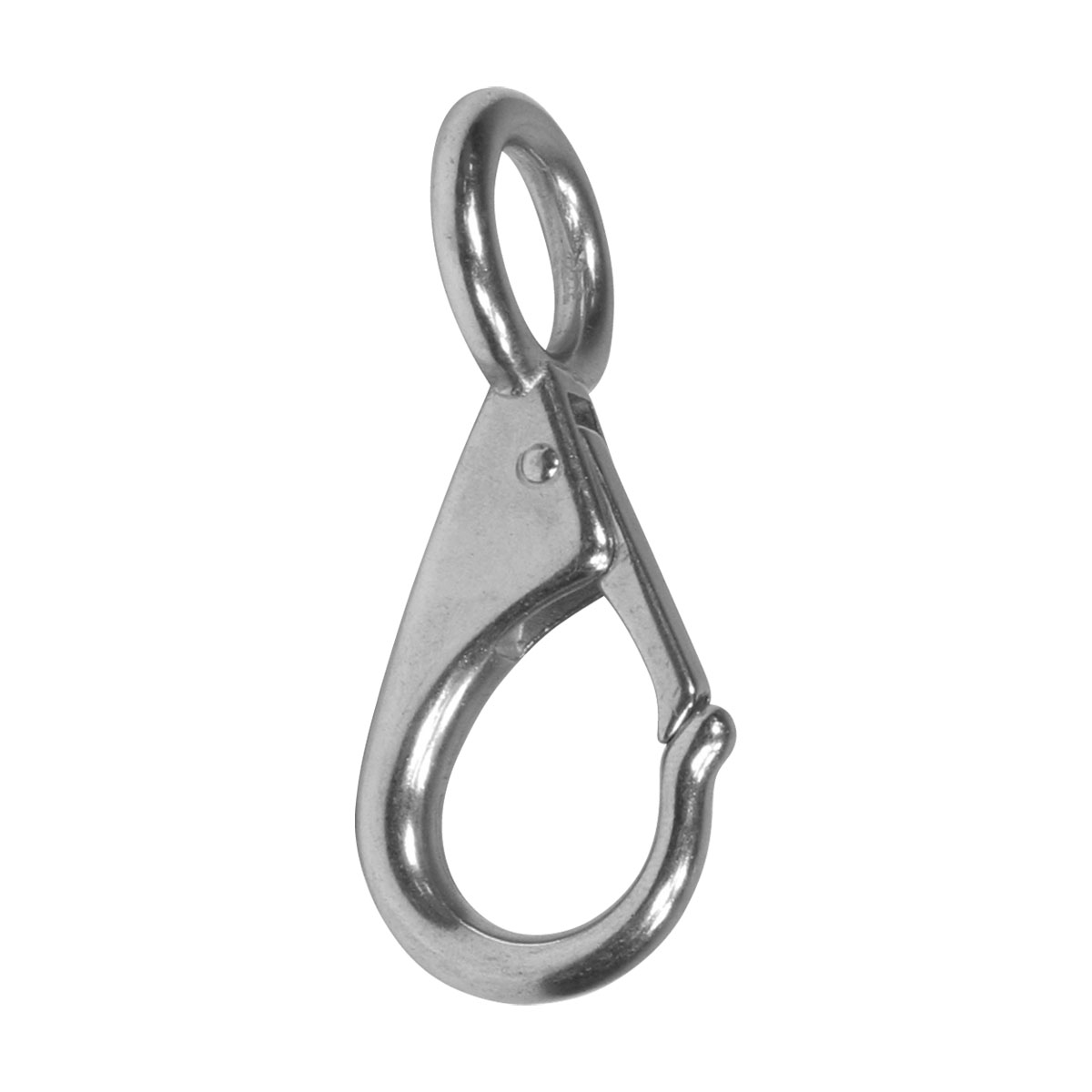

Cast 316 grade stainless steel construction. Large fixed eye head. Coil spring loaded, inward opening gate.
|
BLA CODE
|
A MM
|
B MM
|
MAX. OPENING MM
|
BREAK LOAD KG
|
|---|---|---|---|---|
| BLA-164092 | 55 | 11 | 9 | 160 |
| Length (a) | 90mm, 107mm, 123mm |
|---|
• AS2741 Standard.
• Configuration with screw pin hot dipped galvanised.
• Marked with load limit in tonnes, grade ‘S’ batch.
• Number, nominal size in millimetre and supplier identification.
• Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.
• Test certificates are available upon request.
• Suitable for lifting applications.
• GP – QLD Transport Approved.
| PART NUMBER | PIN DIAMETER | BODY DIAMETER (∅) | INTERNAL LENGTH (A) | OPENING WIDTH (B) | INTERNAL WIDTH (C) | WORKING LOAD LIMIT | |
SAW-130024 |
10mm | 8mm | 31.0mm | 13.0mm | 21.0mm | 750kg | |
| SAW-130024-10 | 10mm | 8mm | 31.0mm | 13.0mm | 21.0mm | 750kg | |
SAW-130026 |
11mm | 10mm | 35.0mm | 16.0mm | 26.0mm | 1T | |
| SAW-130026-10 | 11mm | 10mm | 35.0mm | 16.0mm | 26.0mm | 1T | |
SAW-130028 |
13mm | 11mm | 43.0mm | 18.0mm | 28.0mm | 1.5T | |
| SAW-130028-10 | 13mm | 11mm | 43.0mm | 18.0mm | 28.0mm | 1.5T | |
SAW-130030 |
16mm | 13mm | 48.0mm | 20.0mm | 29.0mm | 2T | |
| SAW-130030-10 | 16mm | 13mm | 48.0mm | 20.0mm | 29.0mm | 2T | |
SAW-130032 |
19mm | 16mm | 60.0mm | 26.0mm | 43.0mm | 3.2T | |
| SAW-130032-10 | 19mm | 16mm | 60.0mm | 26.0mm | 43.0mm | 3.2T | |
| SAW-130034 | 22mm | 19mm | 71.0mm | 32.0mm | 51.0mm | 4700kg | |
SAW-130036 |
25mm | 22mm | 84.0mm | 36.0mm | 58.0mm | 6500kg | |
SAW-130037 |
29mm | 25mm | 95.0mm | 43.0mm | 68.0mm | 8.5T | |
SAW-130038 |
32mm | 29mm | 108.0mm | 46.0mm | 74.0mm | 9.5T | |
SAW-130039 |
35mm | 32mm | 119.0mm | 52.0mm | 83.0mm | 12T | |
SAW-130042 |
51mm | 44mm | 178.0mm | 73.0mm | 127.0mm | 25T |
Note: Pin colours may vary.
Quality heavy duty tested ‘D’ shackle. Suitable for a wide range of applications. Features hot dipped galvanising for the body and pin, creating superior corrosion resistance and longevity, plus large tie off hole for pin security making them ideal for use in harsh marine environments. Manufactured to meet or exceed current American standard RR-C-271 Type IV Grade A. These specifications ensure that each shackle performs to the load rated and proof tested weights as stated with a safety factor of 6 to 1. Conveniently stamped with working load limit and bail size.
|
BLA CODE
|
BAIL SIZE MM
|
PIN DIA. MM
|
WORKING LOAD KG
|
BREAKING LOADK G
|
D1 MM
|
E THREAD MM
|
W MM
|
W1 MM
|
L MM
|
|---|---|---|---|---|---|---|---|---|---|
143022 |
6 | 8 | 500 | 3000 | 4.8 | 5/16 – 18UNC | 11.9 | 24.1 | 35.1 |
| 143024 |
8 | 10 | 750 | 4500 | 5.6 | 3/8 16UNC | 13.5 | 29.5 | 42.2 |
| 143026 |
10 | 11 | 1000 | 6000 | 6.4 | 7/16 14UNC | 16.8 | 35.8 | 51.6 |
| 143028 |
13 | 16 | 2000 | 12000 | 9.7 | 5/8 11UNC | 20.6 | 46 | 68.3 |
| 143030 |
16 | 19 | 3250 | 19500 | 11.2 | 3/4 10UNC | 26.9 | 58.7 | 84.8 |
| 143032 |
19 | 22 | 4750 | 28500 | 12.7 | 7/8 9UNC | 31.8 | 69.9 | 100.8 |
| 143036 |
25 | 29 | 8500 | 51000 | 14.2 | 1 1/8 7UNC | 42.9 | 93.7 | 128.8 |
304 grade stainless steel eye bolt with rolled, welded eye. One piece construction, supplied with nut and two washers.
|
BLA CODE
|
A THREAD
|
B MM
|
C MM
|
D MM
|
BREAK LOAD KG
|
|---|---|---|---|---|---|
BLA-165062 |
M6 | 70 | 45 | 13 | 1000 |
BLA-165064 |
M6 | 90 | 65 | 13 | 1000 |
BLA-165066 |
M6 | 110 | 85 | 13 | 1000 |
BLA-165068 |
M8 | 118 | 85 | 17 | 1800 |
BLA-165070 |
M8 | 137 | 105 | 17 | 1800 |
BLA-165071 |
M10 | 130 | 90 | 21 | 2400 |
BLA-165072 |
M10 | 150 | 110 | 21 | 2400 |
BLA-165074 |
M12 | 135 | 85 | 25 | 3500 |
BLA-165075 |
M12 | 175 | 125 | 25 | 3500 |
Polished 304 grade stainless steel welded ëDí ring. Ideal for use with webbing.
|
BLA CODE
|
A MM
|
B MM
|
C MM
|
|---|---|---|---|
BLA-165224 |
4 | 30 | 25 |
BLA-165225 |
5 | 31 | 25 |
BLA-165226 |
5 | 55 | 50 |
BLA-165228 |
6 | 47 | 40 |
BLA-165232 |
6 | 60 | 50 |
BLA-165240 |
8 | 60 | 50 |
