$15.90 – $36.90

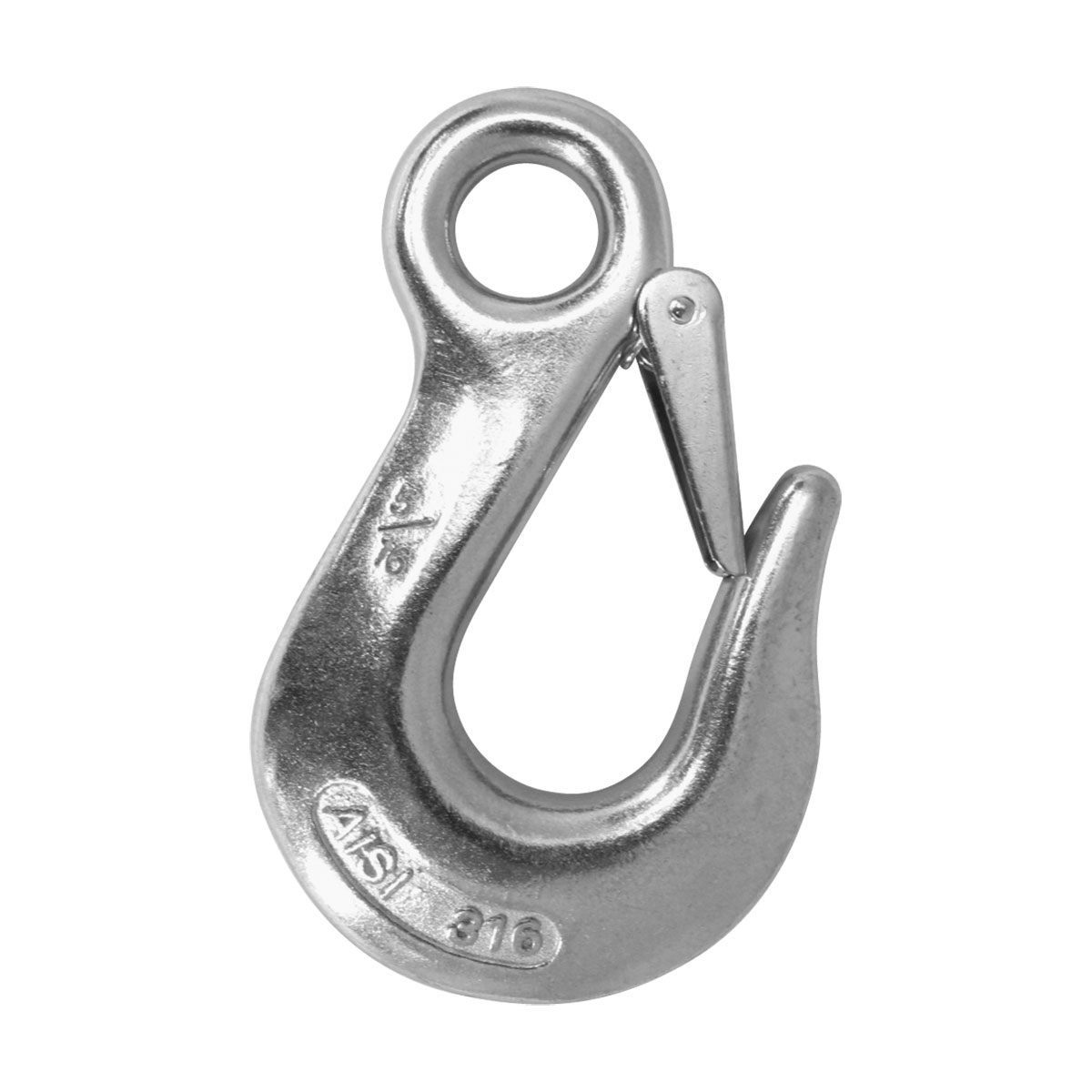

Cast 316 grade stainless steel eye snap hook with safety latch. No SWL rating for lifting purposes.
|
BLA CODE
|
A MM
|
B MM
|
C MM |
MAX. OPENING MM
|
|---|---|---|---|---|
| BLA-164342 | 90 | 60 | 13 | 15 |
| BLA-164344 | 107 | 67 | 16 | 17 |
| BLA-164346 | 123 | 80 | 18 | 15 |
| Length (a) | 90mm, 107mm, 123mm |
|---|
Galvanised bow shackles in a range of sizes. Ideal for anchoring, rigging and other applications.
| PART NUMBER | PIN DIAMETER | INTERNAL LENGTH (A) | OPENING WIDTH (B) | INTERNAL WIDTH (C) | BODY DIAMETER (∅) | |
|---|---|---|---|---|---|---|
SAW-110028 |
5mm | 24.5mm | 11.2mm | 16.9mm | 4.9mm | |
| SAW-110030 | 5.6mm | 26.6mm | 12.8mm | 18.9mm | 5.6mm | |
| SAW-110032 | 7mm | 31.8mm | 17.5mm | 23.1mm | 7.0mm | |
| SAW-110034 | 8.9mm | 36.3mm | 20.0mm | 29.2mm | 8.6mm | |
| SAW-110036 | 11.4mm | 45.0mm | 26.0mm | 34.9mm | 11.2mm | |
| SAW-110038 | 15.5mm | 63.6mm | 32.1mm | 47.7mm | 14.9mm | |
| SAW-110040 | 18.9mm | 74.8mm | 38.1mm | 59.2mm | 18.3mm | |
| SAW-110041 | 21.6mm | 86.4mm | 46.5mm | 67.2mm | 20.3mm | |
| SAW-110042 | 24.2mm | 109.6mm | 52.1mm | 82.4mm | 23.6mm |
Quality heavy duty tested bow shackle. Suitable for a wide range of applications. Features hot dipped galvanising for the body and pin, creating superior corrosion resistance and longevity, plus large tie off hole for pin security making them ideal for use in harsh marine environments. Manufactured to meet or exceed current American standard RR-C-271 Type IV Grade A. These specifications ensure that each shackle performs to the load rated and proof tested weights as stated with a safety factor of 6 to 1. Conveniently stamped with working load limit and bail size.
|
BLA CODE
|
BAIL SIZE MM
|
PIN DIA. MM
|
WORKING LOAD KG
|
BREAKING LOAD KG
|
D1 MM
|
E THREAD MM
|
W MM
|
B MM
|
L MM
|
|---|---|---|---|---|---|---|---|---|---|
143072 |
6 | 8 | 500 | 3000 | 4.8 | 5/16 – 18UNC | 11.9 | 19.8 | 28.7 |
| 143074 |
8 | 10 | 750 | 4500 | 5.6 | 3/8 – 16UNC | 13.5 | 21.3 | 31 |
| 143076 |
10 | 11 | 1000 | 6000 | 6.4 | 7/16 – 14UNC | 16.8 | 26.2 | 36.3 |
| 143078 |
13 | 16 | 2000 | 12000 | 9.7 | 5/8 – 11UNC | 20.6 | 33.3 | 47.8 |
| 143080 |
16 | 19 | 3250 | 19500 | 11.2 | 3/4 – 10UNC | 26.9 | 42.9 | 60.5 |
| 143082 |
19 | 22 | 4750 | 28500 | 12.7 | 7/8 – 9UNC | 31.8 | 50.8 | 71.4 |
| 143084 |
22 | 25 | 6500 | 39000 | 12.7 | 1 – 8UNC | 36.6 | 57.9 | 84.1 |
| 143086 |
25 | 29 | 8500 | 51000 | 14.2 | 1 1/8 – 7UNC | 42.9 | 68.3 | 95.3 |
Polished 304 grade stainless steel welded ëDí ring. Ideal for use with webbing.
|
BLA CODE
|
A MM
|
B MM
|
C MM
|
|---|---|---|---|
BLA-165224 |
4 | 30 | 25 |
BLA-165225 |
5 | 31 | 25 |
BLA-165226 |
5 | 55 | 50 |
BLA-165228 |
6 | 47 | 40 |
BLA-165232 |
6 | 60 | 50 |
BLA-165240 |
8 | 60 | 50 |
| Part No. | SAW-130044 | SAW-130046 |
| Weight | 0.13kg | 0.18kg |
| Pin Dia. | 11.0mm | 13.0mm |
| Body Dia. | 10.0mm | 11.0mm |
| A | 32.0mm | 36.0mm |
| B | 17.0mm | 20.0mm |
| C | 24.0mm | 27.0mm |
| WLL | 1.0T | 1.5T |
| Pin | Screw Pin | Screw Pin |
| Note | Pin colours may vary. | Pin colours may vary. |
