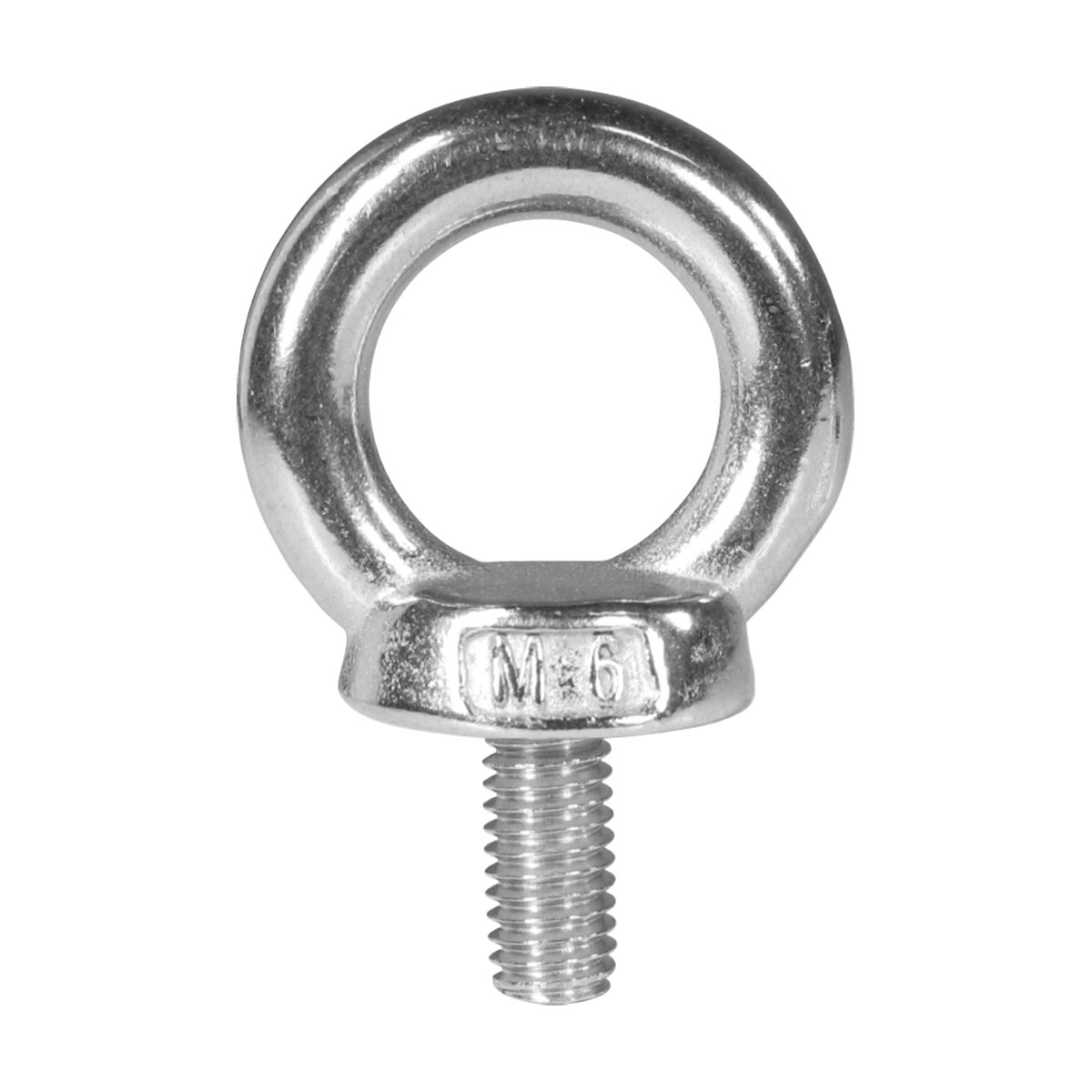

Cast 316 grade stainless steel, short eye bolt with collar (metric thread).
|
BLA CODE
|
A MM
|
B MM
|
C MM
|
D MM
|
THREAD MM
|
BREAK LOAD KG
|
|---|---|---|---|---|---|---|
| BLA-165398 | 41 | 27 | 16 | 13 | M6 | 1300 |
| BLA-165400 | 50 | 35 | 20 | 13 | M8 | 2000 |
| BLA-165402 | 62 | 45 | 25 | 17 | M10 | 2600 |
| Thread | M6, M8, M10 |
|---|
Hook and eye, 316 grade cast stainless steel open body. Forged stainless steel hook one end, rolled and welded stainless steel eye the other end.
|
BLA CODE
|
THREAD
|
A MM
|
B MM
|
C MM
|
BREAKING LOAD KG
|
|---|---|---|---|---|---|
BLA-163082 |
M4 | 100-145 | 8 | 8 | 100 |
BLA-163084 |
M5 | 120-170 | 10 | 9 | 130 |
BLA-163086 |
M6 | 150-220 | 12 | 10 | 350 |
BLA-163088 |
M8 | 200-290 | 13 | 10 | 650 |
BLA-163090 |
M10 | 240-360 | 16 | 12 | 800 |
BLA-163092 |
M12 | 305-475 | 19 | 16 | 1400 |
• AS2741 Standard.
• Configuration with screw pin hot dipped galvanised.
• Marked with load limit in tonnes, grade ‘S’ batch.
• Number, nominal size in millimetre and supplier identification.
• Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.
• Test certificates are available upon request.
• Suitable for lifting applications.
• GP – QLD Transport Approved.
| PART NUMBER | PIN DIAMETER | BODY DIAMETER (∅) | INTERNAL LENGTH (A) | OPENING WIDTH (B) | INTERNAL WIDTH (C) | WORKING LOAD LIMIT | |
SAW-130024 |
10mm | 8mm | 31.0mm | 13.0mm | 21.0mm | 750kg | |
| SAW-130024-10 | 10mm | 8mm | 31.0mm | 13.0mm | 21.0mm | 750kg | |
SAW-130026 |
11mm | 10mm | 35.0mm | 16.0mm | 26.0mm | 1T | |
| SAW-130026-10 | 11mm | 10mm | 35.0mm | 16.0mm | 26.0mm | 1T | |
SAW-130028 |
13mm | 11mm | 43.0mm | 18.0mm | 28.0mm | 1.5T | |
| SAW-130028-10 | 13mm | 11mm | 43.0mm | 18.0mm | 28.0mm | 1.5T | |
SAW-130030 |
16mm | 13mm | 48.0mm | 20.0mm | 29.0mm | 2T | |
| SAW-130030-10 | 16mm | 13mm | 48.0mm | 20.0mm | 29.0mm | 2T | |
SAW-130032 |
19mm | 16mm | 60.0mm | 26.0mm | 43.0mm | 3.2T | |
| SAW-130032-10 | 19mm | 16mm | 60.0mm | 26.0mm | 43.0mm | 3.2T | |
| SAW-130034 | 22mm | 19mm | 71.0mm | 32.0mm | 51.0mm | 4700kg | |
SAW-130036 |
25mm | 22mm | 84.0mm | 36.0mm | 58.0mm | 6500kg | |
SAW-130037 |
29mm | 25mm | 95.0mm | 43.0mm | 68.0mm | 8.5T | |
SAW-130038 |
32mm | 29mm | 108.0mm | 46.0mm | 74.0mm | 9.5T | |
SAW-130039 |
35mm | 32mm | 119.0mm | 52.0mm | 83.0mm | 12T | |
SAW-130042 |
51mm | 44mm | 178.0mm | 73.0mm | 127.0mm | 25T |
Note: Pin colours may vary.
Prevents chains twisting on permanent moorings and other similar applications. Not rated for lifting purposes.
|
BLA CODE
|
QTY
|
NORMAL SIZE MM
|
NORMAL SIZE IN
|
|---|---|---|---|
143106 |
1 | 6 | 1/4 |
| 143106B | 100 | 6 | 1/4 |
143108 |
1 | 8 | 5/16 |
| 143108B | 100 | 8 | 5/16 |
143110 |
1 | 10 | 3/8 |
| 143110B | 50 | 10 | 3/8 |
143113 |
1 | 13 | 1/2 |
| 143113B | 50 | 13 | 1/2 |
143120 |
1 | 19 | 3/4 |
| 143120B | 25 | 19 | 3/4 |
