$7.90 – $31.90

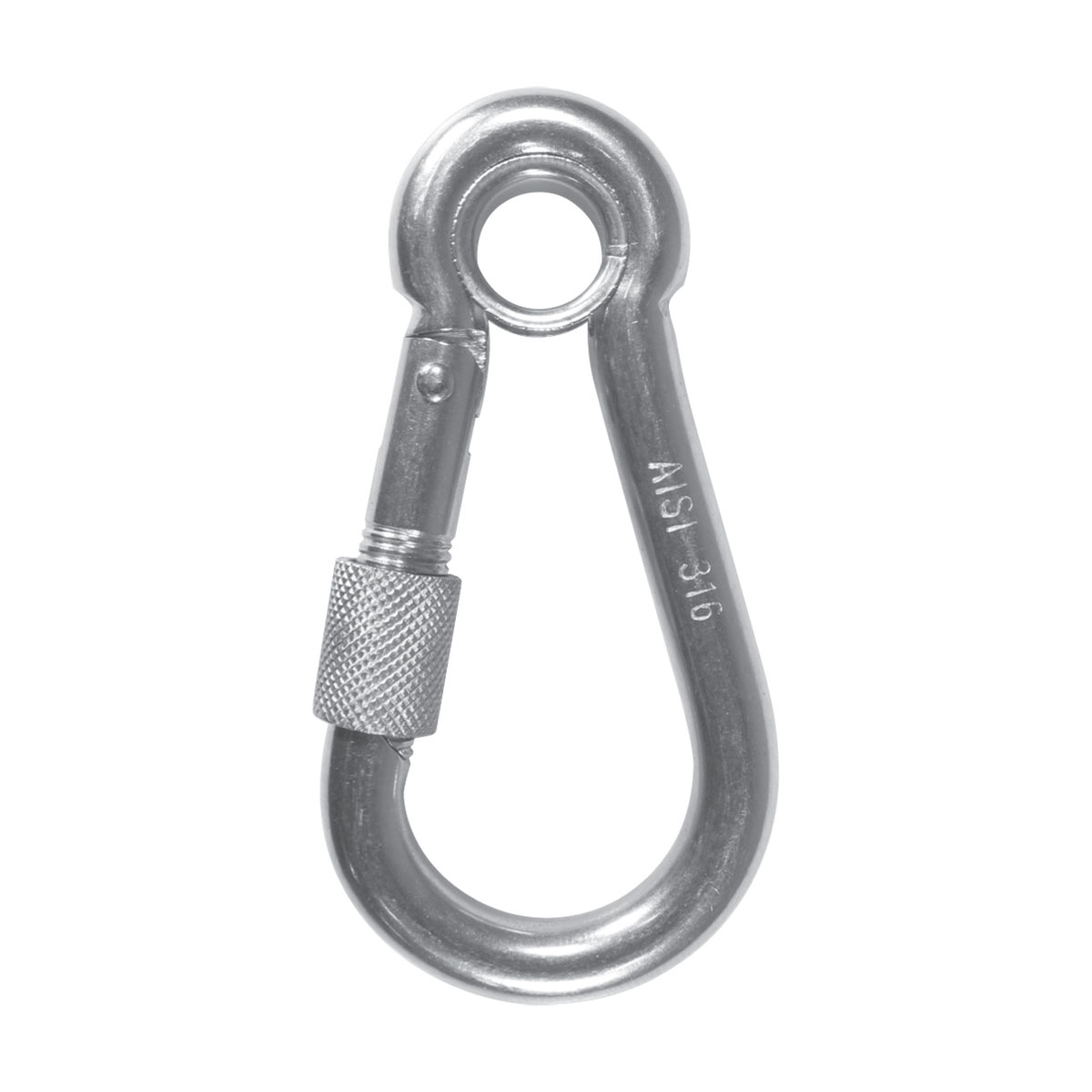

316 grade stainless steel carbine hooks. Inward opening. Spring loaded opening gate. Threaded locking sleeve. Ferrule eye fitted.
|
BLA CODE
|
PACK QTY
|
LENGTH MM
|
ROD DIA. MM
|
MAX. OPENING MM
|
DEFORMS AT KG
|
|---|---|---|---|---|---|
BLA-164024 |
1 | 60 | 6 | 8 | 450 |
BLA-164024P |
1 | 60 | 6 | 8 | 450 |
BLA-164026 |
1 | 80 | 8 | 9 | 720 |
BLA-164026P |
1 | 80 | 8 | 9 | 720 |
BLA-164028 |
1 | 100 | 10 | 12 | 1090 |
BLA-164032 |
1 | 140 | 12 | 18 | 1460 |
‘P’ – Denotes packaged item
| Length | 60mm, 80mm, 100mm, 140mm |
|---|---|
| Pack | 1, 1 Packed |
Galvanised for general applications. Screw collared pin with hole for security tie wire. Not rated for lifting purposes.
|
BLA CODE
|
QTY
|
PIN DIA. MM
|
PIN DIA. IN
|
|---|---|---|---|
BLA-143002 |
1 | 5 | 3/16 |
BLA-143002B10 |
10 | 5 | 3/16 |
BLA-143002B50 |
50 | 5 | 3/16 |
BLA-143002B |
200 | 5 | 3/16 |
BLA-143004 |
1 | 6 | 1/4 |
BLA-143004P2 |
2 | 6 | 1/4 |
| BLA-143004B10 |
10 | 6 | 1/4 |
| BLA-143004B50 |
50 | 6 | 1/4 |
| BLA-143004B |
200 | 6 | 1/4 |
| BLA-143006 |
1 | 8 | 5/16 |
| BLA-143006P2 |
2 | 8 | 5/16 |
| BLA-143006B10 |
10 | 8 | 5/16 |
| BLA-143006B50 |
50 | 8 | 5/16 |
| BLA-143006B |
200 | 8 | 5/16 |
| BLA-143008 |
1 | 10 | 3/8 |
BLA-143008P |
1 | 10 | 3/8 |
| BLA-143008B10 |
10 | 10 | 3/8 |
| BLA-143008B50 |
50 | 10 | 3/8 |
| BLA-143008B |
200 | 10 | 3/8 |
316 grade stainless steel ‘D’ shackle. Screw in pin with countersunk slotted head.
|
BLA CODE
|
PACK QTY
|
PIN. DIA MM
|
A MM
|
B MM
|
BREAKING LOAD KG
|
|---|---|---|---|---|---|
BLA-161032 |
1 | 4 | 14 | 8 | 550 |
BLA-161032P |
1 | 4 | 14 | 8 | 550 |
BLA-161036 |
1 | 5 | 18 | 10 | 1000 |
BLA-161036P |
1 | 5 | 18 | 10 | 1000 |
BLA-161038 |
1 | 6 | 21 | 12 | 1700 |
BLA-161040 |
1 | 8 | 28 | 16 | 2000 |
BLA-161042 |
1 | 10 | 35 | 20 | 2500 |
‘D’ shackles are important linking equipment for rigging, chains and anchoring.
Galvanised for durability.
| PART NUMBER | PIN DIAMETER | INTERNAL LENGTH (A) | INTERNAL WIDTH (B) |
|---|---|---|---|
| SAW-110010 | 5mm | 20.0mm | 10.1mm |
| SAW-110012 | 6mm | 22.4mm | 12.9mm |
| SAW-110014 | 8mm | 31.1mm | 16.3mm |
| SAW-110016 | 10mm | 35.4mm | 19.6mm |
| SAW-110018 | 12mm | 46.2mm | 26.6mm |
| SAW-110020 | 16mm | 58.1mm | 32.7mm |
| SAW-110022 | 19mm | 72.9mm | 38.1mm |
| SAW-110024 | 22mm | 86.0mm | 45.1mm |
| SAW-110026 | 25mm | 91.6mm | 51.0mm |
• AS2741 Standard.
• Configuration with screw pin hot dipped galvanised.
• Marked with load limit in tonnes, grade ‘S’ batch.
• Number, nominal size in millimetre and supplier identification.
• Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.
• Test certificates are available upon request.
• Suitable for lifting applications.
• GP – QLD Transport Approved.
| PART NUMBER | PIN DIAMETER | BODY DIAMETER (∅) | INTERNAL LENGTH (A) | OPENING WIDTH (B) | INTERNAL WIDTH (C) | WORKING LOAD LIMIT | |
SAW-130024 |
10mm | 8mm | 31.0mm | 13.0mm | 21.0mm | 750kg | |
| SAW-130024-10 | 10mm | 8mm | 31.0mm | 13.0mm | 21.0mm | 750kg | |
SAW-130026 |
11mm | 10mm | 35.0mm | 16.0mm | 26.0mm | 1T | |
| SAW-130026-10 | 11mm | 10mm | 35.0mm | 16.0mm | 26.0mm | 1T | |
SAW-130028 |
13mm | 11mm | 43.0mm | 18.0mm | 28.0mm | 1.5T | |
| SAW-130028-10 | 13mm | 11mm | 43.0mm | 18.0mm | 28.0mm | 1.5T | |
SAW-130030 |
16mm | 13mm | 48.0mm | 20.0mm | 29.0mm | 2T | |
| SAW-130030-10 | 16mm | 13mm | 48.0mm | 20.0mm | 29.0mm | 2T | |
SAW-130032 |
19mm | 16mm | 60.0mm | 26.0mm | 43.0mm | 3.2T | |
| SAW-130032-10 | 19mm | 16mm | 60.0mm | 26.0mm | 43.0mm | 3.2T | |
| SAW-130034 | 22mm | 19mm | 71.0mm | 32.0mm | 51.0mm | 4700kg | |
SAW-130036 |
25mm | 22mm | 84.0mm | 36.0mm | 58.0mm | 6500kg | |
SAW-130037 |
29mm | 25mm | 95.0mm | 43.0mm | 68.0mm | 8.5T | |
SAW-130038 |
32mm | 29mm | 108.0mm | 46.0mm | 74.0mm | 9.5T | |
SAW-130039 |
35mm | 32mm | 119.0mm | 52.0mm | 83.0mm | 12T | |
SAW-130042 |
51mm | 44mm | 178.0mm | 73.0mm | 127.0mm | 25T |
Note: Pin colours may vary.
