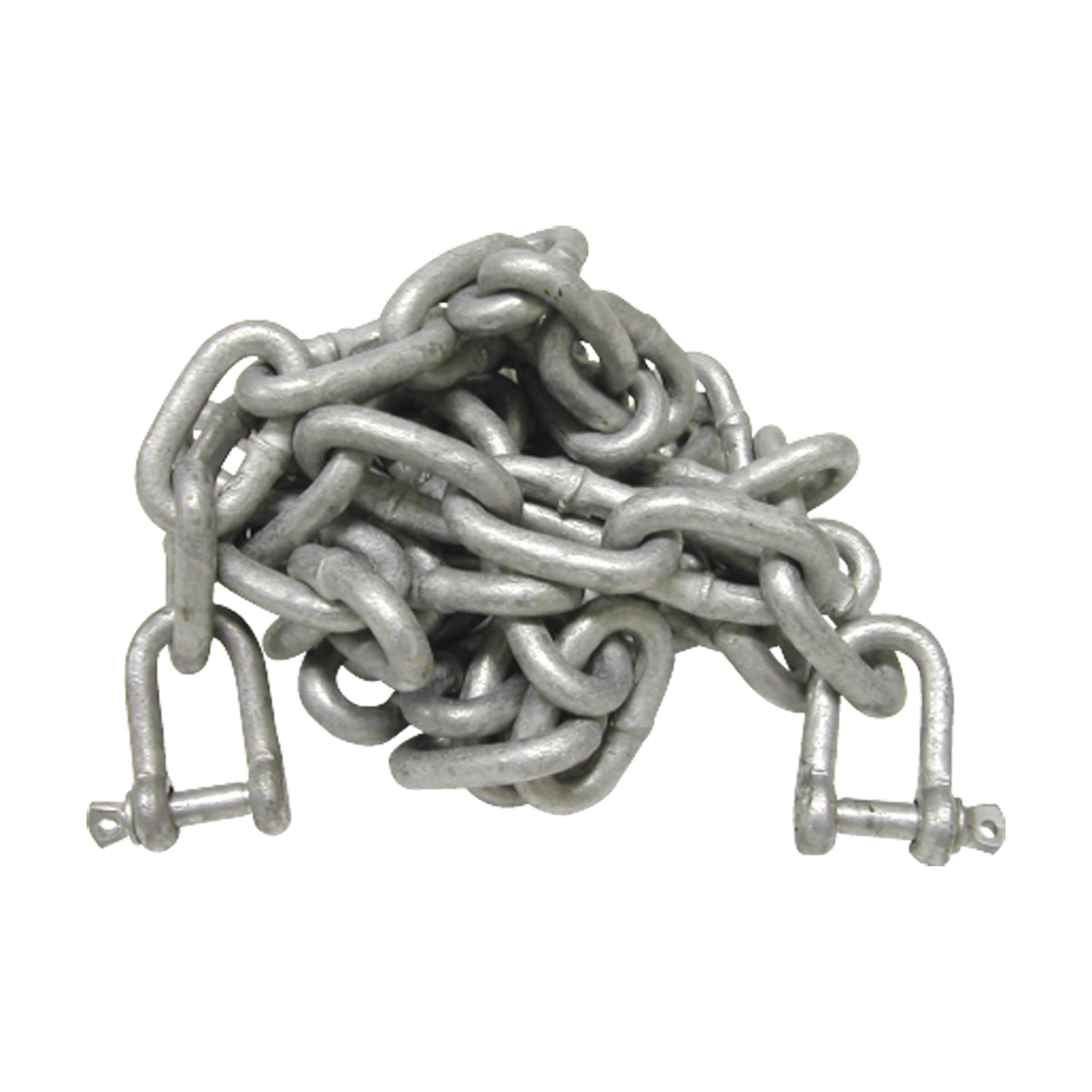

BLA Anchor Chain with Shackles – Galvanised
Pre-cut lengths of general link galvanised chain supplied with two galvanised ‘D’ shackles.
$26.90 – $89.90Price range: $26.90 through $89.90
Pre-cut lengths of general link galvanised chain supplied with two galvanised ‘D’ shackles.
|
BLA CODE
|
CHAIN DIA.MM
|
CHAIN LENGTH M
|
SHACKLE DIA. MM
|
|---|---|---|---|
144992![]() |
6 | 3 | 6 |
144993![]() |
8 | 3 | 8 |
144994![]() |
6 | 4 | 6 |
144995![]() |
8 | 4 | 8 |
144996![]() |
6 | 2 | 6 |
144998![]() |
8 | 2 | 8 |
| Weight | 10 kg |
|---|---|
| Chain Diameter | 6mm, 8mm |
| Chain Length | 3, 4, 2 |
Traditionally styled heavy duty 316G polished stainless steel bollards to suit most size boats.
| PART NUMBER | BASE DIMENSIONS | WIDTH | HEIGHT | MOUNTING HOLES |
|---|---|---|---|---|
SAW-29098![]() |
60mm x 60mm | 90mm | 90mm | 6mm |
SAW-29099![]() |
76mm x 76mm | 110mm | 115mm | 8mm |
SAW-29096![]() |
140mm x 185mm | 140mm | 155mm | 10mm |
Highly Polished 316G stainless steel cleats with a high-polished finish.
Superior design.
| PART NUMBER | LENGTH | WIDTH | HEIGHT | HOLE CENTRES | FASTENING HOLES |
|---|---|---|---|---|---|
SAW-56760![]() |
150mm | 25mm | 28mm | 52mm x 42mm | 6mm |
SAW-56762![]() |
200mm | 25mm | 35mm | 55mm x 42mm | 6mm |
SAW-56764![]() |
240mm | 27mm | 40mm | 55mm x 44mm | 6mm |
Used in conjunction with existing anchoring tackle, the stainless steel ring fits around the anchor rode for deep water anchoring. Motoring forward at 5 to 6 knots lifts the anchor to the float ring. When the anchor chain has fully passed through the ring the anchor is held at the surface. This allows easy retrieval of the anchor rode without the continuous weight of ground tackle.
|
BLA CODE
|
FLOAT DIA.MM
|
RING DIA. MM
|
|---|---|---|
144301![]() |
250 | 125 |
| 144302 | 300 | 125 |
BLA Sand Anchor – GalvanisedThe most popular of all anchors. Suitable for use in mud or sand. Fitted with retrieval eye for ease of removal if snagged. Stows flat. Heavy duty hot dipped galvanised finish. Anchor size refers to approximate weight in pounds.
|
BLA CODE
|
SIZE
|
WEIGHT APPROX KG
|
APPROX. BOAT LENGTH M
|
A MM
|
B MM
|
C MM
|
D MM
|
|---|---|---|---|---|---|---|---|
| 146042 | 3S | 1.8 | 2 | 280 | 375 | 96 | 7 |
| 146044 | 4S | 2.7 | 3 | 320 | 500 | 110 | 12 |
| 146046 | 6S | 2.7 | 4 | 335 | 480 | 125 | 12 |
| 146048 | 8S | 3.6 | 5 | 355 | 495 | 130 | 14 |
| 146050 | 10S | 4.5 | 6 | 360 | 495 | 130 | 14 |
| 146052 | 13S | 5.9 | 7 | 415 | 555 | 130 | 14 |
| 146054 | 16S | 7.3 | 8 | 420 | 590 | 135 | 14 |
| 146060 | 22S | 10 | 9 | 490 | 700 | 130 | – |
| 146062 | 27S | 12.3 | 11 | 510 | 715 | 175 | – |
| 146064 | 35S | 15.9 | 13 | 550 | 800 | 185 | – |
| 146066 | 45S | 20.4 | 14 | 590 | 850 | 205 | – |
| 146070 | 60S | 27.2 | 15 | 660 | 880 | 210 | – |
| 146072 | 80S | 36.3 | 16 | 740 | 995 | 215 | – |
| 146074 | 100S | 45 | 17 | 755 | 1010 | 250 | – |
