$66.13

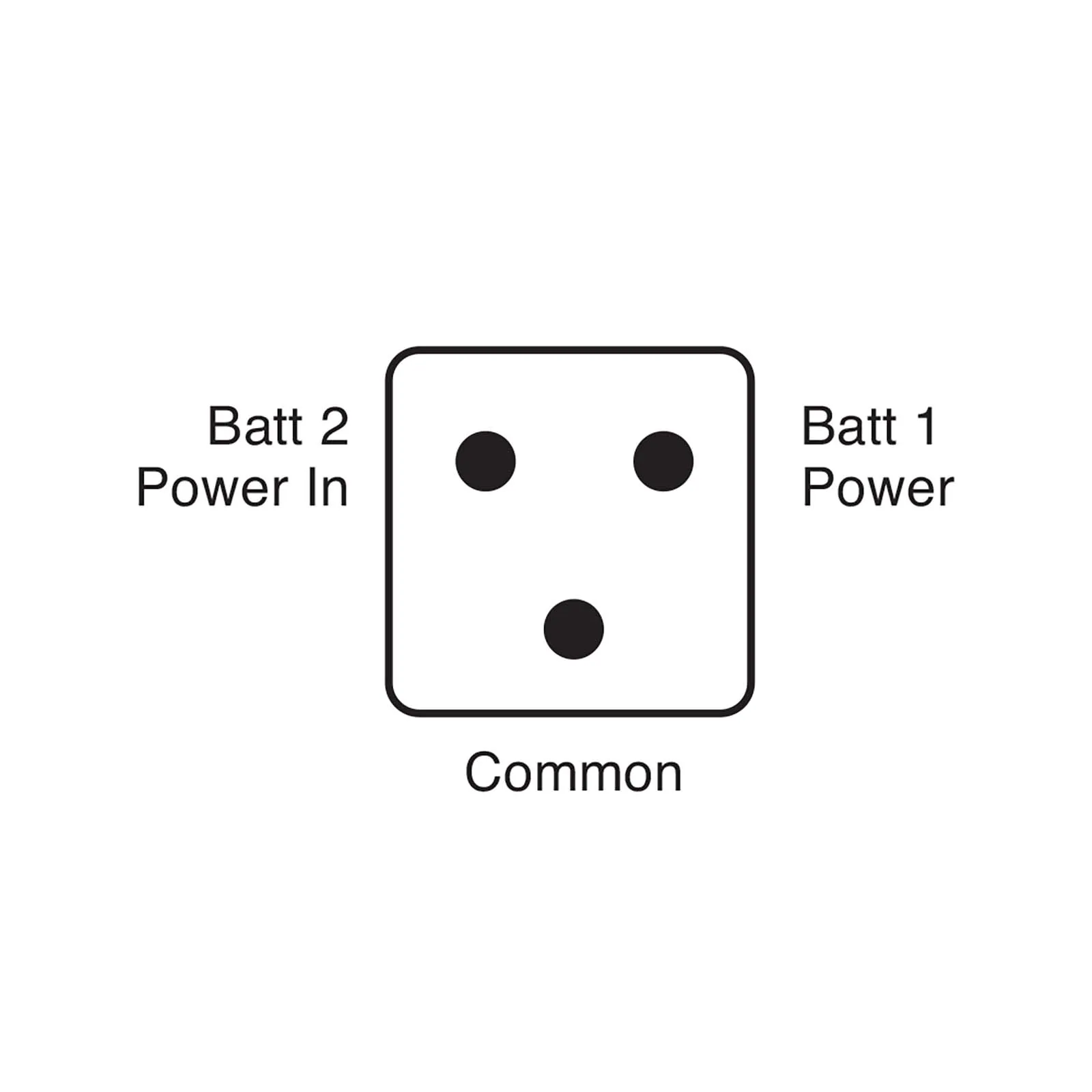

Battery isolator switch with four operational settings, OFF, Battery 1, Both Batteries and Battery 2. Provides selectable battery bank charging or complete OFF. For marine applications up to 48VDC. Includes stainless steel hardware.
Specifications; 1500A at 12V for 10 seconds, 750A at 24V for 10 seconds, 300A at 12V continuous load maximum, 150A at 24V continuous load maximum.
Stainless Steel Cigarette Lighter 12V Power Socket with Indicator Light (53022)
• Marine grade stainless steel.
• Indicator Light.
Features:
Part No.53022
Description: Stainless Steel Cigarette Lighter Set
Volts: 12
Battery Boxes – Extra Large (23665)
• Vented battery box made from hi-density reinforced polyethylene which is impervious to battery acids.
• Moulded carry handle.
• Moulded lid to provide easy cable setup.
• Includes webbing strap and stainless steel fastenings.
Features:
Part No.: 23665
Description: Extra Large Battery Box
Outer Diamensions (mm): 450 x 215 x 225
Inside Dimensions (WxH) mm: 385 x 180 x 195
Marinco® BEP ‘Contour’ Circuit Breaker Panels – No Meters (113144)
Features:
BLA Code: 113144
Circuits: 8
Overall Size wxh mm: 239×115
Cut Out Size wxh mm: 219×95
Intrusion mm: 65
Mount Screws Gauge: 6 r/h
Power Volt: 12-24
Label Sheet: 1
Circuit Breakers:
5 amp – 2
10 amp – 2
15 amp – 3
20 amp – 1
