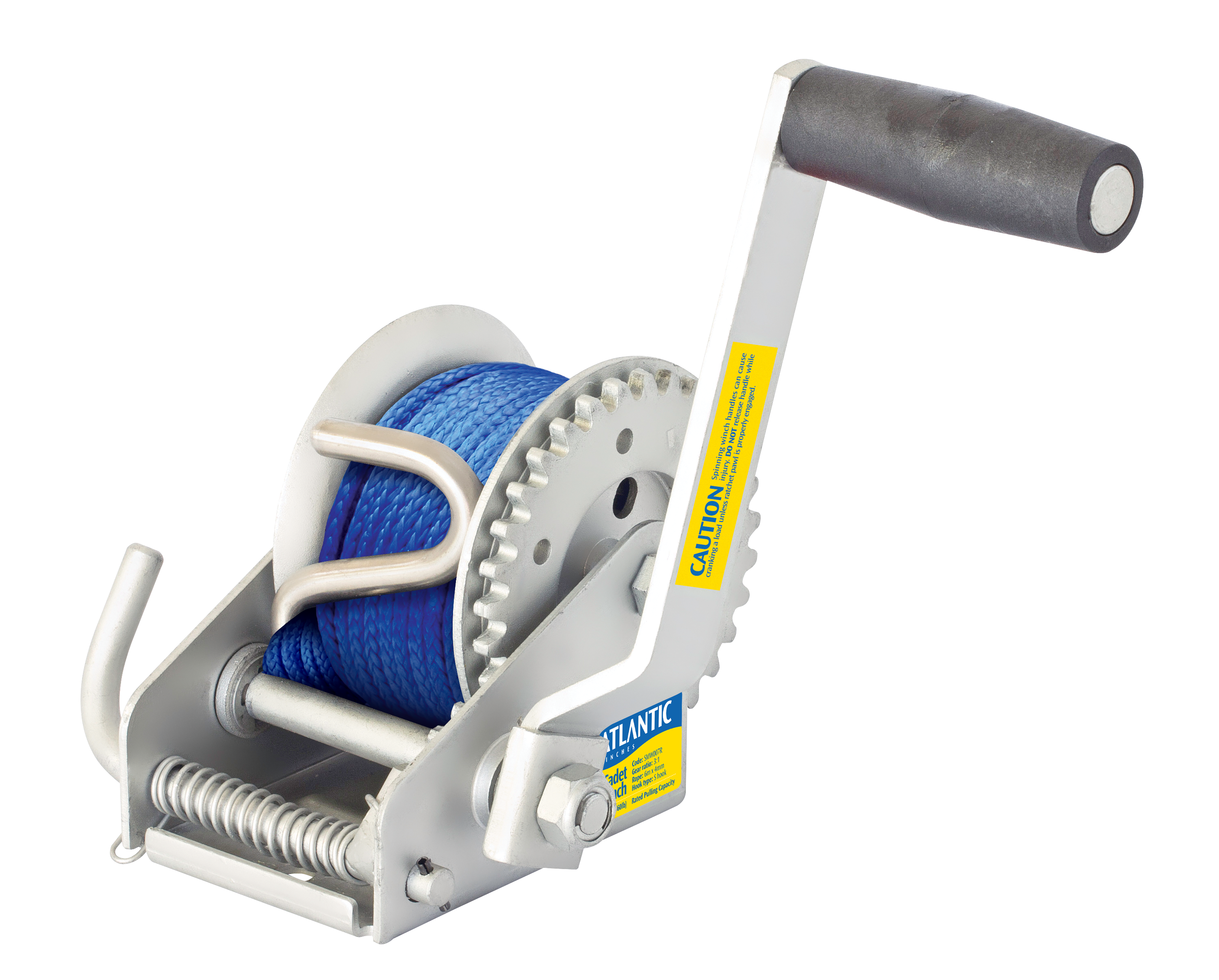

Quality heavy duty manual boat trailer winch with 300kg pulling capacity. Suitable for a wide range of uses including jet skis, light tinnies up to 14 feet and general winch applications.
This boat trailer accessory features heavy duty body with corrosion resistant finish and common mounting holes. 3:1 gear ratio with 4mm x 6 metres of low stretch Dyneema rope and stainless steel S hook.
| Weight | 2.4 kg |
|---|
Heavy duty pressed 304G stainless steel bow rollers with 50mm black nylon poly rollers. 29435 – Quick release captive pin retains rope or chain on rollers.
| PART NUMBER | DESCRIPTION | LENGTH | WIDTH |
|---|---|---|---|
SAW-29435 |
Bow roller G304 SS 230mm with pin | 195mm | 55mm |
| SAW-29436 |
Bow roller G304 SS 230mm with pin | 230mm | 55mm |
Cast Alloy Dock Cleat.
| PART NUMBER | HOLE CENTRES | MOUNT SCREWS | L X W X H |
|---|---|---|---|
SAW-293720  |
105mm | 12mm c/s | 285mm x 45mm x 70mm |
Cast Alloy Heavy Duty Dock Cleat.
| PART NUMBER | HOLE CENTRES | MOUNT SCREWS | L X W X H |
|---|---|---|---|
SAW-293721 |
125mm | 14mm c/s | 340mm x 72mm x 80mm |
Heavy duty 316G stainless steel cross bollards with a centre split for securing anchor chain into the bollard.
In addition, this cross bollard features a captive spring pin for locking in general link chain.
| PART NUMBER | BASE DIMENSIONS | WIDTH | HEIGHT | CHAIN LINK SIZE | MOUNTING HOLES |
|---|---|---|---|---|---|
SAW-29100 |
62mm x 62mm | 122mm | 84mm | 8-10mm Long Link | 4 x 7mm holes with 41mm centres |
| SAW-29102 |
86mm x 86mm | 140mm | 115mm | 10-13mm | 4 x 8mm holes with 57mm centres |
