XSONIC AIRMAR B744V TRIDUCER® Multisensor/CW Thru-hull Transducer

XSONIC AIRMAR B744V TRIDUCER® Multisensor/CW Thru-hull TransducerXSONIC AIRMAR B744V TRIDUCER® Multisensor/CW Thru-hull TransducerXSONIC AIRMAR B744V TRIDUCER® Multisensor/CW Thru-hull Transducer

$886.98

Free shipping over $50

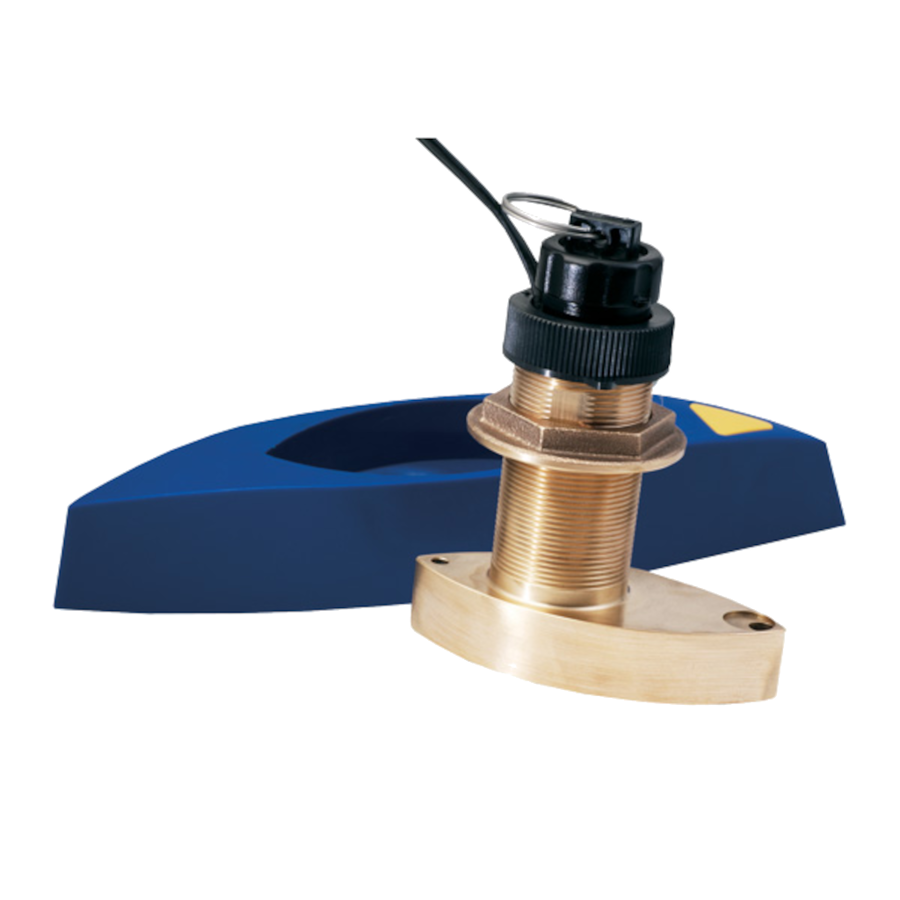

AIRMAR B744V TRIDUCER® Multisensor/CW Thru-hull Transducer

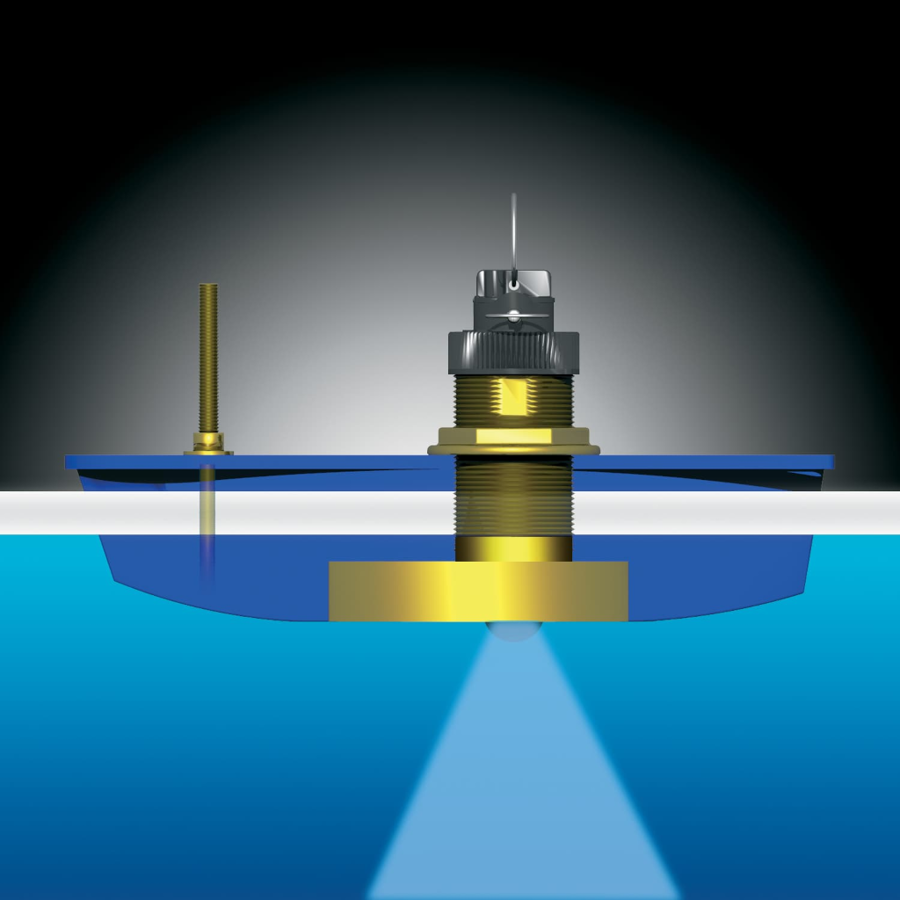

The B744V is a TRIDUCER® Multisensor featuring depth, speed, and temperature in a single housing. The 50/200 kHz, dual-frequency, single, ceramic element provides great target detail in shallow water at 200 kHz and good deep-water bottom tracking at 50 kHz. It is also available with a longer stem (B744VL) that may be needed for steep-deadrise vessels or thick cored-fiberglass or wood hulls. The required High-performance Fairing gives excellent results at speeds up to 30 knots (34 MPH).

Features:

  • Depth, speed, and fast-response water-temperature sensing in one housing
  • 600 W of power
  • Dual-frequency element:
    • 50 kHz with a wide 45° beamwidth for depth performance to 353 m (1200')
    • 200 kHz with a 12° beamwidth for depth performance to 206 m (700')
  • Bronze housing with a High-performance Fairing for optimal bottom tracking at higher speeds
  • Self-closing water valve reduces water flow into the hull when the paddlewheel insert is being replaced with the blanking plug
  • Fins on sides of paddlewheel cavity improve accuracy in cross-flow conditions

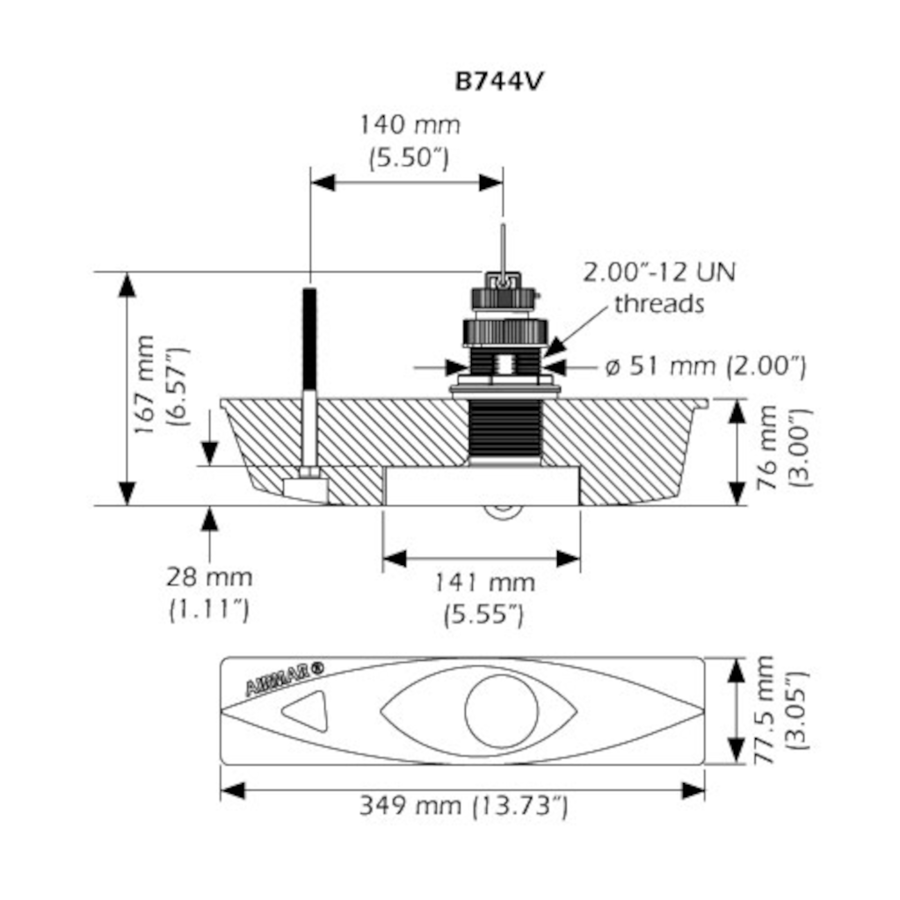

  • The extra-length housing (B744VL) allows mounting in thicker and/or high-deadrise hull

View Brochure

View Installation Instructions
