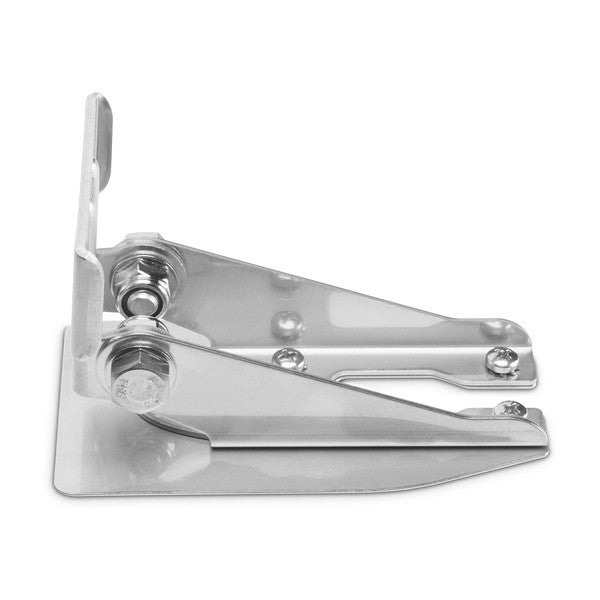

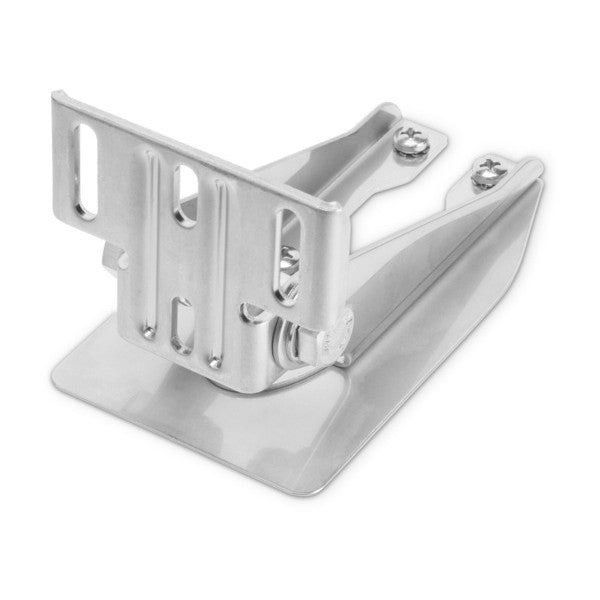

Garmin Heavy Duty Stainless Steel Transducer Bracket with inbuilt Spray Shield (Part No. 010-12006-11)

Garmin Heavy Duty Stainless Steel Transducer Bracket with inbuilt Spray Shield (Part No. 010-12006-11)Garmin Heavy Duty Stainless Steel Transducer Bracket with inbuilt Spray Shield (Part No. 010-12006-11)

$39.99

Free shipping over $50

Garmin Heavy Duty Stainless Steel Transducer Bracket with inbuilt Spray Shield (Part No. 010-12006-11)

Easily attach the Heavy Duty Stainless Steel Spray bracket as a replacement for a broken bracket or an upgrade with a built in Spray Shield to deflect spray which flies off the face of transducer.

The Garmin spray shield feature is designed to reduce excess water spray from transducers when the vessel is running at high speeds. Can be retro fitted to a wide range of common Garmin transom mounted transducers. The Heavy Duty Bracket simply replaces the fitted between current bracket and includes the inbuilt spray shield.

Easily attach your compatible 4-, 8- or 12-pin transducer to the transom of your boat with this mount that provides excellent sonar returns at all speeds. Since the transducer is in the water at all times, the mount does not protect the transducer from underwater obstructions and some drag on the boat will occur. The included transducer spray shield reduces excessive water spray from your compatible transducer when your boat is running at high speeds.

You also can mount the transducer to the step of your boat with this mount to allow angle adjustment of the transducer so it is parallel with the water surface; this will create no drag on the boat. And since the transducer is out of the water with this mounting style, sonar will not track bottom when the boat is on plane.

COMPATABLE UNITS & TRANSDUCERS: * echoMAP™ 45dv * echoMAP™ 55dv * echoMAP™ 75dv * echoMAP™ 75sv * echoMAP™ 95sv * echoMAP™ CHIRP 45dv * echoMAP™ CHIRP 55dv * echoMAP™ CHIRP 75dv * echoMAP™ CHIRP 75sv * echoMAP™ CHIRP 95sv * Garmin GT20-TM – Transom Mount DownVü 500 W (CHIRP 455/800 kHz) Traditional 500 W (77/200 kHz) Transducer with Temp (8-pin) * Garmin GT21-TM – Transom Mount DownVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (50/200 kHz) Transducer with Temp (8-pin) *Â Garmin GT30-TM – Transom Mount DownVü/SideVü 500 W (CHIRP 455/800 kHz) Scanning Transducer with Temp (12-pin) *Â Garmin GT40-TM – Transom Mount DownVü/SideVü 500 W (CHIRP 455/800 kHz) Traditional 500 W (77/200 kHz) Transducer with Temp (12-pin) *Â Garmin GT41-TM – Transom Mount DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (50/200 kHz) Transducer with Temp (12-pin) *Â Garmin GT50M-TM – Transom Mount DownVü/SideVü 500 W (CHIRP 455/800 kHz) Traditional 300 W (Mid-band CHIRP 80-160 kHz) Transducer with Temp (12-pin) *Â Garmin GT51M-TM – Transom Mount DownVü/SideVü 500 W (CHIRP 260/455 kHz) Traditional 600 W (Mid-band CHIRP 80-160 kHz) Transducer with Temp (12-Pin) *Specifications from suppliers”™ information.

This policy sets out details of delivery for your online purchases. If you require clarification or have any questions please contact our Boating Parts & Accessories Team on (07)32658016.

We deliver to most addresses within mainland Australia & Tasmania, for delivery to remote territories & internationally please contact us to arrange a quote prior to making a purchase. We normally require a street address for delivery – though if it is something small a PO Box is normally acceptable (e.g. sounder/GPS unit. If you are unsure please contact us). Unfortunately, some remote locations in Australia cannot be serviced, however Northside Marine’s carrier may be able to deliver to a local depot where you can collect your products. If you live in a remote area not regularly serviced by Australia Post please contact us to see what we can do for you. Delivery Information.

At Northside Marine we appreciate that you may have second thoughts about your purchases and will give a ‘Change of Mind’ exchange/refund if goods* are returned within 7 days. For ‘Change of Mind’ purchases, goods can only be accepted back for refund or exchange in “as sold” condition including: undamaged original packaging, complete instruction books, manuals, accessories, etc. If freight expenses of any type have been incurred, these are not refundable. Return freight to us must be covered by the customer. Prior to return of products the client must first notify us to obtain approval. Your Sales Docket must accompany all returns.

At our discretion ‘Change of Mind’ exchange/refunds may be subject to a rehandling charge.

Please Note: ‘Change of Mind’ exchange/refunds do not apply to purchase of specially ordered products, dated products (e.g. flares, EPIRB’s, fire extinguishers), outboard parts, sterndrive parts, books, light globes, batteries, aerosols, chemicals, paints, headphones, some tools, dangerous goods, products which are subject to health regulations including portable toilets, and items purchased by the metre such as wire, rope and carpet.
