RAM Mounts Drill-Down Double Ball Mount for Humminbird Helix 9, 10, and 12

RAM Mounts Drill-Down Double Ball Mount for Humminbird Helix 9, 10, and 12RAM Mounts Drill-Down Double Ball Mount for Humminbird Helix 9, 10, and 12RAM Mounts Drill-Down Double Ball Mount for Humminbird Helix 9, 10, and 12RAM Mounts Drill-Down Double Ball Mount for Humminbird Helix 9, 10, and 12RAM Mounts Drill-Down Double Ball Mount for Humminbird Helix 9, 10, and 12RAM Mounts Drill-Down Double Ball Mount for Humminbird Helix 9, 10, and 12RAM Mounts Drill-Down Double Ball Mount for Humminbird Helix 9, 10, and 12RAM Mounts Drill-Down Double Ball Mount for Humminbird Helix 9, 10, and 12

$319.90

Free shipping over $50

RAM Mounts Drill-Down Double Ball Mount for Humminbird Helix 9, 10, and 12

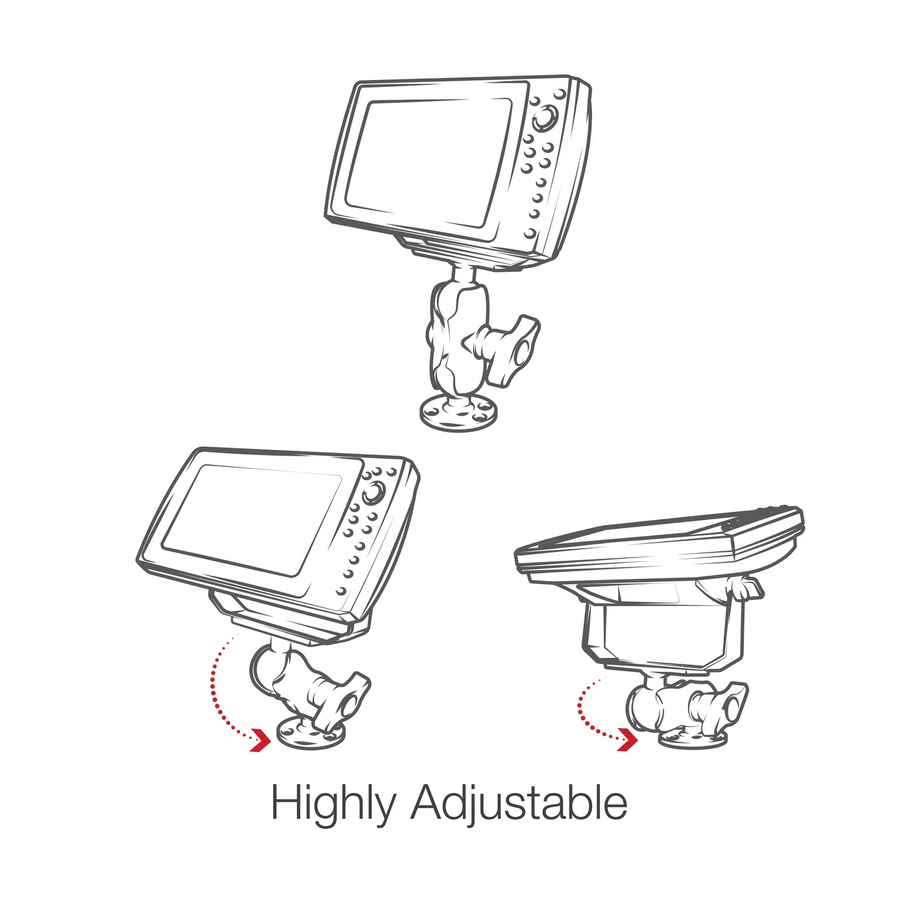

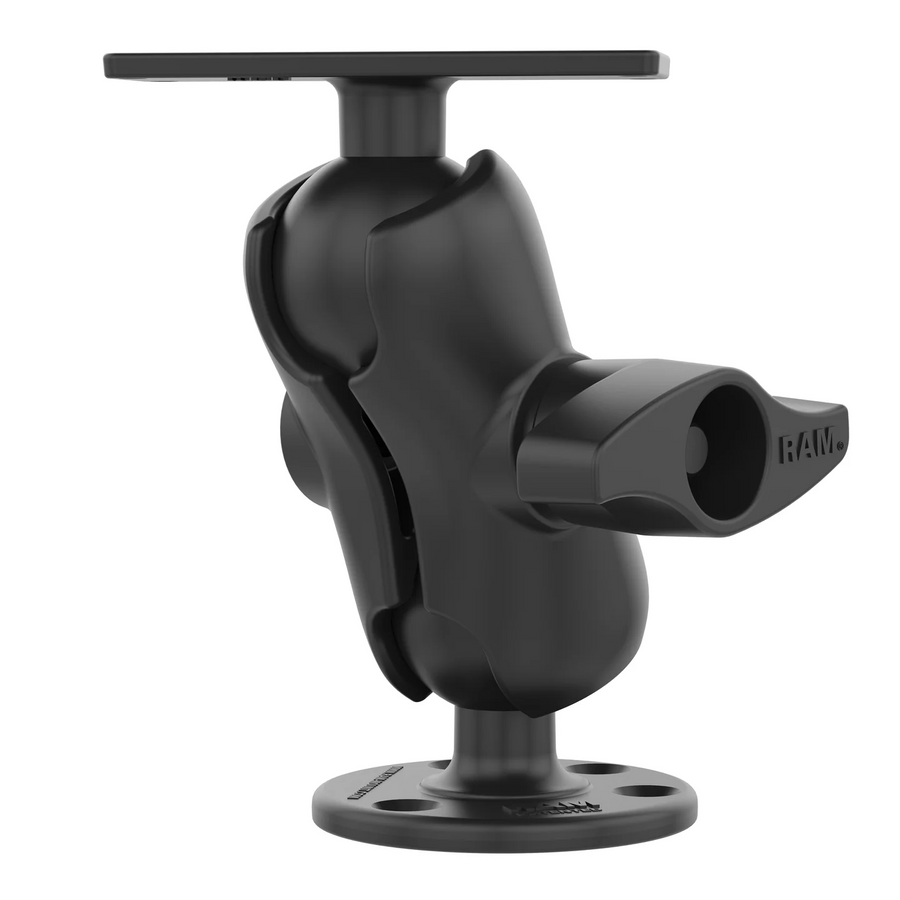

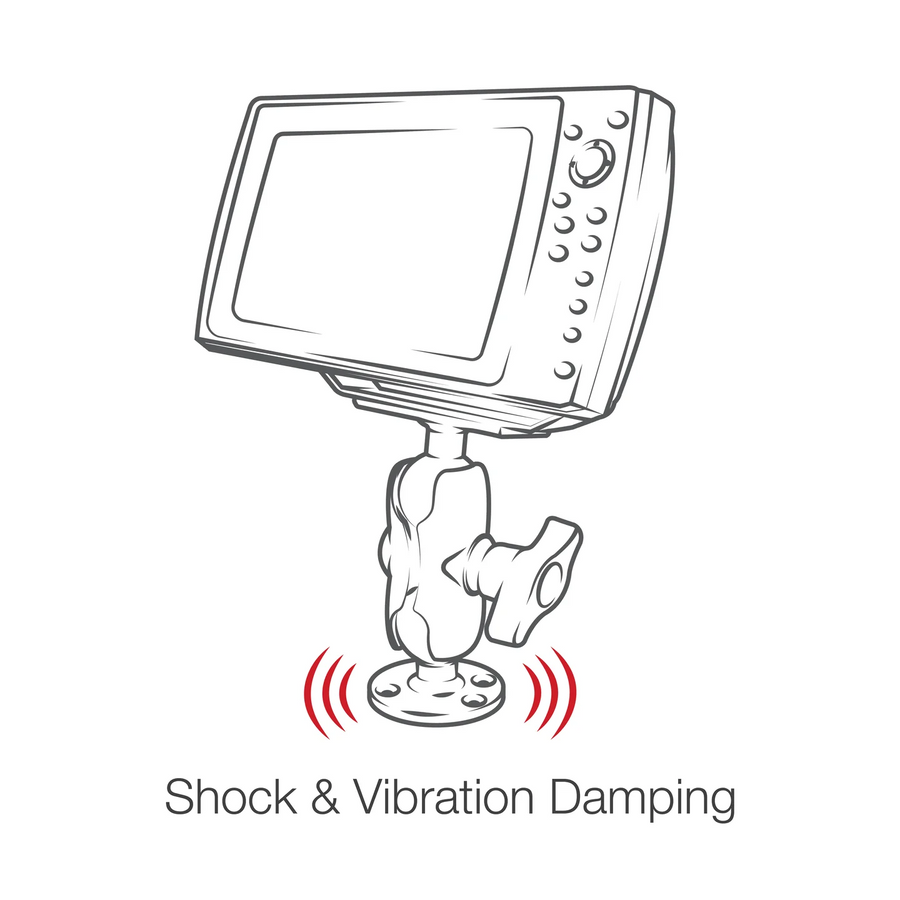

This powder-coated, marine-grade aluminium RAM Mounts Drill-Down Double Ball Mount for Humminbird Helix 9, 10, and 12 consists of a short length double socket arm, a 3.68" diameter round base with a 2.25" D size ball, and one 1.5" x 4.5" rectangular plate with a 2.25" D size ball. The round plate contains two mounting holes at 180-degrees and three mounting holes at 120-degrees. The 1.5" x 4.5" rectangular plate contains a 4-hole pattern compatible with Humminbird 8, 9 & 10 models. The rubber ball and socket technology provides shock and vibration damping and allows for near-infinite adjustability so you can position your device at the perfect viewing angle.

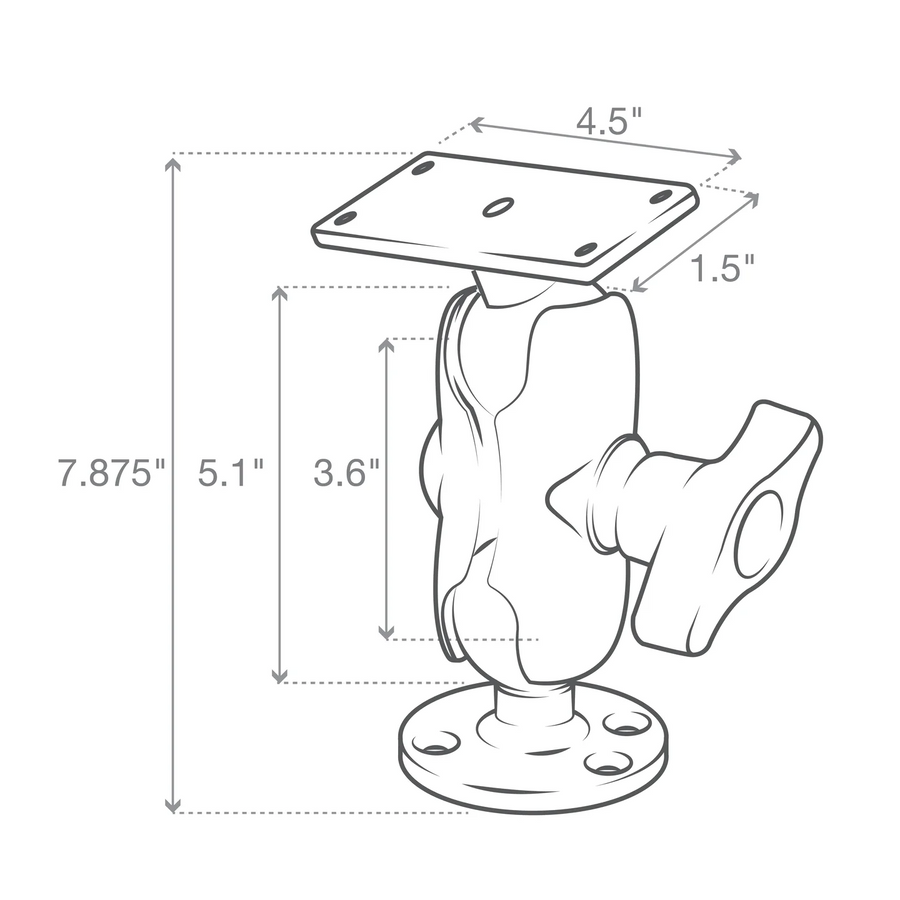

Product Dimensions Overall Height: 7.875"
Socket to Socket Length 3.6"
Hole Pattern Rectangular Plate: 1.5" x 4.5" Round Plate: See Drawing Rectangular Plate: 1.5" x 3.5"
Plate Size Top Plate: 2" x 5" Bottom Plate: 3.68" Diameter
Ball Size D Size (2.25")
Weight Capacity Standard Use: 6 lbs Heavy-Duty Use: 5 lbs
Materials Marine-grade aluminium
Packaging Type Poly Bag
Weight 3.0 lb
Additional Information For Humminbird devices greater than 10" including Helix, Solix & Apex, the version of this mount with RAM Mounts Hi-Torq™ wrench is recommended for extra support.

FEATURES

  • Complete flat surface, drill-down mounting solution for the Humminbird Helix 8, 9, & 10; RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Includes a 3.68" round base with D size 2.25" rubber ball, short length D size double socket arm, and a 1.5" x 4.5" rectangle base with D size 2.25" rubber ball that connects to your Humminbird Helix marine electronic
  • Made of Powder-coated, marine-grade aluminium for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty
