Lowrance Outboard Pilot Cable-Steer Pack

Lowrance Outboard Pilot Cable-Steer PackLowrance Outboard Pilot Cable-Steer PackLowrance Outboard Pilot Cable-Steer PackLowrance Outboard Pilot Cable-Steer Pack

$2,139.00

Free shipping over $50

Lowrance Outboard Pilot Cable-Steer Pack

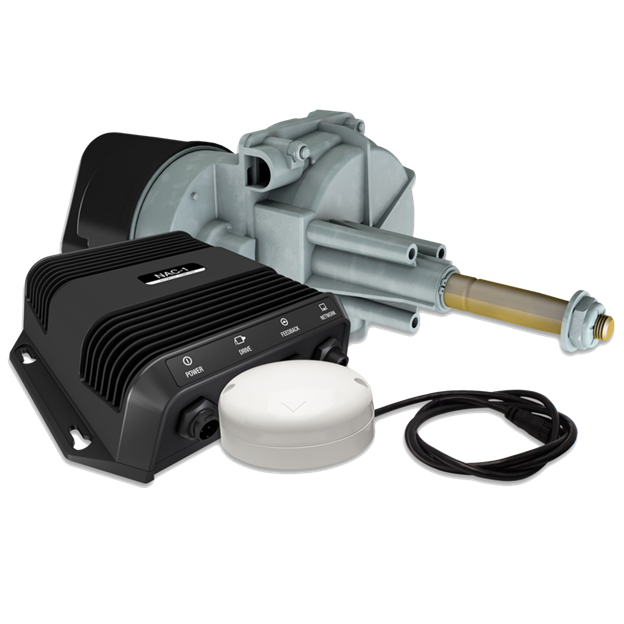

Outboard Pilot is an HDS Autopilot add-on system designed for boats up to 30ft with a single outboard motor. The system comes with everything you need to fit an Autopilot to a cable steer outboard motor, including Point-1 AP Heading/GPS Sensor, NAC-1 Autopilot computer, HELM-1 cable-steer drive unit, Standby-Auto button and Micro-C network components.

Key Features

  • Steer your outboard motor to a heading, waypoint, route or cursor, with control from your Multifunction Display
  • Lowrance SmartSteer™ interface provides control of both your cable-steer outboard motor, as well as the MotorGuide Xi5 Pinpoint electric-steer trolling motor.
  • ”œOne-touch”� route creation from saved trails.

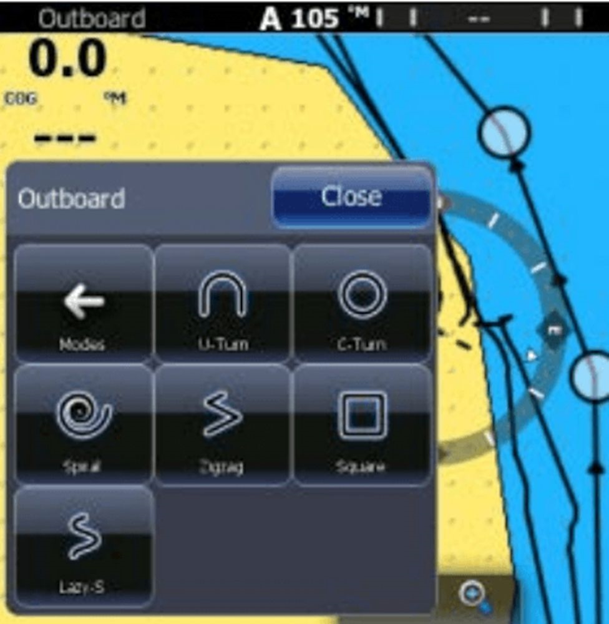

  • Repeat your path with automatic turn patterns.
  • Recommended for single-outboard setups, on boats that are 30 feet and less, in length.
  • VRF (Virtual Rudder Feedback) – simplifies pilot installation -- eliminating the need for a rudder position sensor.
  • Easy setup – straightforward guide steps you through first-time install.
  • Easy-to-install, plug-and-socket connection – with no complex terminal wiring.
  • Supported by Lowrance Advantage Service program
  • Lowrance Outboard Pilot Cable-Steer Pack replaces the manual helm-drive unit.
  • Morse 290, Morse 304411 and Teleflex SSC52 cable compatibility
  • Helm-1 is only compatible with the NAC-1.Helm-1 includes variable-voltage feedback interface

What's in the box?

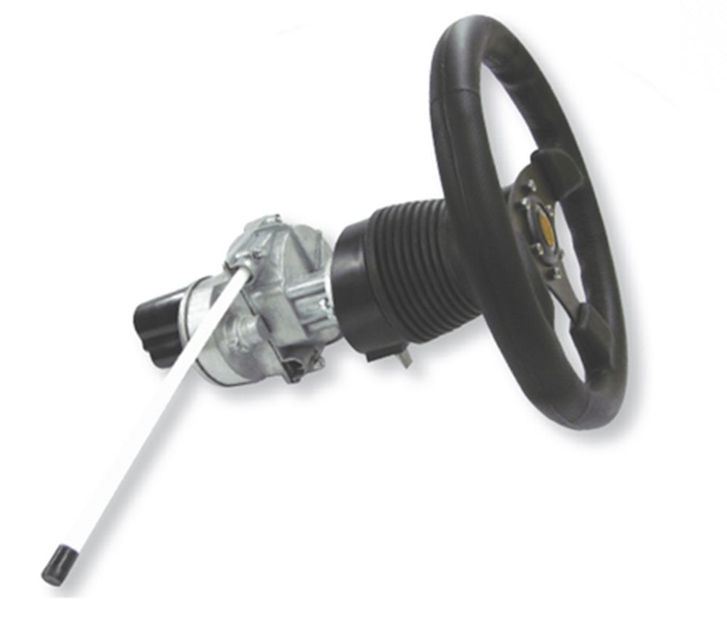

  • HELM-1 Drive Unit
  • Point-1 Autopilot GPS/Heading Antenna
  • NMEA 2000 Micro-C Low Loss 4 Way Joiner
  • TR-120-KIT Network Terminator Kit
  • NMEA 2000 6ft Network Extension Cable

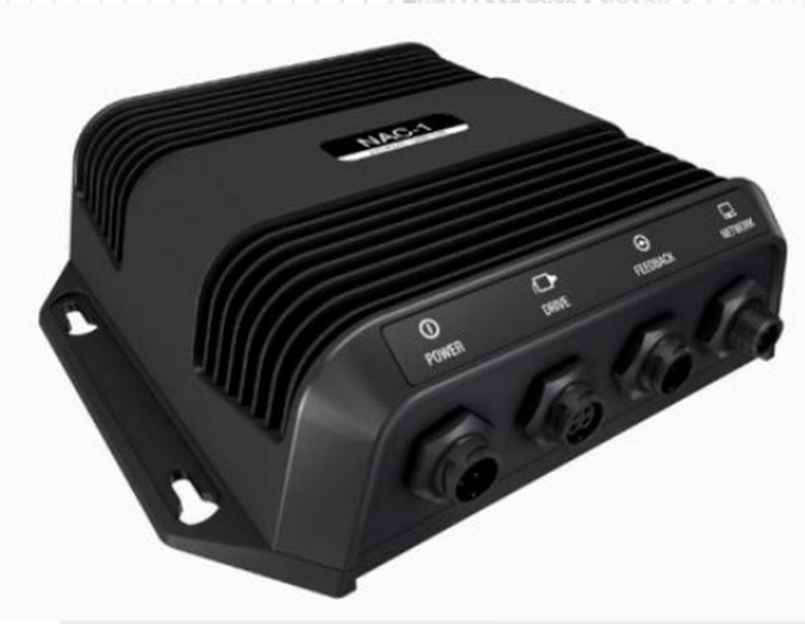

  • NAC-1 Autopilot Computer
  • N2KEXT-2RD 2ft Network Extension Cable
  • Micro-C Power Cable Only - No T Connector
  • N2KEXT-15RD 15ft Network Extension Cable
  • NMEA2000 4-way joiner
  • Auto-Standby button Metal
