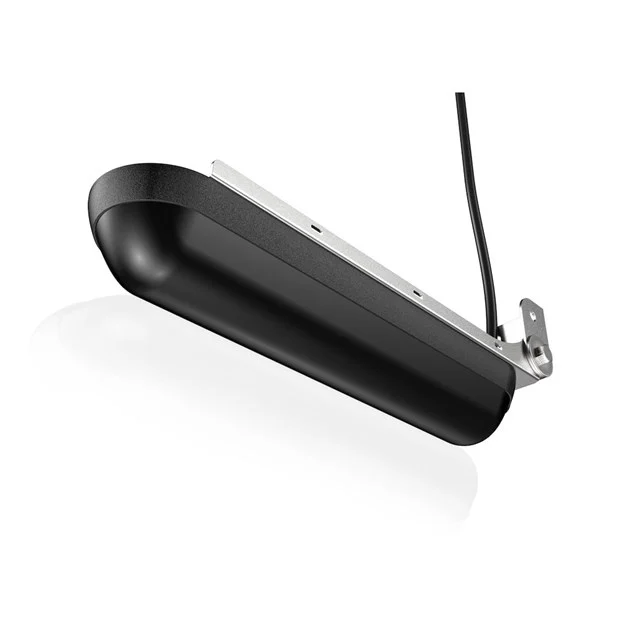

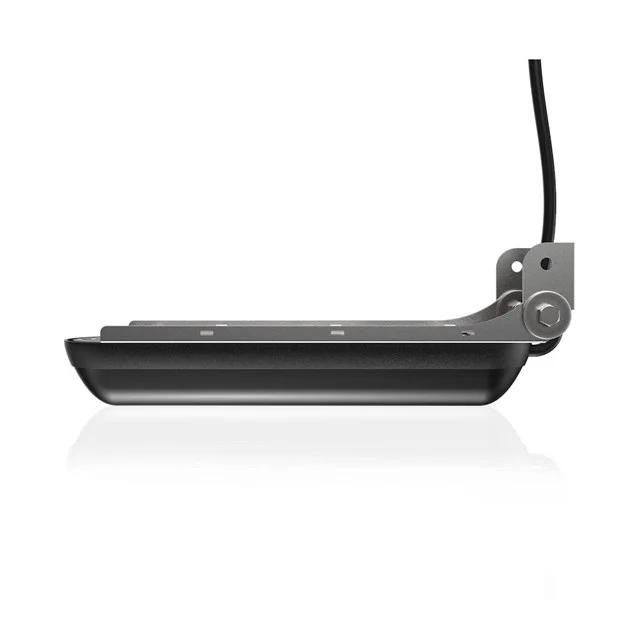

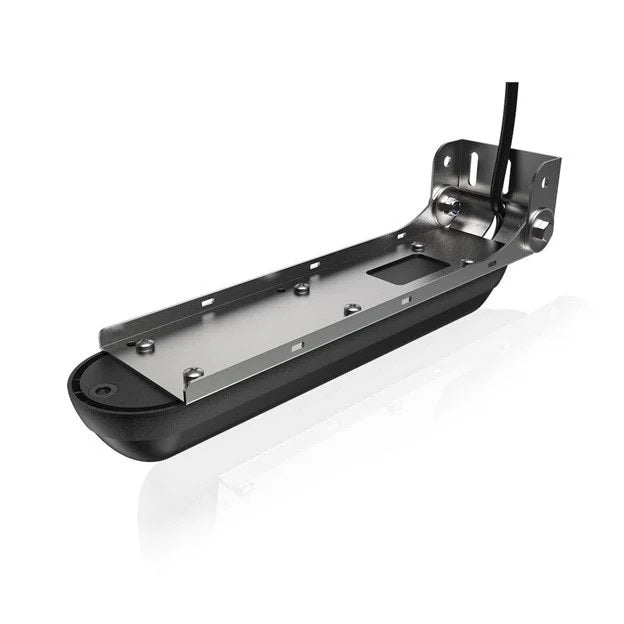

Lowrance Active Imaging 3-in-1 Transducer

Lowrance Active Imaging 3-in-1 TransducerLowrance Active Imaging 3-in-1 TransducerLowrance Active Imaging 3-in-1 Transducer

$599.00

Free shipping over $50

See structure and cover with a new level of refined detail and at a range unmatched by any other structure imaging technology with the Lowrance Active Imaging 3-in-1 Transducer featuring CHIRP, SideScan and DownScan with FishReveal™. The high-level clarity, target separation and detail of Active Imaging will help you find more fish by making it easier to quickly identify fish-holding structures like rockpiles, standing timber, weed beds, ditches and drop-offs – all at a greater distance from your boat. Get the best of CHIRP sonar and DownScan on one screen with the exclusive FishReveal™ Smart Target view that helps you easily recognize fish from structure and cover on high-detailed DownScan images. Giving you the best clarity and range available, the new Lowrance Active Imaging 3-in-1 transducer is going to give you the imaging clarity like Lowrance's 3D module without the price tag and separate module. This is all plug and play into any Lowrance HDS Carbon, HDS LIVE, Elite TI and Elite Ti2.

Key Features

  • More refined detail and better range than any other imaging technology
  • Active Imaging 3-in-1 transducer with Lowrance CHIRP, SideScan and DownScan
  • Easier target identification with FishReveal™ Smart Target View
  • Supports Medium and High CHIRP (83/200kHz) + 455/800kHz frequencies
  • Compatible with Lowrance HDS LIVE, HDS Carbon, Elite Ti2 displays

Active Imaging Transducers

  • Active Imaging is a new scanning sonar technology that provides incredibly detailed, high-resolution imaging sonar without sacrificing any range
  • Active Imaging transducers accomplish this by better directing the SideScan beams which increases resolution and improves range performance

Active Imaging is available in two models

  • Active Imaging 3-IN-1 combines the new Active Imaging scanning sonar with a traditional Medium/High CHIRP sonar element for easy single transducer installation
  • Active Imaging operates at 800kHz or 455kHz with maximum ranges of 150ft (800kHz) or 300ft (455kHz)

Active imaging Technology

  • Active Imaging utilizes the latest techniques in sonar signal generation
  • Active Imaging transducers are constructed of a polymer that reacts to sound waves more closely to water. This ensures that no sonar signal is lost during transmit or receive
  • Active Imaging transducers include separate sonar elements for SideScan transmit and receive Separating transmit and receive allows Active Imaging to have an incredibly fast ping speed (Ping speed directly correlates to image resolution). Additionally, these separate elements focus more of the sonar signal outwardly, increasing the sonar signal to the sides and leading to better range performance

High detail or seeing far

  • High-resolution IPS screens of NSS evo3 and HDS Live show the full image, allowing the user to see the entire underwater environment
  • Active Imaging 3-IN-1 transducers combine industry-leading CHIRP sonar with new Active Imaging Side and Down views giving users total coverage with award winning sonar
  • Active Imaging transducers do not require any modules or extra hardware for use with next-generation displays

Environmental

Operating temperature -15°C to +55°C (+5°F to +131°F)
Storage temperature -30°C to +70°C (-22°F to +158°F)

Physical

Cable length 7.6 m (25 ft)
Mounting options Transom, flush step, and jackplate mounting
Connector 9 pin

Transducer

Output SideScan imaging, DownScan imaging and temperature
Frequency 455 kHz and 800 kHz
Max depth DownScan: 91 m (300 ft): SideScan: 91 m (300 ft) side range at 455 kHz, 46 m (150ft) side range at 800 kHz
Operating speed DownScan and SideScan: 9 knots (10 mph)
