Garmin, Garmin Accessories

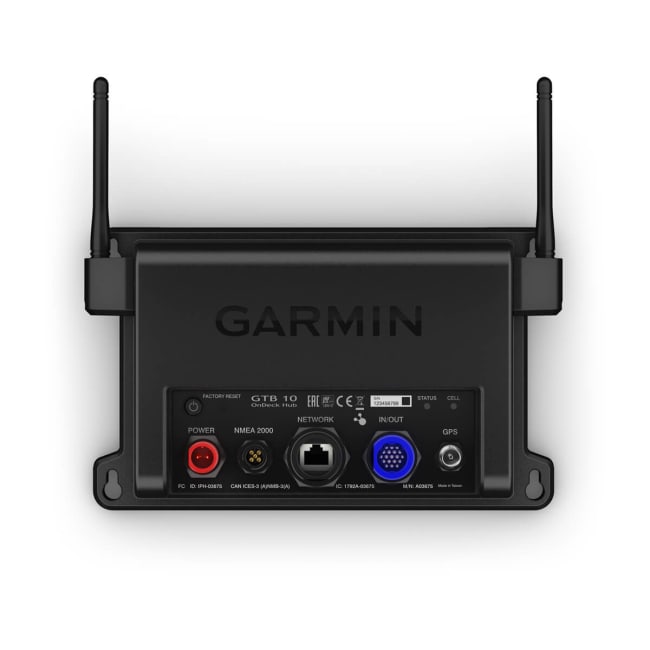

Garmin OnDeck Hub
Garmin OnDeck Hub – BE THERE FROM VIRTUALLY ANYWHERE.
Track, monitor and control any number of switches you need with the Garmin OnDeck Hub system, a fully integrated remote connectivity solution1.
Door open? Bilge running? Peace of mind comes in the form of text alerts and updates.
New features, same app. ActiveCaptain® keeps you connected to your boat1.
The always-on OnDeck Hub connection has the potential to keep you in contact from just about anywhere.
To protect your passion, you must have a plan. A subscription is required.
SKU: 010-02134-00 -
Garmin Accessories, Garmin
Garmin OnDeck Relay Switch (12 Vdc)
Garmin OnDeck Relay Switch (12 Vdc)
Control your vessel remotely using the OnDeck™ Hub and a relay switch. Add up to five switches to your OnDeck Hub to stay in control.
Verify that the input power for your OnDeck Hub operates between 10 Vdc and 15.6 Vdc to ensure compatibility with your system.
SKU: 010-13009-01
Garmin OnDeck Hub – BE THERE FROM VIRTUALLY ANYWHERE.
Track, monitor and control any number of switches you need with the Garmin OnDeck Hub system, a fully integrated remote connectivity solution1.
Door open? Bilge running? Peace of mind comes in the form of text alerts and updates.
New features, same app. ActiveCaptain® keeps you connected to your boat1.
The always-on OnDeck connection has the potential to keep you in contact from just about anywhere.
To protect your passion, you must have a plan. A subscription is required.
Keep tabs on your boat.
TRACK
Be the first to know if a security sensor has been triggered, or if your boat has been moved. The internal GPS sensor updates every 15 or 30 minutes — depending on power status — and will send text alerts1 if your boat leaves the geofenced area.
MONITOR

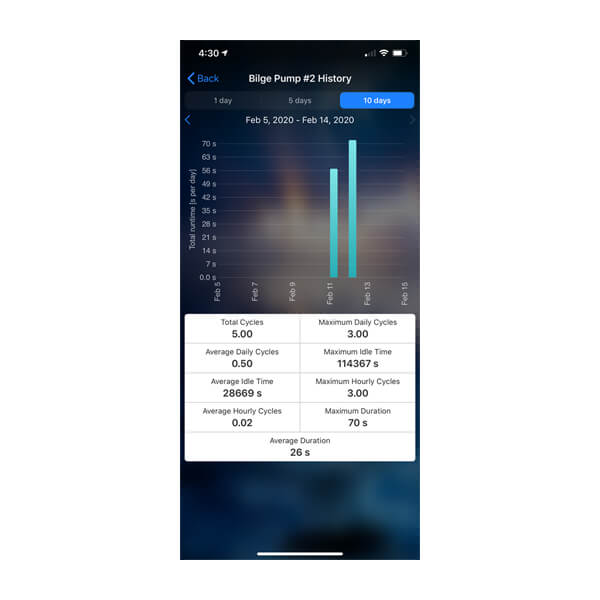

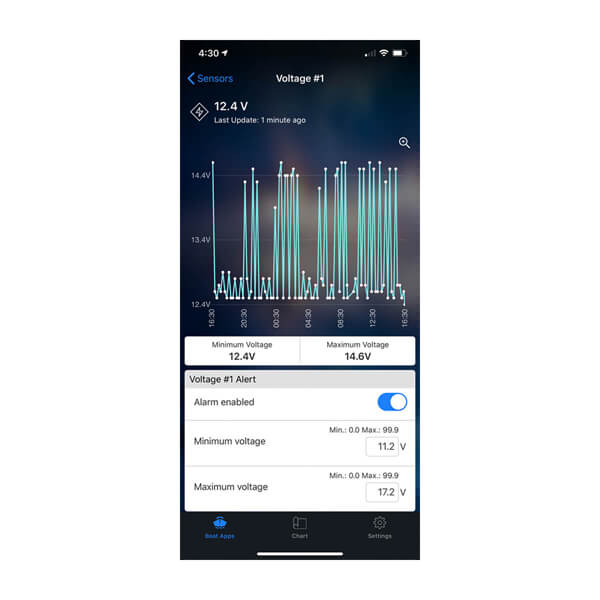

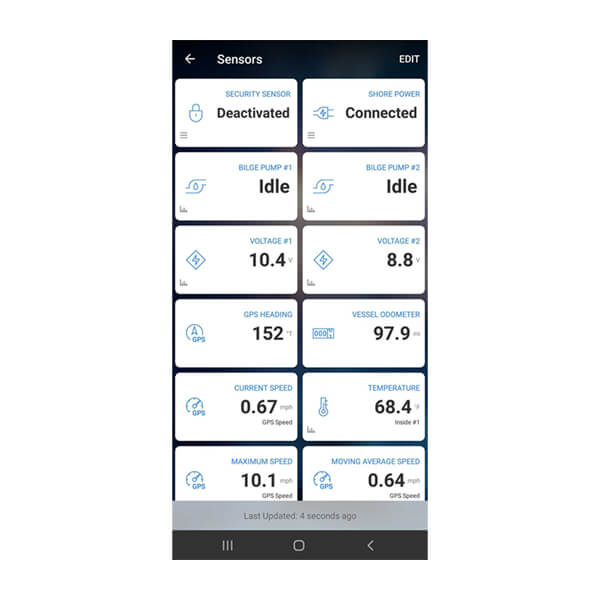

Get updates1 on your boat’s battery status, bilge activity, shore power, temperature changes and more. Set up alarm notifications in the ActiveCaptain app.

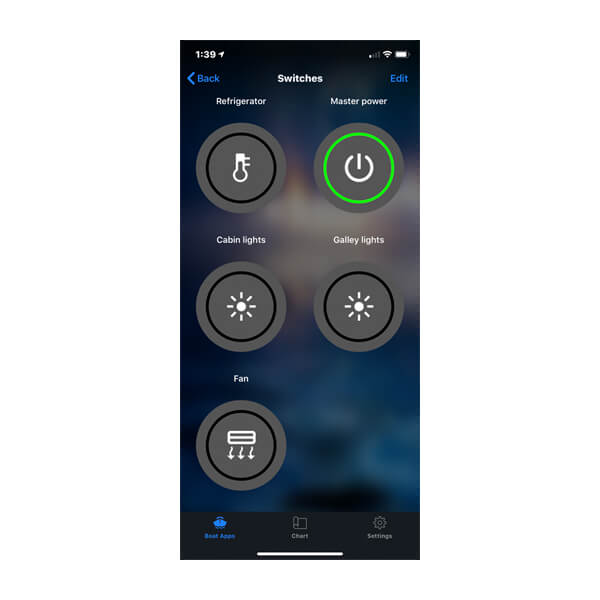

CONTROL
Take command of your boat. Remotely control up to five relay switches directly from the OnDeck Hub and the ActiveCaptain app for critical onboard systems, including battery chargers, ice makers and more. You can also control as many switches as you need with NMEA 2000 momentary or latching switch support via EmpirBus digital switching or other third-party interfaces.
Never miss an update.

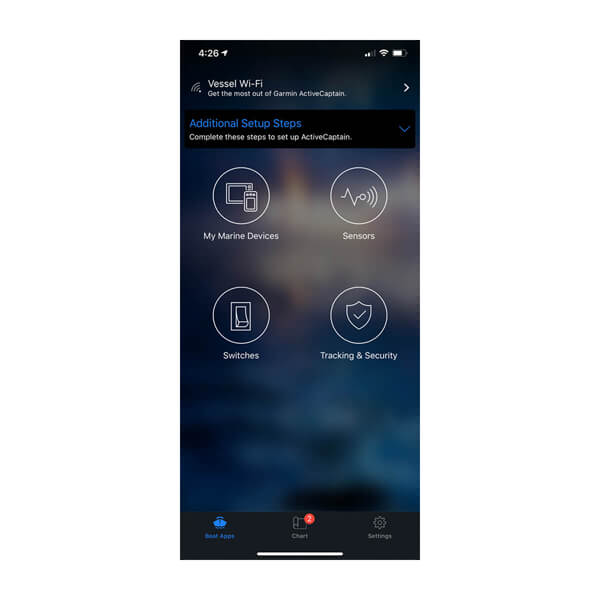

ACTIVECAPTAIN APP
Download the ActiveCaptain app to your compatible smartphone to manage your vessel. It’s where you can set up alarm notifications, take control of your boat and so much more1.
STORE DATA
Securely collect vessel data with the OnDeck Hub and store it in the cloud for up to 30 days.
ALWAYS-ON CONNECTION
The hub uses global 3G/4G coverage.
BACKUP BATTERY
An internal backup battery allows access to the OnDeck Hub for up to 48 hours after the boat battery is depleted or the power is disconnected.
SUBSCRIPTION
To stay in touch with your vessel, a subscription plan is required. Choose between an annual plan or pay month-to-month.
FULL INTEGRATION
The OnDeck system is a seamless addition to your current marine electronics (MFD via Garmin Marine Network, engines, NMEA 2000® network sensors).
What’s in the box?
- OnDeck™ Hub
- OnDeck™ security sensor
- OnDeck™ temperature sensor
- OnDeck™ shore power sensor
- OnDeck™ relay switch 12 Vdc (1x)
- Power cable
- In/out data cable (19-pin), sensor/relay output
- Garmin Marine Network cable
- NMEA 2000® drop cable
- NMEA 2000 T-connector
Installation Instructions
Owner’s Manual
Support: OnDeck™ Hub Installation
Weight | 0.7 kg |
---|
GENERAL
Physical dimensions without antennas | 23.1 x 4.9 x 14.2 cm |
Physical dimensions with antennas pointing up | 23.1 x 13.2 x 14.2 cm |
Physical dimensions with antennas parellel to mounting | 23.1 x 4.9 x 21.5 cm |
Weight | 0.64 kg |
Power consumption | 20 W max at 10 Vdc |
Input voltage range | From 10 to 32 Vdc |
Battery life | Up to 48 hours |
Monitoring frequency | 15 minutes |
CONNECTIVITY
NMEA 2000® compatible | Yes |
ActiveCaptain compatible | Yes |
Cellular connectivity | Yes (3G/4G) |
Wi-Fi® | Yes |
Garmin Marine Network | Yes |
SENSORS
Bilge pump | Yes (2) |
Security | Yes |
Battery voltage | Yes (2) |
Temperature | Yes |
Shore power | Yes |
GPS location | Yes |
Distance log | Yes |
NMEA 2000 SENSORS
Fluid level | Yes |
Temperature | Yes |
Water depth | Yes |
Position | Yes |
Course over ground | Yes |
Speed over ground | Yes |
Vessel speed | Yes |
Wind data | Yes |
Fuel flow rate | Yes |
Engine hours | Yes |
Engine warning indicators | Yes |
SWITCH CONTROLS
Relay switch | Yes (5) |
ALARMS
Temperature | Yes |
Geofence | Yes |
Offline | Yes |
Voltage | Yes |
Shore power | Yes |
Security sensor | Yes |
Depth | Yes |
