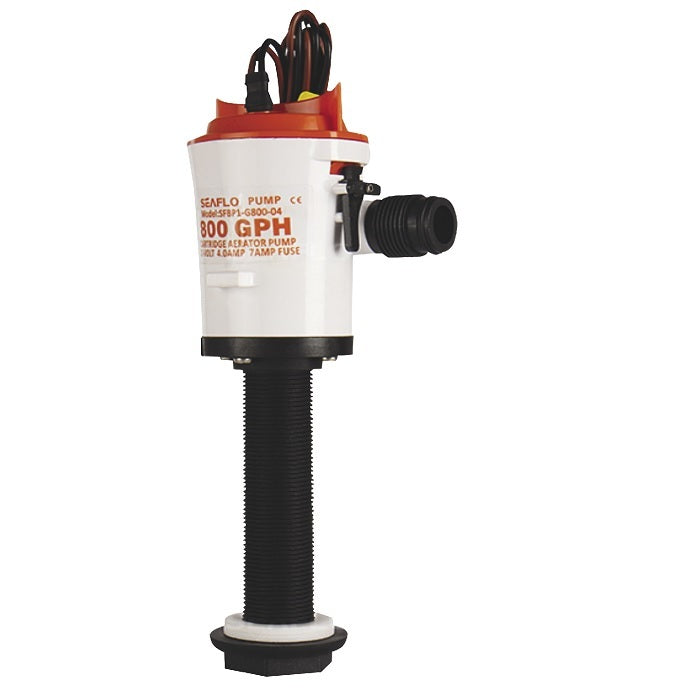

SEAFLO 800GPH Baitwell / Livewell Pump - Straight

SEAFLO 800GPH Baitwell / Livewell Pump - StraightSEAFLO 800GPH Baitwell / Livewell Pump - Straight

$65.70

Free shipping over $50

SEAFLO 800GPH Baitwell / Livewell Pump - Straight SEAFLO 800GPH Baitwell / Livewell Pump

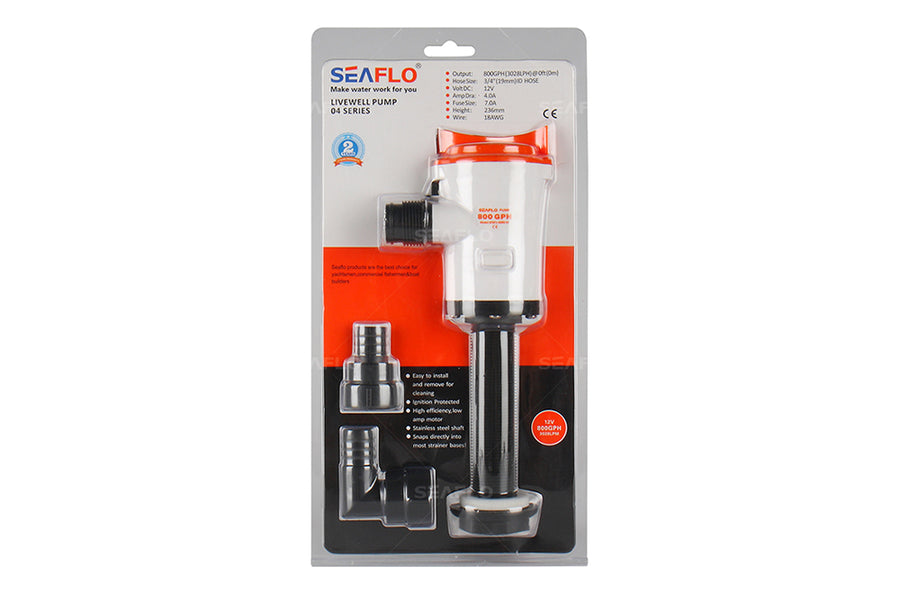

Powerful low profile pump with straight intake configuration. Powerful 800GPH output to suit small confined bilge and tank areas. Features ignition protected wiring plus push button cartridge removal system. Supplied complete with 3/4 inch straight and 90 degree elbow tails. 12 volt, 4Amp water cooled motor. This Seaflo baitwell pump is built for the serious angler. Our pumps fill your livewell tank with clean, oxygenated water to keep your catch fresh. Our cartridge design allows you to access the motor and the impeller without the need to replumb your system. Comes with all accessories needed to install, including sealing nut and washers. SEAFLO Live Bait Tank 800GPH Aerator - Straight

MORE FEATURES

  • 2 Year Warranty
  • Easy, click-in replaceable motor
  • Built in through-hull
  • Water-cooled motor housing
  • 110°F (43°C) temperature limits

- Entirely submersible - Run dry capable for normal workloads - Quiet operation - Stainless steel shaft

TYPICAL APPLICATIONS

Fishing

DIMENSIONS

STANDARD PUMP CONFIGURATIONS

Model Flow Rate Voltage Max Draw Fuse Amps Head Wire Lead Outlet Dia N.W. / G.W.
SFBP1-G800-04 709 GPH 12 V 4.0 A 7.2 A 8.9' (2.7 m) 3' (1 m) 3/4" 0.4/0.5 kg
PERFORMANCE
Voltage(V)
Current(A)
Flow
Head(M)
GPH

LPH

12 3.25 709 2683 0
12 3.85 603 2282 0.5
12 4.62 486 1839 1
12 5.28 374 1415 1.5
12 6.33 186 704 2
12 7.05 88 333 2.5
12 7.2 0 0 2.7
Â

Key Description Quantity
1 Wire Buckle 1
2 Pump Cover 1
3 Motor Bracket 1
4 Motor 1
5 Seal Base 1
6 Seal 1 1
7 Motor Cover 1
8 Seal 2 3
9 Impeller 1
10 Spring Knob 1
11 Pump Housing 1
12 Strainer 1
? Tapping Screw 1
? Tablet Button 1
? Spring 1
? Straight Threaded Hose 1

Installation Manual
