SEAFLO 800GPH Baitwell / Livewell Pump - 90 Degree

SEAFLO 800GPH Baitwell / Livewell Pump - 90 DegreeSEAFLO 800GPH Baitwell / Livewell Pump - 90 Degree

$65.70

Free shipping over $50

SEAFLO 800GPH Baitwell / Livewell Pump - 90 Degree SEAFLO 800GPH Baitwell / Livewell Pump - 90 Degree

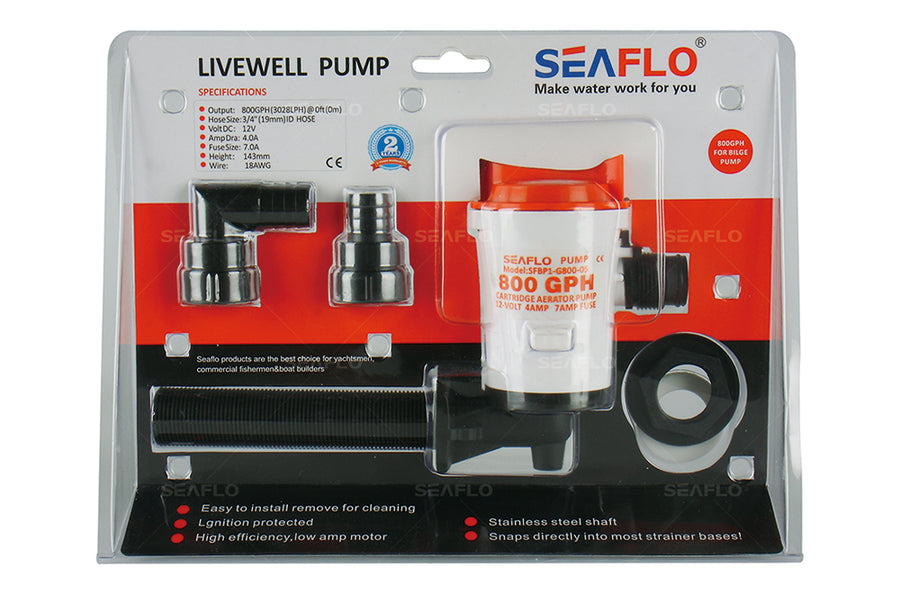

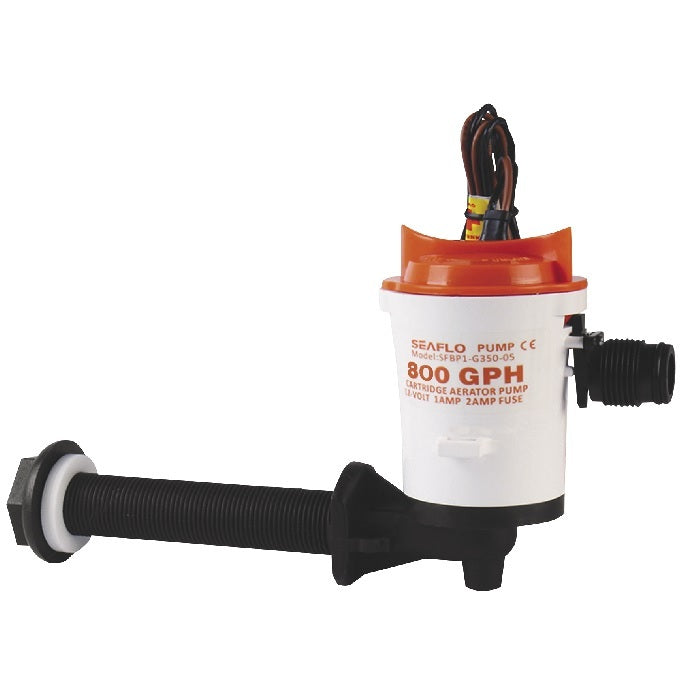

Powerful low profile pump with 90 degree intake configuration. Powerful 800GPH output to suit small confined bilge and tank areas. Features ignition protected wiring plus push button cartridge removal system. Supplied complete with 3/4 inch straight and 90 degree elbow tails. 12 volt, 4Amp water cooled motor. The Livewell / Baitwell pumps are built on SEAFLO”™s unsurpassed quality and leadership in pump design and technology. The innovative design includes many new and exciting features including: a quick,one hand ”œpush button”� motor cartridge removal system and threaded nylon hose barb attachments which allow for various hose mounting options. Other features include a built-in dual port option, water-cooled housing and positive snap motor cartridge locking mechanism. Pumps are available in 350 GPH, 600 GPH and 800 GPH and are fitted for transom or seacock mounting options.

SEAFLO Live Bait Tank 800GPH Aerator - 90 Degree

MORE FEATURES

  • 2 Year Warranty
  • Easy, click-in replaceable motor
  • Built in through-hull
  • Water-cooled motor housing
  • 110°F (43°C) temperature limits

- Entirely submersible - Run dry capable for normal workloads - Quiet operation - Stainless steel shaft

TYPICAL APPLICATIONS

Fishing

DIMENSIONS

STANDARD PUMP CONFIGURATIONS

Model Flow Rate Voltage Max Draw Fuse Amps Head Wire Lead Outlet Dia N.W. / G.W.
SFBP1-G800-05 704 GPH 12 V 4.0 A 7.2 A 8.9' (2.7 m) 3' (1 m) 3/4" 0.4/0.5 kg

PERFORMANCE

Voltage(V)
Current(A)
Flow
Head(M)
GPH LPH
OPEN 3.08 704 2664 0
12 3.64 623 2358 0.5
12 4.14 505 1911 1
12 4.96 271 1026 1.5
12 5.53 155 587 2
12 6.42 78 295 2.5
12 6.8 0 0 2.7
Â
Key Description Quantity
1 Wire Buckle 1
2 Pump Cover 1
3 Motor Bracket 1
4 Motor 1
5 Seal Base 1
6 Seal 1 1
7 Motor Cover 1
8 Seal 2 3
9 Impeller 1
10 Spring Knob 1
11 Pump Housing 1
12 90 Degree Threaded Hose 1
? Tapping Screw 1
? Tablet Button 1
? Spring 1
? Button 1

Installation Manual
