SEAFLO 1100GPH Bilge Pump

SEAFLO 1100GPH Bilge PumpSEAFLO 1100GPH Bilge PumpSEAFLO 1100GPH Bilge PumpSEAFLO 1100GPH Bilge Pump

$51.50

Free shipping over $50

SEAFLO 1100GPH Bilge Pump

SEAFLO non-automatic 1100GPH bilge pumps offer water evacuation activated by a panel or float switch. Include Anti-Airlock protection and exclusive moisture tight seals,marine grade blockd wiring.Our larger impeller design and more robust motor allow us to outperform our competitors. Our removable strainer base fits industry standard mounting conventions though, so you”™ll have no problem changing to us from them.Availalble for DC 12 Voltage & 24 Voltage.

SEAFLO 1100GPH Bilge Pump

MORE FEATURES

  • 2 Year Warranty
  • Meets or exceeds RoHS, SGS, and ISO standards
  • Traditional operation by switch or float switch
  • Entirely submersible
  • Snap-off strainer base for easy maintenance
  • Pump and switch are stand alone products
  • Sealed efficient,long life motors
  • Run dry capable for normal workloads
  • Quiet operation
  • 110°F (43°C) temperature limits
  • Stainless steel shaft
  • Anti-Airlock protection
  • Exclusive moisture tight seals
  • Marine grade blocked wiring

     Â

TYPICAL APPLICATIONS

Marine 20ft, Medical, Pond, Water Research, Solar Water System, etc.

DIMENSIONS

STANDARD PUMP CONFIGURATIONS

Model Flow Rate Voltage Max Draw Fuse Amps Head Wire Lead Outlet Dia N.W. / G.W.

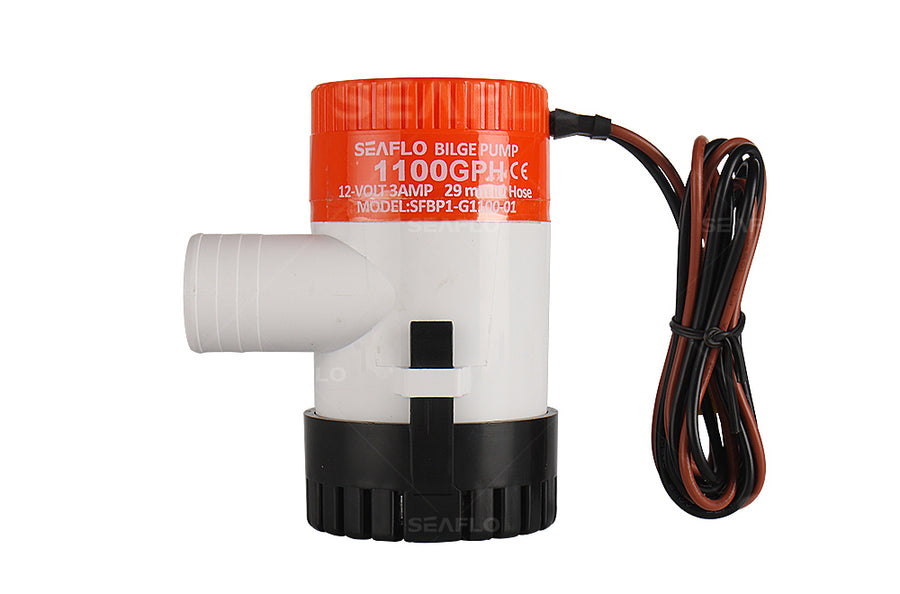

SFBP1-G1100-01 1130 GPH 12 V 6.0 A 5.0 A 14.8' (4.5 m) 3' (1 m) 1-1/8" 0.38/0.44 kg

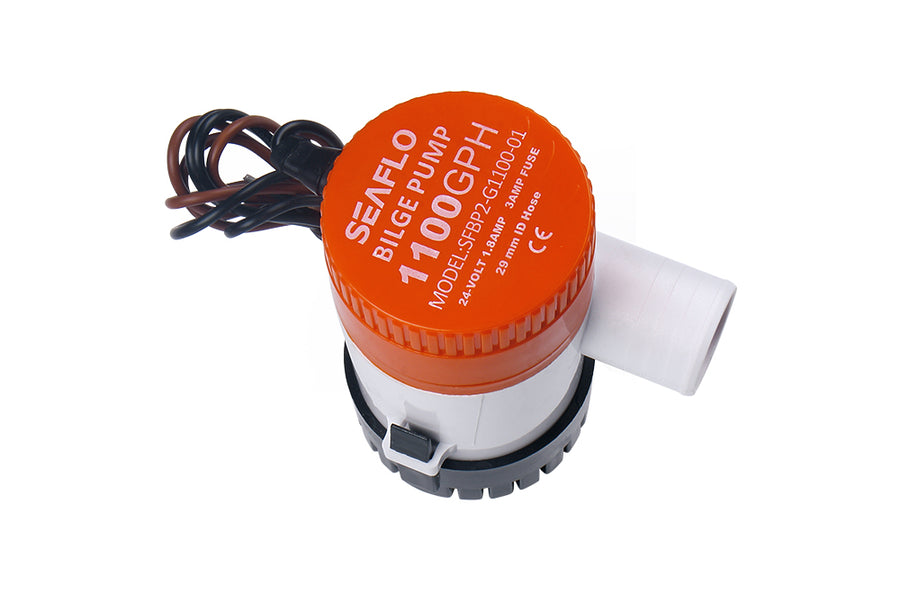

SFBP2-G1100-01 1120 GPH 24 V 4.0 A 3.0 A 15.7' (4.8 m) 3' (1 m) 1-1/8" 0.38/0.44 kg

PERFORMANCE

Voltage(V)
Current(A)
Flow
Head(M)
GPH

LPH

OPEN 3.8 1130 4276 0
12 4.04 1024 3875 0.5
12 4.22 897 3394 1
12 4.48 752 2846 1.5
12 4.79 635 2403 2
12 5.06 502 1900 2.5
12 5.26 377 1427 3
12 5.53 215 814 3.5
12 5.72 106 401 4
12 6 0 0 4.5
Voltage(V)
Current(A)
Flow
Head(M)
GPH

LPH

OPEN 1.3 1120 4238 0
24 1.64 995 3765 0.5
24 1.98 873 3304 1
24 2.15 745 2819 1.5
24 2.48 621 2350 2
24 2.62 489 1850 2.5
24 2.98 351 1328 3
24 3.15 186 704 3.5
24 3.48 85 322 4
24 4 0 0 4.8

PERFORMANCE

Key Description Quantity
1 Wire Buckle 1
2 Pump Cover 1
3 Tapping Screw 2
4 Motor Bracket 1
5 Motor 1
6 Seal Base 1
7 Seal 3
8 Motor Cover 1
9 Impeller 1
10 Pump Housing 1
11 Strainer 1
