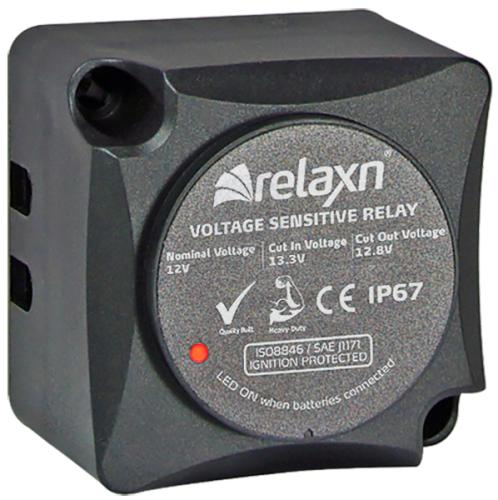

Relaxn Voltage Sensitive Relay

Relaxn Voltage Sensitive Relay

$85.45

Free shipping over $50

Relaxn Voltage Sensitive Relay

Ӣ Ideal for dual battery systems or to switch high current appliances. Ӣ Suits for ATV, boats, RVӪs, marine vehicle, caravan and truck. Ӣ VSR allows 2 batteries to be charged at the same time. Ӣ No voltage drops comparing to battery isolator diodes (0.6V). Ӣ Robust glass fibre reinforced nylon enclosure. Ӣ Built-in LED indication (ON when VSR engages). Ӣ Surface or panel mount options provide flexibility when installing. Ӣ Optional Storage Mode allows zero power consumption when the engine is off. Ӣ CE ISO8846 / SAEJ1171 Ignition Protected. Ӣ Patented Made in Taiwan.
Part No. SAW-53083Relaxn Voltage Sensitive Relay
Width 69mm
Height 69mm
Depth 58mm
Nominal Voltage 12V
Cut In Voltage 13.3V
Cut Out Voltage 12.8V
Continuous Rating 125 Amps
Intermittent Rating 140 Amps
Power Consumption 10mA (Standby) / 330mA (Engage) / 0mA (Storage)
Terminal Studs M6
