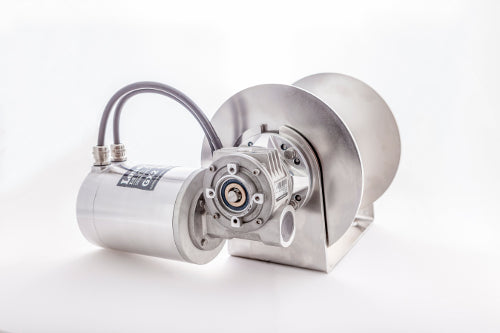

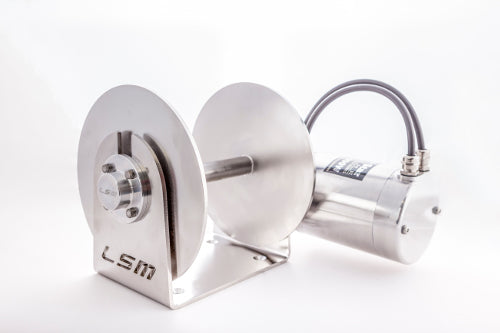

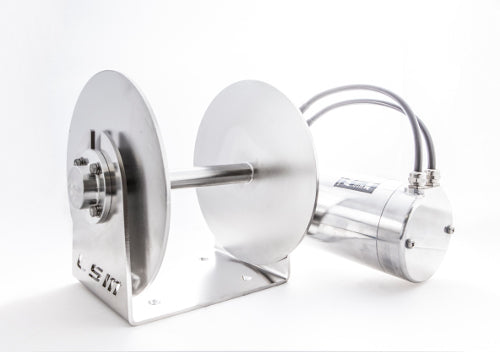

Lone Star Marine GX2 Winch

Lone Star Marine GX2 WinchLone Star Marine GX2 WinchLone Star Marine GX2 WinchLone Star Marine GX2 Winch

$2,099.00

Free shipping over $50

Lone Star Marine GX2 Winch

Australia”™s most popular winch model, you may have seen the GX2 in the famed Drum Winch Shootout. The GX2 boasts jaw dropping longevity and performance and is available with 5 different rope & chain combinations to suit most vessels to 7m and a variety of anchoring styles. The GX™ series have become the new workhorse & standard in perfectly engineered anchoring systems at the right price. Featuring all Australian Made 316 stainless and machined & anodized 6061 T-6 aluminium construction, ”œReal Italian”� transmissions, triple sealed bearings, twin shaft bearing systems, machined slimline ”˜fast change”™ collars, & an all new emergency release as standard on all models. Motors are once again custom manufactured exclusively for LSM and are pre-rigged with twin leads for easy installation. From the company with so many Worlds First under its belt, we are proud to have created the first anchor winch motor with an IP68 rating (AS/NZS 60529). This silicon free, glue free, paint free design has been achieved utilizing the latest modern manufacturing techniques, right here in AU. Most importantly, GX Series winches are made to get wet! From small recreational boats to Commercial Vessels over 60ft, there is a GX Series winch just right for your boat and application. All backed by our famous 5 + Life Warranty. Performance, reliability & raw power in a compact frame design, the GX2 is the answer for most trailer boat fishermen. Thanks to the well oversized gearing and motor this unit can easily be fitted to boats to 7m for saltwater use and much larger for freshwater applications.
  • Huge 1000W Motor
  • Perfect for wet wells and deck mounts
  • Boats to 7m
  • Fast Drop/Retrieval Rating
  • Fully Sealed Motor and Gearbox
  • Designed & Manufactured in Australia
Everyone wants more power”¦.so we listened! The GX2 features an oversized 1000W motor in wider yet shorter design than its predecessor for more versatile mounting. Each GX series winch features custom engineered drive components to deliver a faster speed with an amazing amount of grunt. No bushes, split pins, actuators, springs, clutches, or additional circuitry to fail. Nothing extra to buy. Just fast, reliable anchoring. Ideal for boats to 7 meters plus Every Lone Star Marine Drum Winch Includes a 5 + Life Warranty
  • 1000W Purpose Built Permanent Magnet Motor, 4 Brush Design
  • IP68 (Fully Waterproof)
  • Machined Solid 25mm 316SS Spool Shaft
  • High Polished 6mm 316SS Plate Construction Throughout
  • Twin Shaft Bearing Design, Triple Sealed (LSM Exclusive)
  • Machined Roller Bearing Cover (triple sealed)
  • No Paint or Silicon Sealants
  • No Mild steel outputs or fittings
  • Fully Waterproof Machined Motor (LSM Exclusive)
  • Prerigged with tinned cable leads for easier fitting
  • Machined (not cast) Fastchange Collar
  • Perfect for Deck Mounting
  • Holds 90m of 8mm Rope + 7m x 8mm chain
  • Larger Capacity Dyneema Kits are Available
  • Drop/Retrieve up to 156Ft (46m) per minute
  • 12 Adjustable Gear/Motor Mounting Positions
  • Manual Release Feature in the event of power loss
  • 3000kg Holding Power at Anchor-No need to tie off
  • Huge 1360kg Max Pull (empty drum)
  • 110kg max recommended working load
  • All 316SS and Machined 6160 Alloy Construction
  • Rounded Style Transmissions for easier fitting-Made in Italy
  • Designed and Manufactured in Australia

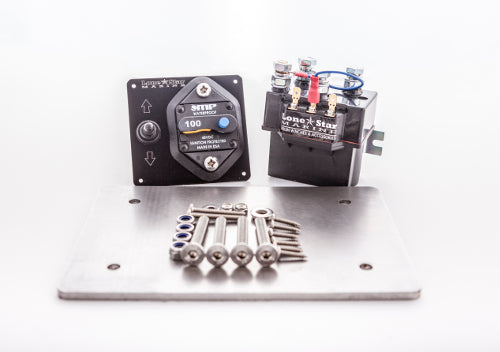

Each Kit Includes the Following as Standard
  • Winch
  • 6mm Base Plate
  • 400 Amp Solenoid
  • Genuine MP Marine Grade Circuit Breaker (made in the USA)
  • Anodized Alloy Toggle Switch Panel
  • All Nuts, Bolts, & Washers Needed for Installation
  • Warranty Information, Switch Panel Template, Installation Instructions
