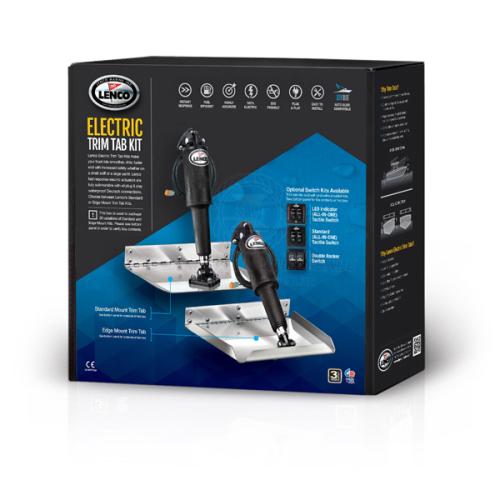

LENCO Trim Tab 9 x 9 Electro Polished Edge Mount Kits

LENCO Trim Tab 9 x 9 Electro Polished Edge Mount KitsLENCO Trim Tab 9 x 9 Electro Polished Edge Mount KitsLENCO Trim Tab 9 x 9 Electro Polished Edge Mount KitsLENCO Trim Tab 9 x 9 Electro Polished Edge Mount Kits

$2,038.00

Free shipping over $50

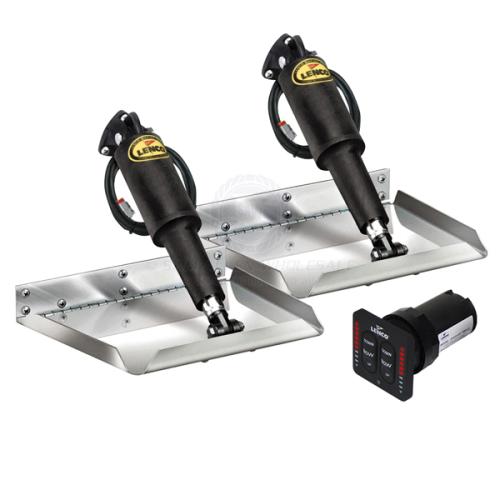

LENCO Trim Tab Electro Polished Edge Mount Kits

Ӣ Built-in auto retract. Ӣ 12/24 volt. Ӣ LED indicator displays the exact position of your trim tabs, Auto brightness adjusting. Ӣ Self check feature. Ӣ Waterproof key pad and solid state control box with waterproof plug and play Deutsch connectors, backlit. Ӣ 36 inch power pigtail for control box. Standard Mount Trim Tab Kits: Ӣ 2 x Standard Mount Plates, 12 Gauge (2.7mm) - 304G stainless steel with a 5/8 inch flared trailing edge and 1/8 inch diameter hinge pin. Ӣ 2 x 12 volt 101 actuators with 1.8m cable and Deutsch connectors. Ӣ 2 x actuator extension wiring harness (6m) with Deutsch connectors. Ӣ 1 x set of stainless steel fasteners. Ӣ 2 x upper mounting bracket with gland seal. Ӣ 2 x lower mounting bracket. Ӣ Lenco ownerӪs installation manual. Ӣ 5 Year Warranty (Recreational Use).
Part No. SAW-55493
Switch Kit LED Indicator

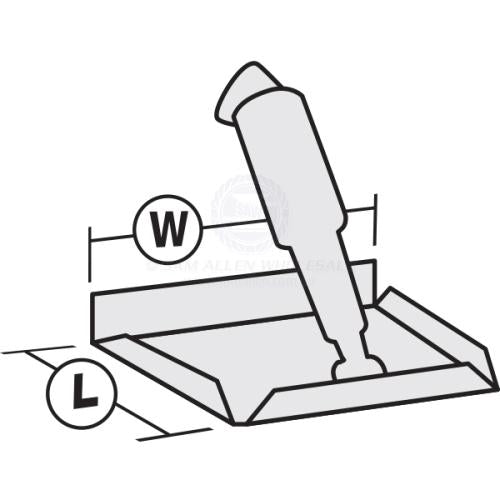

Dimensions (L x W) 9 inch (228mm) x 9 inch (228mm)
Hinge Height 51mm

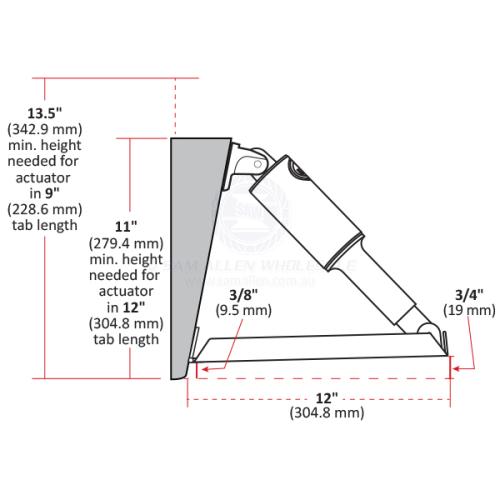

Min. Transom Height 356mm
Approx. Boat Length 4.3Mtr - 5.5Mtr
Finish Electro Polished
Volts 12V
Note 24 Volt Option Available. *All standard mount trim tabs kits are supplied in retail packages.

Manual
