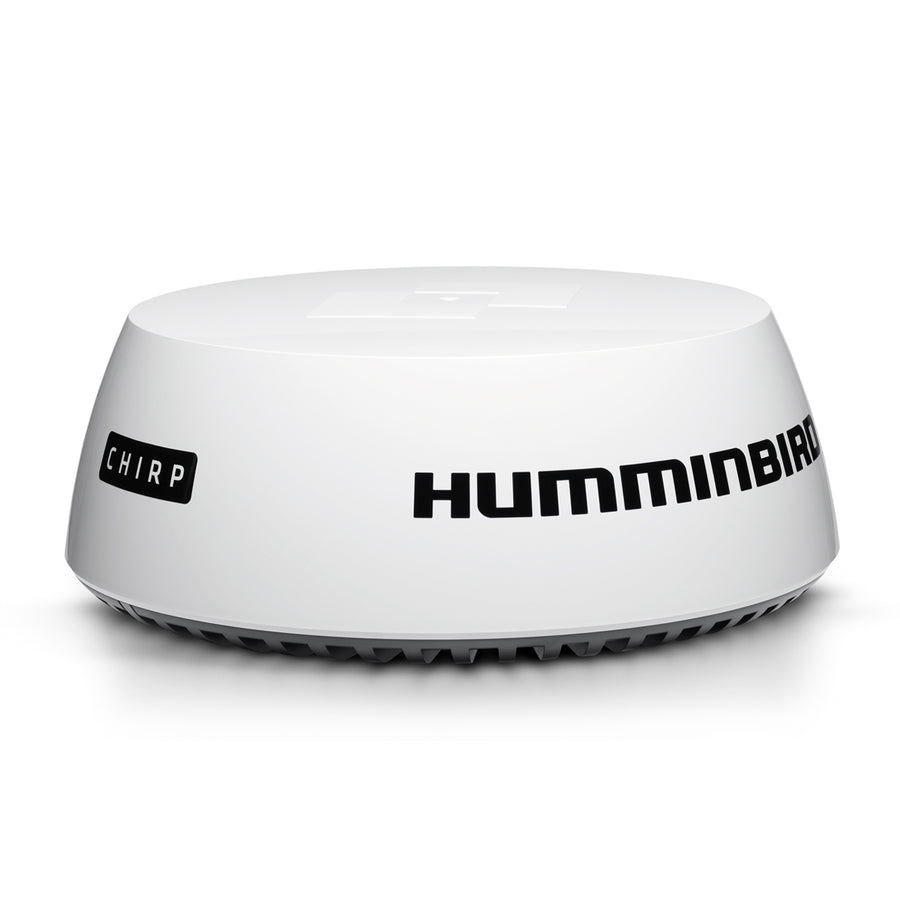

Humminbird CHIRP Radar

Humminbird CHIRP Radar

$3,949.00

Free shipping over $50

Humminbird CHIRP RadarHumminbird CHIRP Radar

The HB 2124 is our Humminbird CHIRP Radar that features CHIRP pulse compression, setting a new standard for compact solid-state radar. It delivers superior radar imaging on both long and extremely short ranges. This translates to better situational awareness in low-visibility conditions and helps identify floating obstacles and structures for clues to where gamefish are located. In addition, track weather, hazards and other vessels with amazing definition for navigational safety.
  • Compatible with: All SOLIX Series, all HELIX 12 Series, all HELIX 10 Series, all HELIX 9 Series, all HELIX 8 Series, select networking HELIX 7 Series models (HELIX 7 MSI GPS G3N, HELIX 7 MDI GPS G3N, HELIX 7 CHIRP GPS G3N, HELIX 7 MSI GPS G3, HELIX 7 MDI GPS G3, HELIX 7 CHIRP GPS G3, HELIX 7 CHIRP SI GPS G2N, HELIX 7 CHIRP DI GPS G2N, HELIX 7 CHIRP GPS G2N), all ONIX Series, all ION Series
  • Data Cable Length: 32.8?
  • Antenna Dimension – 21? Enclosed Dome; Antenna Type – Patch Array; Peak Power Output – 20 Watts, Transmit Frequency – 9354 to 9446 MHz
  • Beam width (nominal) – 4.9° Horizontal and 20° Vertical; Input Voltage – 12 or 24 VDC (Miniumum – 10.8 Volts, Maximum – 31.2 Volts)
  • Networking – Ethernet; Maximum Range Scale – from 1/16 to 24 nautical miles; Power Consumption – Transmit mode – 17 Watts; Standby Mode – 7 Watts; Sleep Mode – 2 Watts
  • Duplexer – Circulator; Pulse Widths @ 3 dB – 40 ns to 14.7µs; CHIRP Lengths – 400 ns to 20µs; CHIRP Bandwidth – Up to 32 MHz
  • IF Bandwidth – 26 MHz; Noise – Less than 4 dB; Polarization – Horizontal
  • Waterproofing – IPX6
  • Weight – 12.3 lbs (5.6 kg)
  • 1-Year Limited Warranty

Installation Manual

Operations Manual

Navigating with Humminbird CHIRP Radar
