$8,399.00
LIVE SONAR UP TO 300 METRES
MULTIPLE SONAR MODES
WIDE SONAR BEAM
IMAGE STABILISATION
THRU-HULL MOUNTING
800-WATT POWER OUTPUT
This sonar sends multiple simultaneous pings through the water column. The result is live sonar capabilities up to 300 metres, giving deep sea anglers a real-time view of what”™s below the surface.
See real-time live sonar images up to 300 metres. With Garmin RapidReturn, anglers can see small baitfish and target game fish in real time. The wide 120-degree beam angle covers huge areas of water.
View crisp, clear fish arches with excellent separation of targets under the boat.
Get a 3-way traditional sonar split that gives sonar returns from the port and starboard directions, as well as targets directly under the boat, in an easy-to-understand traditional sonar view. Adjust the beam angles to fine-tune your 3 columns of sonar data.
Historical scanning technology helps find fish and build a map of the ocean floor while your boat is moving. It shows the entire water column you have passed over in 3D, from the bottom to the surface and all fish in between. The True Motion 3D sonar returns feature now follows the vessel”™s course over ground.
Survey areas of the ocean floor in great detail. New QuickDraw Contours feature improvement allows users to survey wide swaths of the ocean floor, even at depths up to 300 metres.
Panoptix PS70 will display at a minimum of 10 frames per second (6 to 8 times faster than the competition), which results in faster sonar returns.
Locate bait and fish quickly with wide 120-degree by 8-degree sonar beam, which covers more of the water column at once.
An internal sensor will stabilise sonar returns, so you see a clear view even in rough waters.

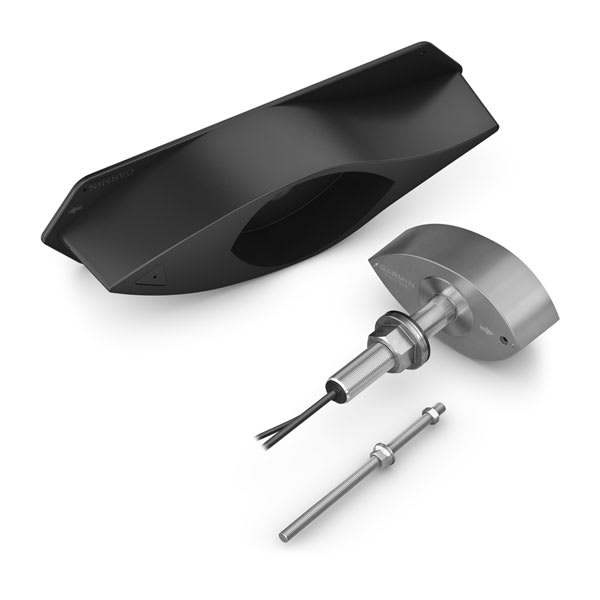

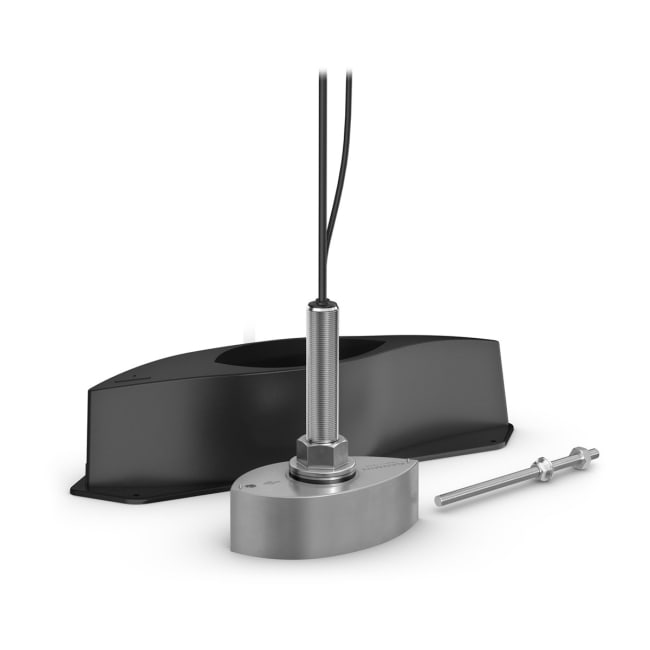

The stainless steel thru-hull transducer can be flush mount or pocket mounted. A fairing block allows for deadrise angles of 0 to 20 degrees. The optional fairing block can survive high operating speeds and withstand the rough conditions found offshore.
800-watt power output gives you stronger sonar penetration through the water.
