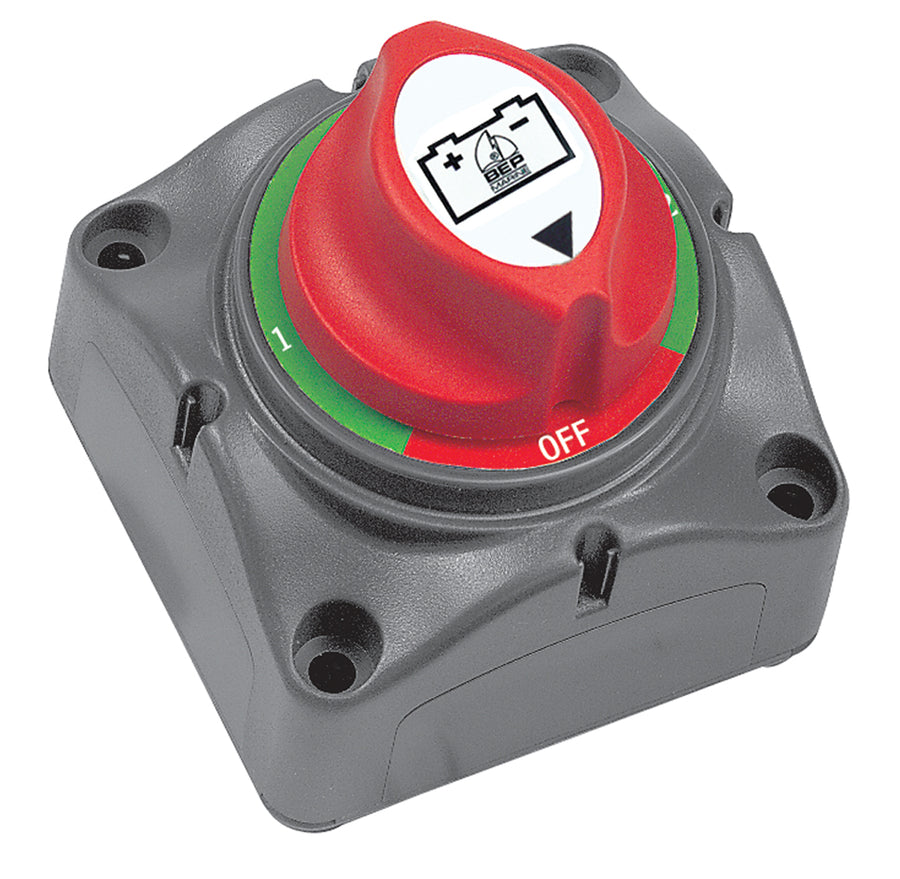

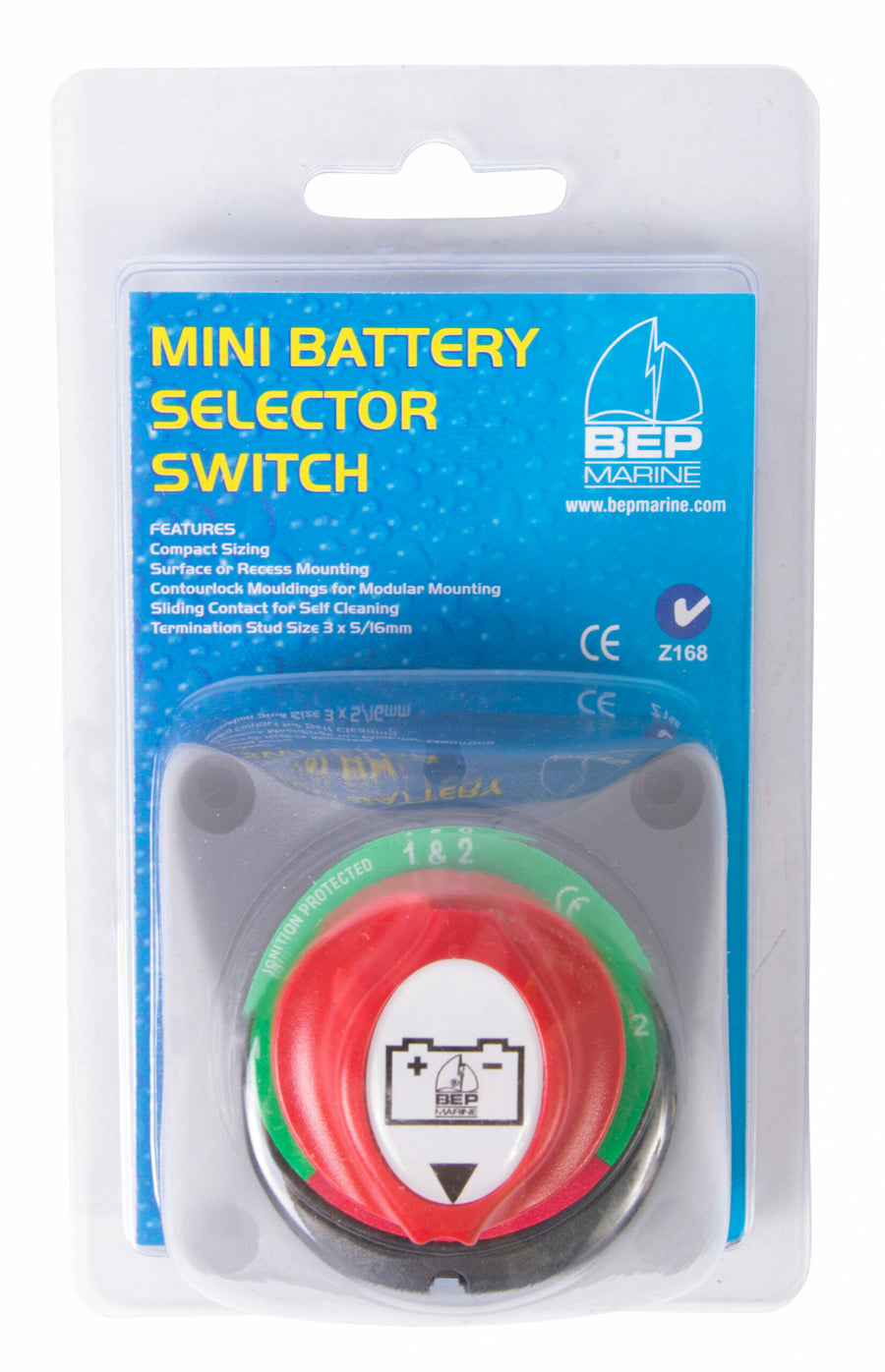

BEP Mini Battery Selector Switch

BEP Mini Battery Selector SwitchBEP Mini Battery Selector Switch

$119.90

SKU: BEP-113553

Free shipping over $500

BEP Mini Battery Selector Switch BEP Mini Battery Selector Switch

The 701-S is the smallest selector switch on the market. This battery switch offers a simple and economical way of separating two batteries. The position rotating switch provides off, Battery 1, Both and Battery 2 alternatives. A removable rear cover insulates the rear terminals against any short circuits. Removable side plates on four sides provide access to heavy-duty battery cables. Surface mount or recess mount in a 52mm hole. Mount holes 5mm roundhead. The 7015-PM is designed specifically for panel mounting with the option of full recess or shallow intrusion. This flush mounting version accepts 5mm countersunk screws. BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 deg C (212 deg F) above the ambient temperature. The continuous and intermittent ratings are tested at 110 per cent of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory. Please note this switch will not protect electronics from harmful engine starting spikes.
  • Housed in the same dimensions as the 701, and includes the same removable side plates and back cover
  • Please note selector switches will not separate electronics from harmful engine starting spikes
  • Tin-plated copper studs and nuts
  • Ignition-protected
  • Continuous rating: 200 amps DC
  • Intermittent rating: 300 amps DC
  • Cranking rating: 1000 amps DC for 10 seconds
  • Voltage rating: 48 volts DC maximum
  • Terminal stud size: 3 x 8mm
  • Moulded in high-temperature, fibre-reinforced plastics

User Manual
