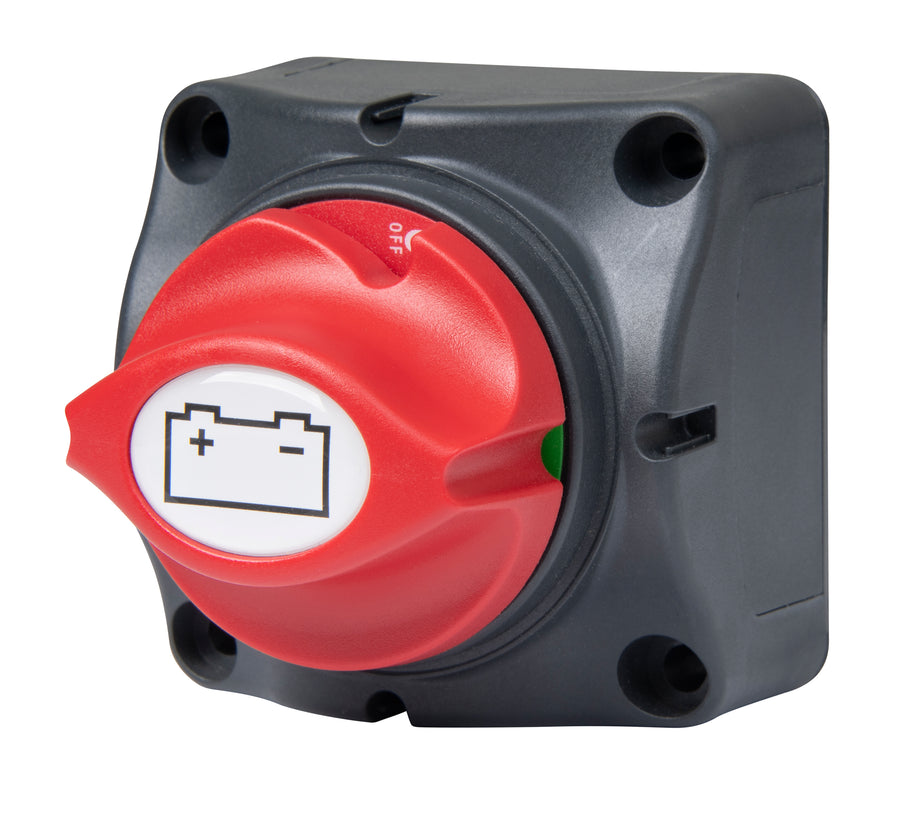

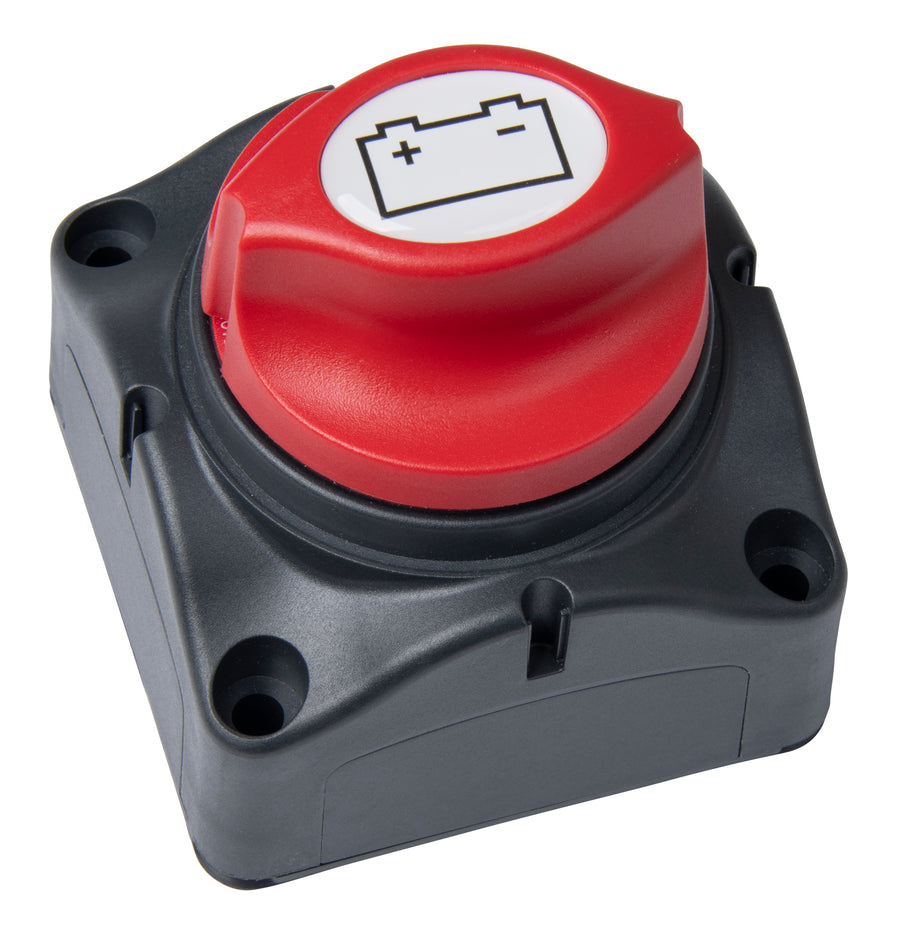

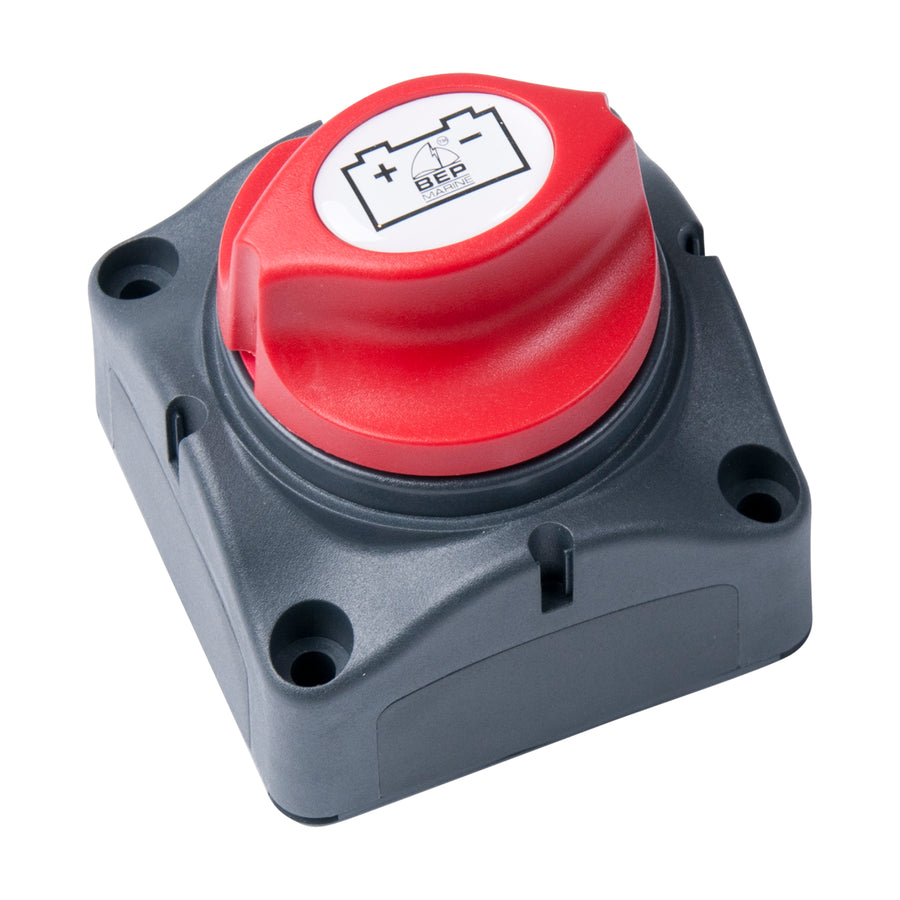

BEP Contour Battery Master Switch

BEP Contour Battery Master SwitchBEP Contour Battery Master SwitchBEP Contour Battery Master SwitchBEP Contour Battery Master Switch

$68.90

Free shipping over $50

BEP Contour Battery Master Switch BEP Contour Battery Master Switch

The 701 Contour Battery Master Switch is a simple on/off switch which offers a number of unique features. The contour lock system allows it to be a stand-alone unit or locked together with other switches. The 701 also features a control knob which cannot be removed whilst in the on or off position, however, can be removed by switching to an anti-theft position. The interchangeable labelling system on the control knob allows a full range of applications. Switches come standard with the battery symbol label. Alternative label sets BEP-113691 are available. The removable rear cover insulates the rear terminals against any short circuits and ensures the switch meets ABYC requirements.

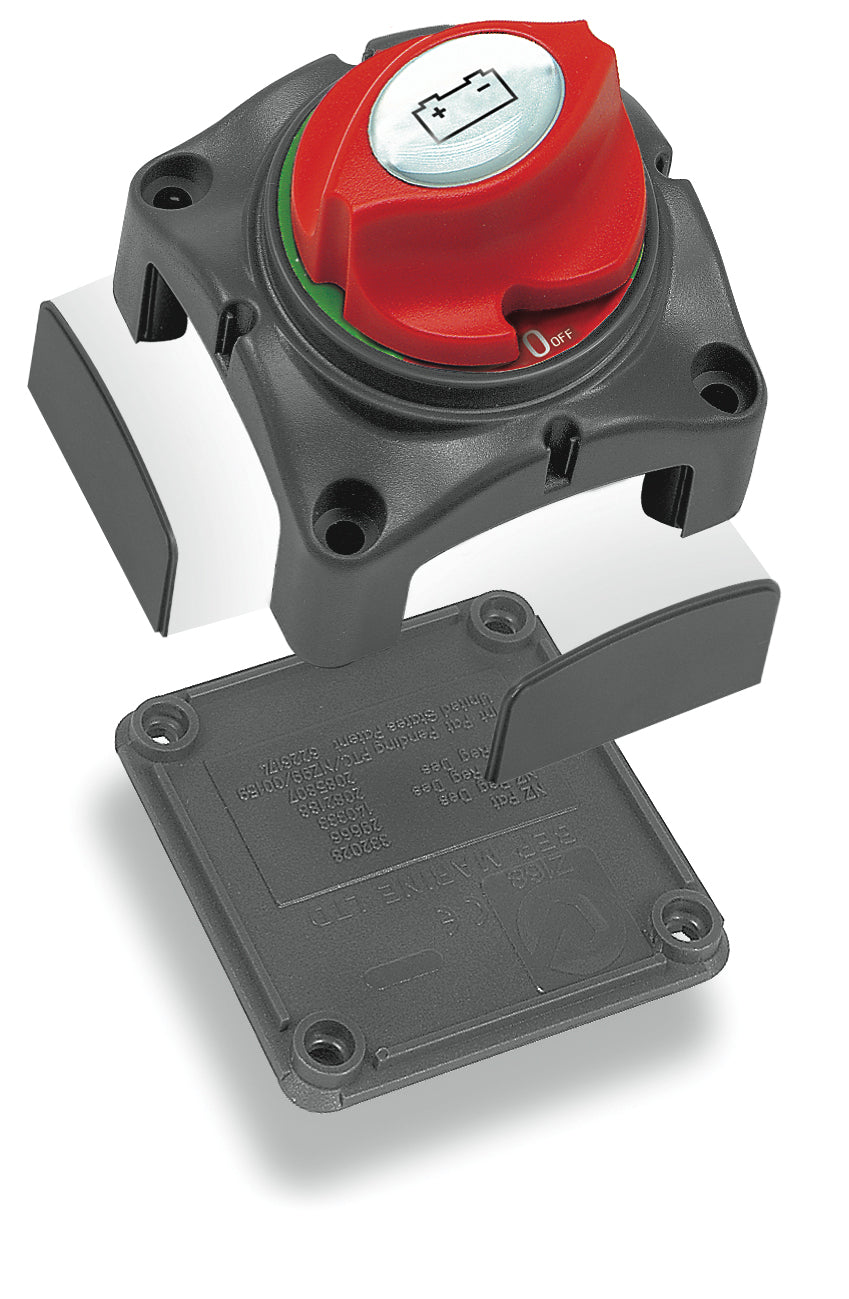

Removable side plates on 4 sides provide access for heavy-duty battery cables. Surface mount or recess mount in a 52mm hole. Screw holes 5mm roundhead. Ignition protected. Non-corrosive construction.

BEP Marine Battery Switch Test Procedures (UL 1107) Continuous (1 hour), intermittent (5 minutes) and Cranking (engine starting - 10 seconds). The test is to determine the maximum current the switch can handle for the stated time, without the rear terminals exceeding 100 deg C (212 deg F) above the ambient temperature. The continuous and intermittent ratings are tested at 110 per cent of specified ratings. All BEP switches are tested Independently to this specification by a 3rd party laboratory.

  • Can be either surface or recess mounted by cutting a 2.1" (52 mm) hole
  • Tin-plated copper studs and nuts
  • Ignition-protected
  • Continuous rating: 275 amps DC
  • Intermittent rating: 455 amps DC
  • Cranking rating: 1250 amps DC for 10 seconds
  • Voltage rating: 48 volts DC maximum
  • Terminal stud size: 2 x 10mm
  • Moulded in high-temperature, fibre-reinforced plastics
