2350 Supercab

People

Fuel Tank

400L

Max Power

350HP

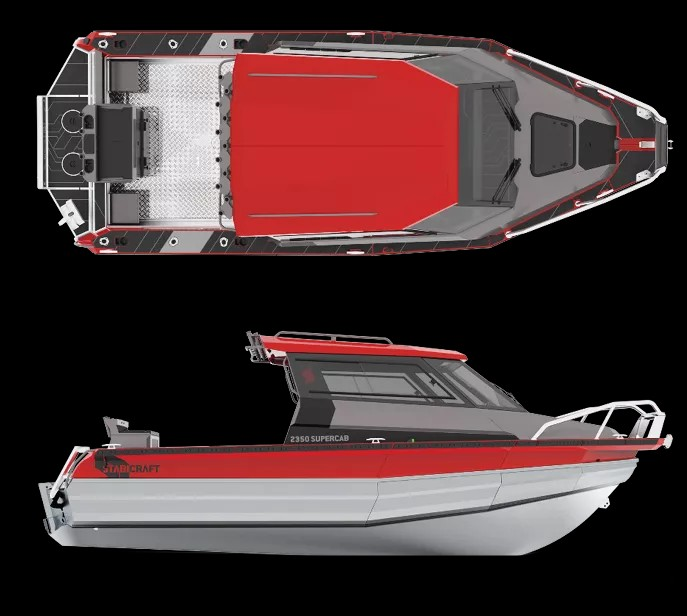

Stabicraft 2350 Supercab

The Stabicraft 2350 Supercab is a new 7m+ hull covered with Stabicraft’s signature new-DNA cabin styling. After the long and successful tenure of the 2400 Supercab, Stabicraft challenged itself to create a great offshore-performing hull, spacious deck and cabin, and a modern, modular feature set to exceed even the broadest range of customer expectations. A larger 400L fuel capacity, higher 350hp range, wider beam, bigger internal volume, innovative seating features, and competitive price point make the new Stabicraft 2350 Supercab an enticing prospect for boat owners.

Specifications

Length Metric (feet)	23.5ft (7.17m)
Max Persons	8
Recommended HP	Min 225hp
Maximum HP	350hp
Leg Length	25/30/25 Trimount
Fuel Tank	400L/106gal
External Beam	2.54m (100″) 2.50m (AU)
Internal Beam	1.97m (77.6”)
Deadrise	17°
Tube Thickness	4mm + 4mm (0.16” + 0.16”)
Hull Thickness	6mm (0.24″)
Total Sealed Volume (approx)	1985L (70.1ft3)
Dry Hull Weight (approx)	1625kg (3583lbs)
Boat Height (approx)	2.54m (100″)
NZ CPC boat safety standards	✓
US Coastguard boat safety standards	✓
ABP boat safety standards	✓

Standard Features

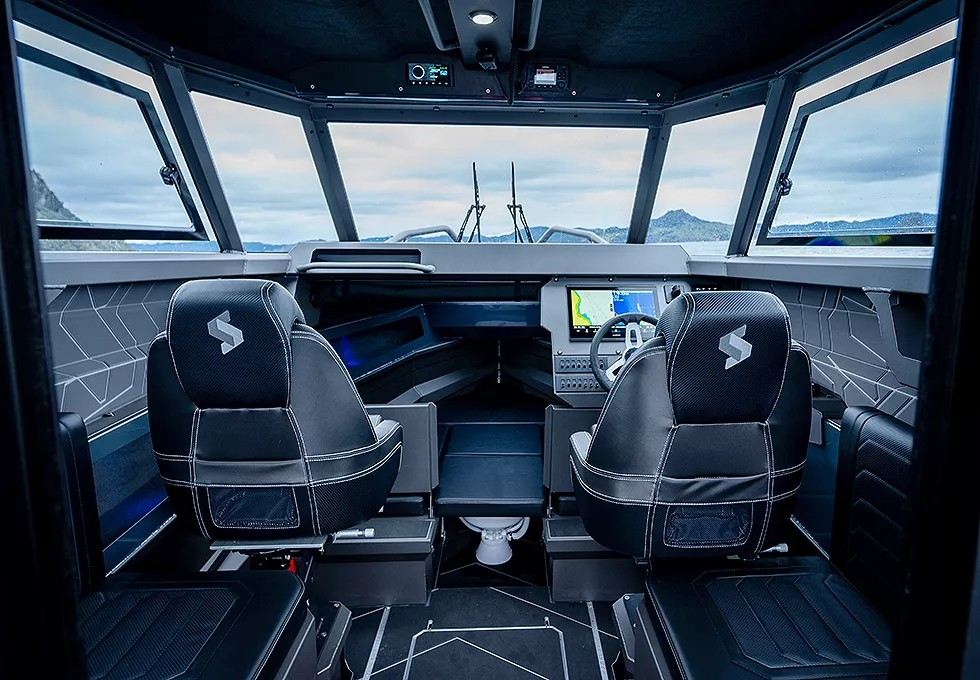

Supercab Cabin – Powder Coated Spica Pearl Grey
Supercab Roof With Powder Coated Rod Storage for 11x Rods
Hydraulic Steering
Flat Pane Safety Glass with Sliding Windows Port and Stbd
2x Led Lights Illuminating the Fish Deck – Dual Colour
Navigation Lights and all Round Anchoring Light
Twin Windscreen Wipers with Washers
Comprehensive Wiring Loom with 16x Switch Channels (2x 8)
Cabin Lighting – Dual Colour Led
Elite Bolster Seats on Premium Swivel Sliders
Gamechaser™ Trimount Transom (Twin 25in Or Single 30in)
2-Rung Boarding Ladder Starboard Side
Stowing Corner Seat/Steps in Transom
(Port Side is deleted with 3/4 Fishbox and Game Transom)
Washdown Pump with Hose and Gun
Stabicraft® Arrow Pontoon Life Ring (3mm)
6mm Hull Plate
400L /106gal Epa Approved Fuel Tank
Battery Storage Tray for up to 4x Large Batteries
Storage Compartment in Floor with Hinged and Latched Lid
6x Stainless Steel Rodholders and 4x Railblaza Multiholders
Eva Decking on Coaming Tops (4 Colour Choices)
Mechanically Fixed Heavy Duty Coaming Fendering
Airtight Arrow Pontoon Chamber Leak Test Certificate
Wingstyle Coamings
T Heavy Duty Towing Eye
ail and Cabin Graphics

Optional Features

	ADVENTURE	SPOTFISH	PROFISH
CABIN/CONSOLE		Optional	Optional
Foot Rest with Cargo Zone – Powder Coated Spica Pearl Grey			N/A
Handrails on Roof – Unpainted		N/A	N/A
Fusion Stereo and Speaker Blanking Plates
V-Berth with Cushions and Extensions – Frame Powder Coated Spica Pearl Grey	Optional
Canvas Drop Curtain with Zip Out Door	Optional
Eva Cabin Lining on Internal Cabin Sides and Dash Top	Optional
Flex Lining Inside Interior Coaming Pockets	Optional
Fusion RA210 Stereo with 2x Speakers	Optional		Optional
Handrails on Roof – Powder Coated Spica Pearl Grey	Optional	Optional
Fusion RA670 Premium Stereo with 4x Speakers	Optional	Optional
Ambient Led Lighting in Coaming Pockets, Cockpit and Cabin.	Optional	Optional
Hatches in Roof for Ventilation x2	Optional	Optional	Optional
Second Helm Station – no Steering supplied (Independent Of Rear Wall, Use For Electric Steer)	Optional	Optional	Optional
Lockable Double Bifold Rear Wall	Optional	Optional	Optional
Diesel Cabin Heater	Optional	Optional	Optional
Radar Mounting Bracket – Powder Coated Spica Pearl Grey	Optional	Optional	Optional
No Steering Fitted or Supplied – Steering Wheel supply only	Optional	Optional	Optional
Second Helm Station with Hydraulic Steering installed (Independent Of Rear Wall)	Optional	Optional	Optional
Portable Toilet with Mounting Bracket in V-Berth with Privacy Curtain	Optional	Optional	Optional
Electric Toilet with 29L Holding Tank in V-Berth with Privacy Curtain	Optional	Optional	Optional
Provision for 2x Downriggers with Loom and Doubling Plates	Optional	Optional	Optional
SEATING
Blade Style Helm Seat Support Frame – Powder Coated Spica Pearl Grey		Optional	Optional
Blade Style Passenger Seat Support Frame – Powder Coated Spica Pearl Grey		Optional	Optional
Seat Suspension System with Premium Swivel Slider on Storage Support Plinth – Starboard	Optional
Seat Suspension System with Premium Swivel Slider on Storage Support Plinth – Port	Optional
Fold Up Cabin Seating Starboard	Optional		Optional
Fold Up Cabin Seating Port	Optional		Optional
Storage Sleeper Seat Box Starboard (Converts To Berth with Port Side) – PWC Spica Pearl Grey	Optional	Optional
Storage Sleeper Seat Box Port (Converts To Berth with Starboard Side) – PWC Spica Pearl Grey	Optional	Optional
Storage Sleeper Seat Box Starboard with Travel Oven, Fridge and Drawer – PWC Spica Pearl Grey	Optional	Optional	Optional
70l Split Lid Icey Tek, R/H Opening with 2x Squabs – Port	Optional	Optional	Optional
70l Split Lid Icey Tek, L/H Opening with 2x Squabs – Starboard	Optional	Optional	Optional
TRANSOM
Insulated Central Fish Box with Sliding Baitboard – Powder Coated Spica Pearl Grey		Optional	Optional
Superfish Transom Box with LBT, Storage Drawer, 2x Leader Spool Holders and Sliding Baitboard	Optional
Transom Led Underwater Lights Blue/White x2	Optional	Optional
Insulated 3/4 Wide Fish Box with Sliding Baitboard – Powder Coated Spica Pearl Grey	Optional	Optional	Optional
Auxiliary Kicker Bracket Port	Optional	Optional	Optional
Lenco 12in x 4in Trim Tabs Installed	Optional	Optional	Optional
Zipwake KB300s 300mm Auto Trim Control System Installed	Optional	Optional	Optional
Boarding Platform Extensions with Cages and Dual Boarding Ladders Port and Starboard	Optional	Optional	Optional
Game Transom Box with LBT, 2x Storage Drawer, 2x Leader Spool Holders, Sliding Baitboard and 2x Tuna Tubes	Optional	Optional	Optional
Boarding Platform Extensions with Cages, Ladder Starboard and Auxiliary Bracket Port	Optional	Optional	Optional
Hand Rail added to front of Transom Box (All Transom Boxes)	Optional	Optional	Optional
70l Split Lid Icey Tek Port with No Squab For Underneath Transom Boxes (Compatible with All Transom Boxes)	Optional	Optional	Optional
HULL/FLOORING
Fully Welded Treadplate Floor			N/A
Closed Cell Baffling in Pontoon Chambers	Optional	Optional
Eva on Floor (4 colour choices)	N/A	Optional
Keel Line Wear Strip Upgrade	Optional	Optional	Optional
Heavy Duty Towing Eye with Additional Bracket for a Boat Catch	Optional	Optional	Optional
Provision Welded in to Bow for Vetus Bow Thruster (125mm Dia)	Optional	Optional	Optional
COAMINGS
Bow Blade-Rail with Provision for 14in Led Light Bar – Unpainted			N/A
Drum Winch with 100m of 8mm Rope and 10m of 8mm Chain	Optional	Optional
Light Bar installed in Bow Blade Rail	Optional	Optional
Bow Blade-Rail with Provision for 14in Led Light Bar – Powder Coated Spica Pearl Grey	Optional	Optional
Eva Lining in Exterior Cockpit Coaming Pockets – Black	Optional	Optional
External Coaming Handrails – Unpainted	Optional	Optional	N/A
Bracket for Bow Trolling Motor Port Side	Optional	Optional	Optional
Bow Boarding Ladder Starboard Side	Optional	Optional	Optional
External Coaming Handrails – Powder Coated Spica Pearl Grey	Optional	Optional	Optional
PAINT
No Paint		N/A	N/A
Stage 1 – Belting Up (Gloss)	Optional		N/A
Stage 1 – Belting Up (Metallic)	Optional	Optional	N/A
Stage 2 – Belting Up + Ext Pontoons (Gloss)	Optional	Optional
Stage 2 – Belting Up + Ext Pontoons (Metallic)	Optional	Optional	Optional
Stage 3 – Belting Up + Ext Pontoons + Int Pontoons + Transom (Gloss)	N/A	Optional	Optional
Stage 3 – Belting Up + Ext Pontoons + Int Pontoons + Transom (Metallic)	N/A	Optional	Optional
Tail and Cabin Graphics – Supply Only For Vinyl Wrapping	Optional	Optional	Optional

Engine

Max 350hp

BIG OFFSHORE POWER

Large V6 4.2 litre displacement to power large offshore boats.
Plasma fused sleeveless cylinders for reduced weight.
New eye catching shape and styling.
Optional Bolt-On Digital Electric Steering (DES).
Thrust enhancing reverse exhaust.
Enhanced lower unit for increased durability.
New TotalTilt™ function for fast and easy tilt up or down.
High output 70A alternator.

Garmin Sounder

See crisp images of structure and fish in stunning detail.

Navigate confidently with built-in Garmin Navionics+^™ charts for Australia and New Zealand.

Manage your marine experience from nearly anywhere with the ActiveCaptain^® app¹.

Connect your boat to share data, sonar and charts with your other compatible devices.

Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs.

Trailer

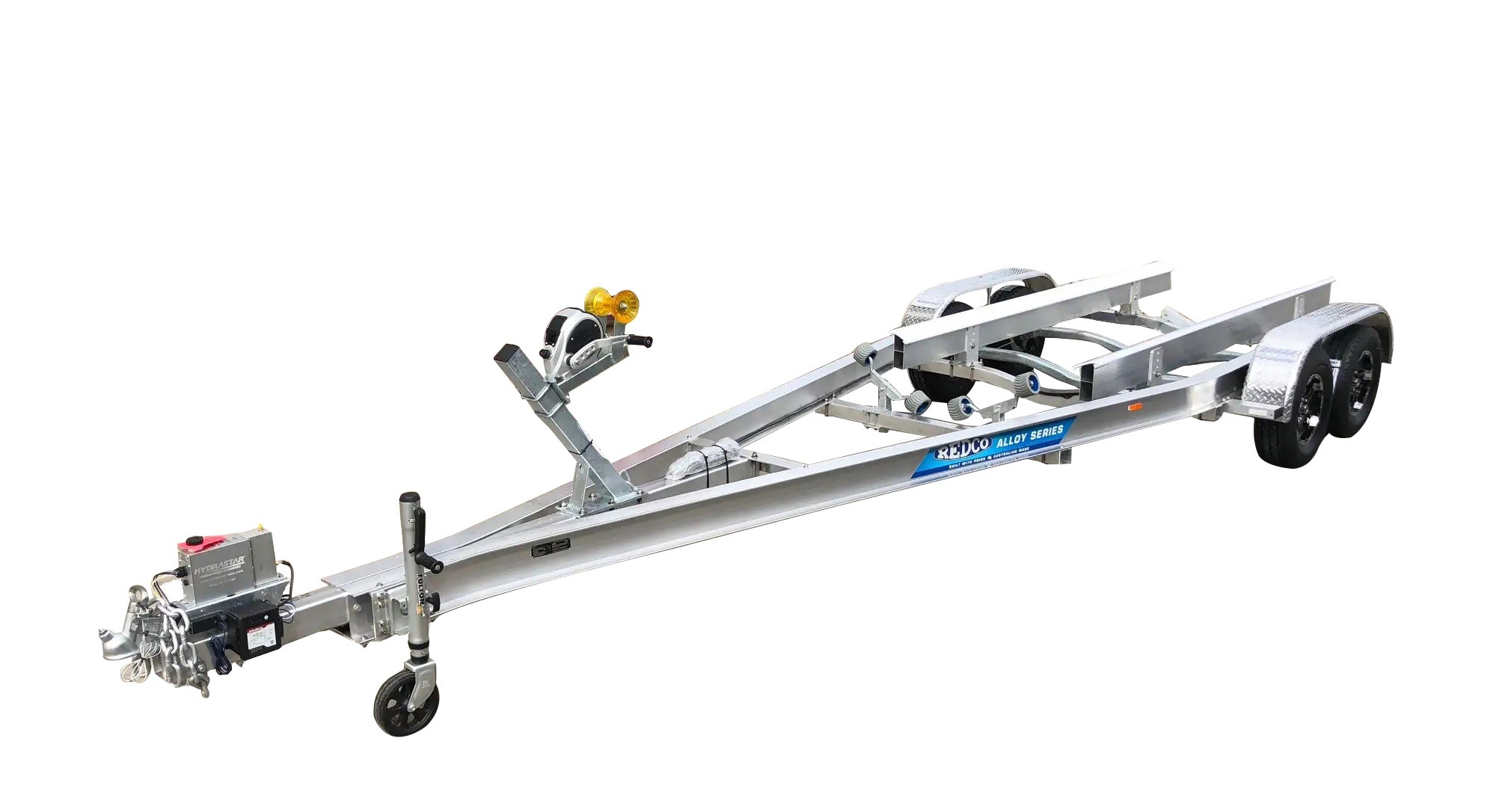

REDCO TA730T-EH

AUSTRALIAN MADE – BUILT WITH PRIDE TO PERFORM AND LAST

Heavy Duty Alloy I-Beam Construction w/316 Stainless Steel fasteners – no welds to crack
Quality Diamond Plate Polished Aluminium Mudguards
Dual Turnbuckle Bow Securing Safety Chain System
Quality Atlantic 10:1/5:1/1:1 Dynema rope winch and 10″ ARK H/D Jockey Wheel
Full LED Submersible Lighting
Large Support Bunks With Magnalene Covers To Suit Fibreglass And Aluminium Hulls
Stainless Steel Braided Brake Lines
Quaility Cast Aluminium Marinized Calipers And Vented Brake Rotors
Predator Black And Silver Alloy Wheels
High quality Independent Torsion Suspension Direct From The USA
Replaceable Stub Axles And Accu Lube Grease System

Why Stabicraft

Stability under power, or at rest

Your family and friends will be safe with the unequalled stability provided by Stabicraft’s airtight chambered hull design, either while under power or at rest.

Stabicraft’s chambered design allows occupants to move freely about the deck, even all on one side. Few other boats on the market can match Stabicraft’s positive buoyancy and design safety.

Even if a chamber is pierced, the separate water-tight chambers limit the damage, making a Stabicraft vessel virtually unsinkable.

Legendary toughness and durability

Apart from aiding buoyancy, Stabicraft’s life-ring chambers with internal hull bracing provide longitudinal rigidity to the boat.

The unique design of the life-ring affords more cockpit space than most other similarly styled boats.

What gives greater confidence are things not easily seen. For example, the entire hull is meticulously welded and finished to a standard that is without peer in the aluminium boat building industry.

Positivity bouyancy by design

Some boats float better than others. That’s design.

Advanced metal extrusion technology is used to create continuous sealed chambers that provide a life-ring on the upper-outer extremities of the boat. Each vessel’s life-ring contains at least three air-tight chambers.

The stepped molding of our slim-lined air-tight chambers, once attached to the hull, create a cushion of air that allows the boat to plane over rough water. With the addition of an air-tight chamber between the floor and hull these boats become virtually unsinkable.

Superior rough water handling

When travelling at speed, Stabicraft hulls create a cushion of water under each life-ring chamber, thus softening the ride for your family.

Observe a Stabicraft at speed compared to most other boats and you will immediately become aware of how little spray rises above the gunwales because it is deflected and trapped by the hull design. This contributes to passenger comfort and dryness of ride.
