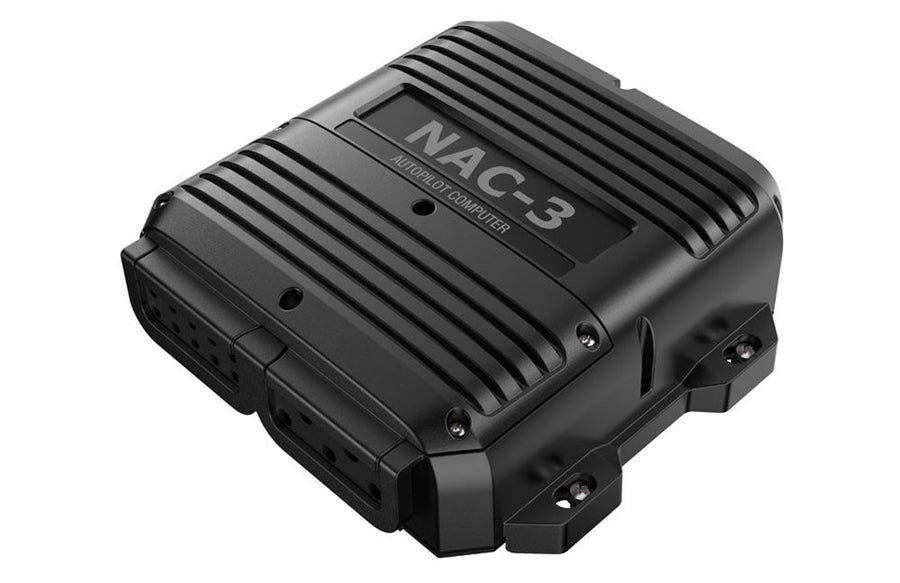

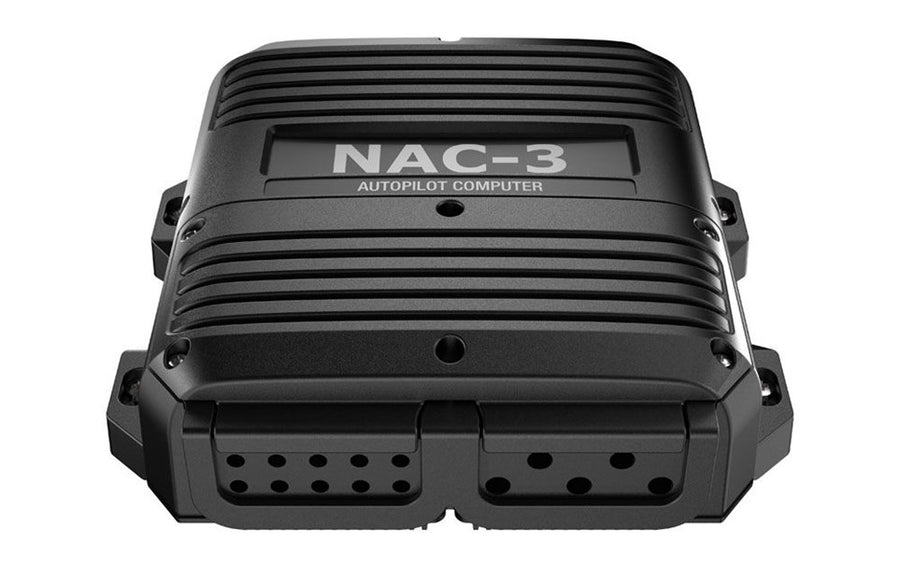

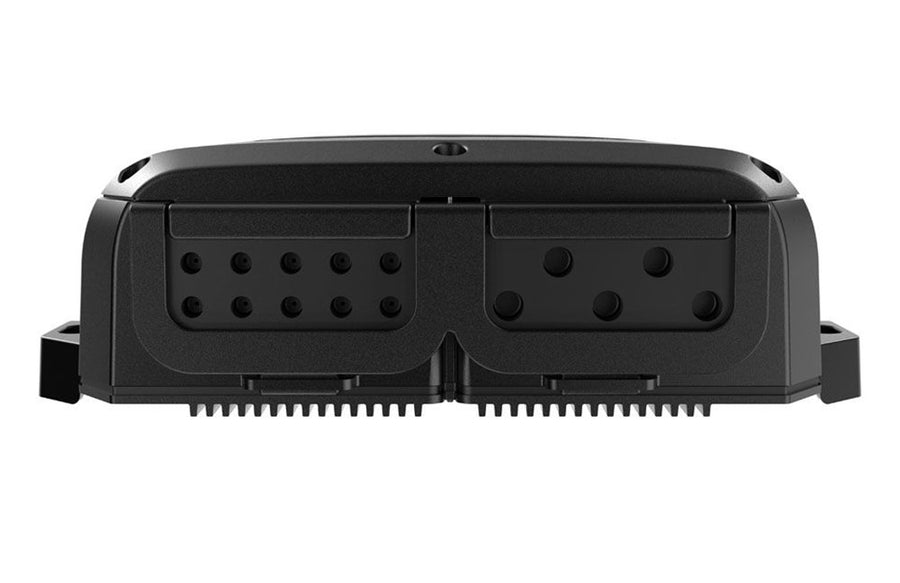

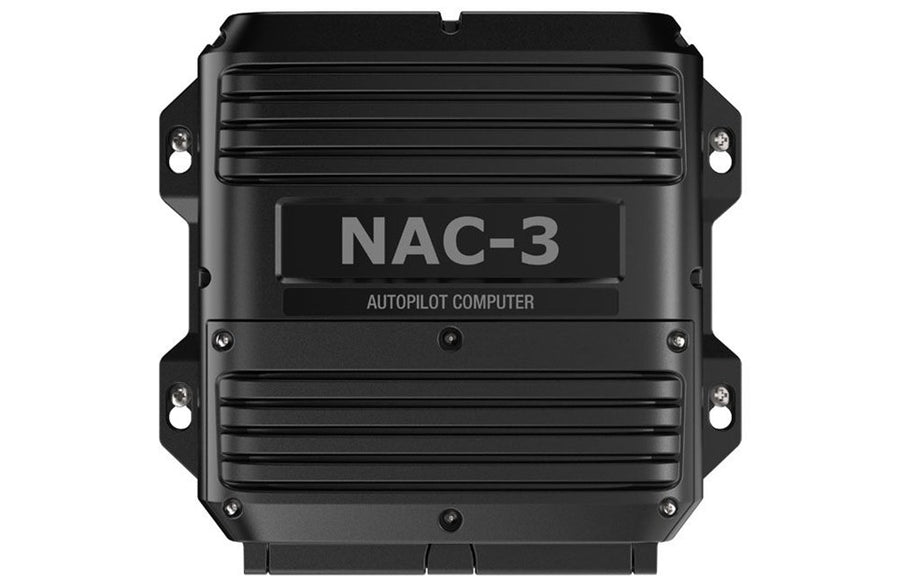

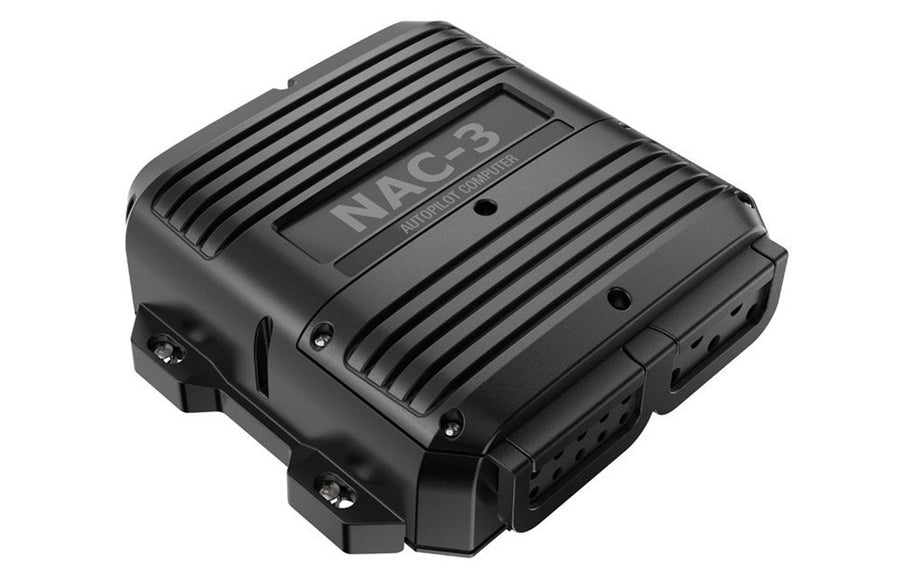

Lowrance / Simrad NAC-3 Autopilot

Lowrance / Simrad NAC-3 AutopilotLowrance / Simrad NAC-3 AutopilotLowrance / Simrad NAC-3 AutopilotLowrance / Simrad NAC-3 AutopilotLowrance / Simrad NAC-3 Autopilot

$0.00

Free shipping over $50

Lowrance / Simrad NAC-3 Autopilot - the brain behind your autopilot system.

It contains the control algorithms developed to drive a boat across a broad range of weather conditions and sea states, alongside the electronics needed to operate a hydraulic or mechanical drive unit, while also interfacing with other components including heading sensors and rudder feedback units. It was designed for boats 33 feet or greater in length and is rated to operate high-current hydraulic drives, mechanical drive units, and solenoid valves with a current rating of 30 Amps continuous (50 Amps peak).

Key Features

  • Recommended for boats above 10 metres (35 feet) in length
  • High-current output of 30 amps continuous, 50 amps peak
  • Clutch output (3 amps maximum)
  • Compatible with high-current drive pumps, mechanical drives, hydraulic linear drives, and solenoid valves
  • Virtual rudder feedback for simplified installation aboard outboard and sterndrive (inboard/outboard) boats
  • Supports RF25 rudder feedback units
  • NMEA 2000® connectivity to heading sensors, rudder feedbacks, dedicated autopilot controllers, and multifunction displays
  • NMEA 0183® input

What's in the box?

  • N2K-T-RD Network T-Connector
  • N2KEXT-2RD 2ft Network Extension Cable

View NAC™ -2 NAC™ -3 Commissioning Manual
