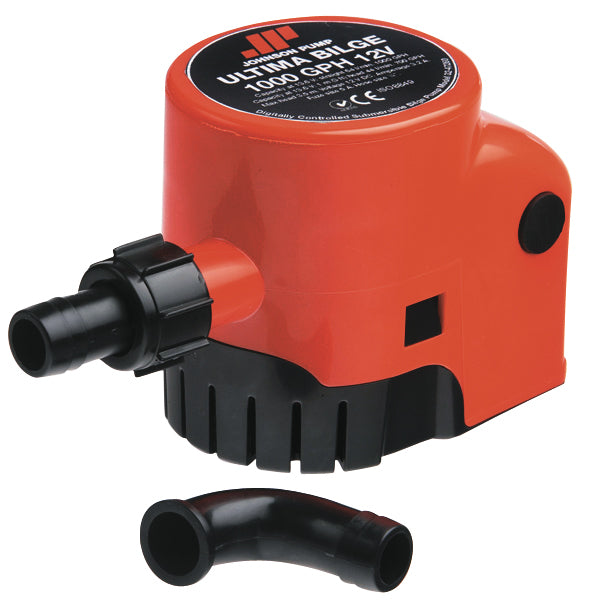

Johnson Pump 600/800/1000/1200GPH Automatic Bilge Pump

Johnson Pump 600/800/1000/1200GPH Automatic Bilge PumpJohnson Pump 600/800/1000/1200GPH Automatic Bilge Pump

$0.00

Free shipping over $50

Johnson Pump 600/800/1000/1200GPH Automatic Bilge Pump

Popular Johnson 12 volt bilge pump with compact integrated float switch Water cooled motor, snap-off base for easy cleaning. Sleek, reliable and compact unit with integrated patented Ultima ”œfield effect”� sensing technology switch, ready to install and run for years and years of unerring service.
  • Limited 3 Year Warranty
  • Compact, all-in-one unit
  • Integrated Ultima Switch technology in the pump body for trouble-free, automatic operation
  • Available in capacities 600 GPH, 800 GPH, 1000 GPH and 1250 GPH
  • UltimaBilge 600 GPH, 800 GPH and1000 GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
  • These pumps include both a straight and a 90° smooth ¾" elbow Dura-Port
  • UltimaBilge 1250 GPH includes threaded 1 1/4" & 1 1/8" discharge port
  • All version are delivered with a removable check valve
  • Voltage 12 V DC
  • No Mercury
  • Removable clip on basket design
  • Removable impeller cover allows for easy clean out
  • No tools needed for maintenance
  • Extremely energy efficient
  • Water-cooled motor for long service intervals
  • The Ultima Bilge pumps are 3-wire device and can be run in auto or manual override mode via the bilge control panel
  • Meets the international standard, ISO 8849 marine
Part No. Description Capacity 3 ft (0.9 m) head (13.6V) Capacity straight (13.6V) Voltage Amperage Fuse Size Connection
32-47258-008 Ultima Bilge 600 GPH 12V with integrated switch 32 L/min - 500 GPH 38 L/min - 600 GPH 12 V 2.5 A 5 A ¾"
32-47259-008 Ultima Bilge 800 GPH 12V with integrated switch 38 L/min - 600 GPH 51 L/min - 800 GPH 3 A 5 A ¾"
32-47260-008Johnson Pump 600/800/1000/1200GPH Automatic Bilge Pump Ultima Bilge 1000 GPH 12V with integrated switch 44 L/min - 700 GPH 64 L/min - 1000 GPH 3.2 A 5 A ¾"
32-47261-005* Ultima Bilge 1250 GPH 12 V with integrated switch 51 L/min - 800 GPH 79 L/min - 1250 GPH 3 A 5 A 1?" and1¼"
*) Does not include 1250 GPH Dura-Port connection

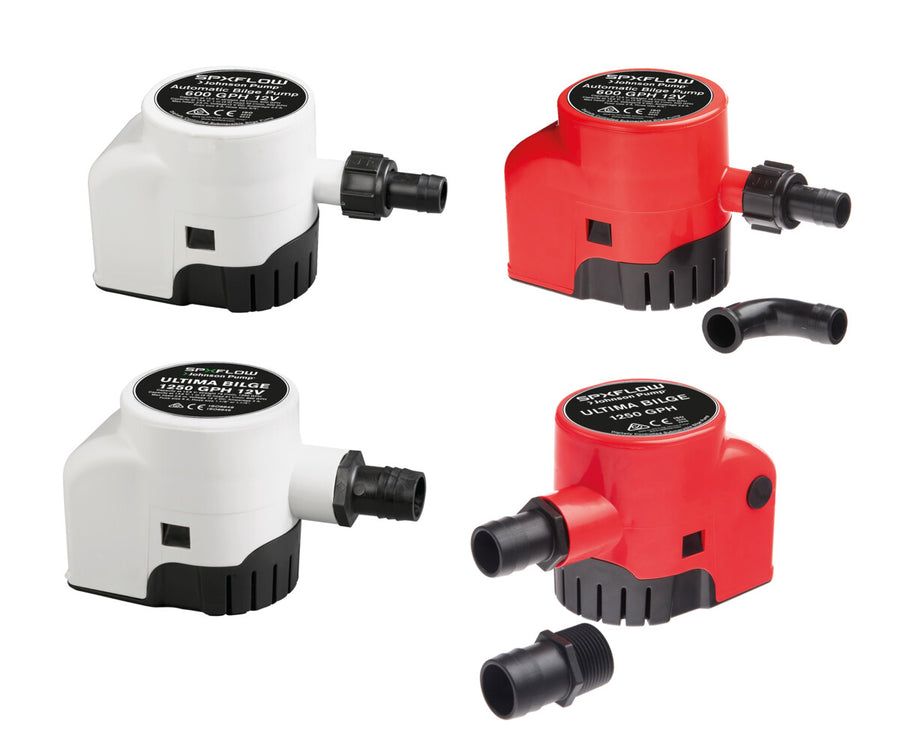

Note:Â Models sold in the US are white plastic; models sold in the rest of the world are manufactured in red plastic.

DIMENSIONS

600, 800 & 1000 GPH
Length 142 mm – 6"
Width 82 mm – 3.2"
Height 105 mm – 4.1"
Weight 0.66 kg – 1.5 lb
1250 GPH
Length 142 mm – 6"
Width 82 mm – 3.2"
Height 117 mm – 4.6"
Weight 0.66 kg – 1.5 lb

Instruction Manual
