Johnson Pump 500GPH/750GPH/1000GPH/1150GPH Bilge Pump

Johnson Pump 500GPH/750GPH/1000GPH/1150GPH Bilge PumpJohnson Pump 500GPH/750GPH/1000GPH/1150GPH Bilge Pump

$0.00

Free shipping over $50

Johnson Pump 500GPH/750GPH/1000GPH/1150GPH Bilge Pump

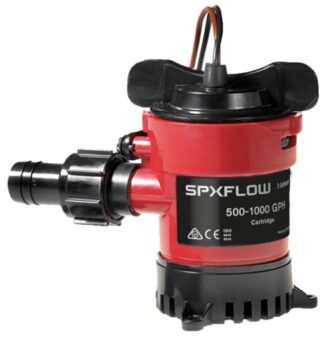

Popular Johnson 12 volt bilge pump. Water cooled motor, snap-off base for easy cleaning. The compact Johnson 500gph (30lpm) submersible cartridge bilge pump are supplied with both straight and smooth 3/4" elbow discharge ports that eliminate stress cracking caused by over-tightened hose clamps. Energy efficient, compact, all-in-one water-cooled motor/impeller units requires no tools for maintenance and boast long service intervals. Meets the international standard, ISO 8849 marine. Can be combined with an automatic float switch for automatic operation. Our Cartridge Pumps incorporate some of the most advanced features in the industry, features developed from service in a wide variety of uses including racing, cruising, sport fishing, and demanding commercial duties.
  • Limited 3 Year Warranty

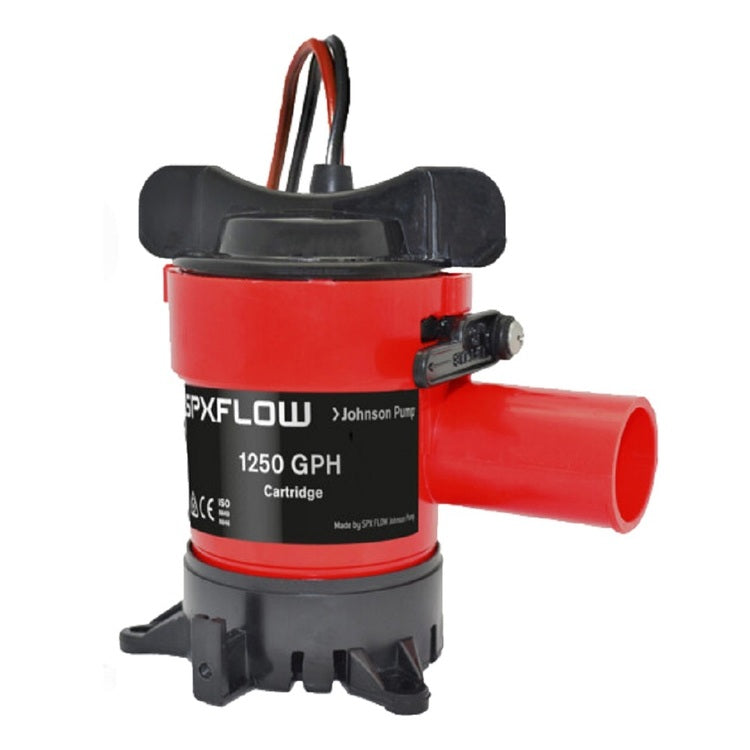

  • Capacities 500 GPH, 750 GPH, 1000 GPH and 1250 GPH
  • Extremely energy efficient
  • Water-cooled motor for long service intervals
  • Compact, all-in-one motor/impeller unit with stainless steel (SS2343) shaft
  • No tools needed for maintenance, no need for complete disassembly. You can now leave the pump casing attached to both the boat and the hoses.
  • 500 GPH, 750 GPH, and 1000 GPH pumps have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps
  • 500 GPH, 750 GPH, and 1000 GPH pumps are delivered including both a straight and a 90° smooth elbow Dura-Port as well as a removable check valve
  • Meets the international standard, ISO 8849 marine
  • Cartridge Pumps can be combined with either an automatic switch AS888, an electronic float switch or the Ultima Switch for automatic operation
Part No. Description Capacity 3 ft (0.9 m) head (13.6V/27.2V) Capacity straight (13.6V/27.2V) Voltage Amperage Fuse Size Connection Wire size
32-1450-01Johnson Pump 500GPH/750GPH/1000GPH/1150GPH Bilge Pump Cartridge Bilge Pump 500 GPH 12V 33 l/min - 525 GPH 40 l/min - 630 GPH 12 V 2.5 A 5 A ¾" 16 GA (1.3mm2)
32-1550-01Johnson Pump 500GPH/750GPH/1000GPH/1150GPH Bilge Pump Cartridge Bilge Pump 750 GPH 12V 44 l/min - 700 GPH 50 l/min - 800 GPH 12 V 3 A 5 A
32-1650-01Johnson Pump 500GPH/750GPH/1000GPH/1150GPH Bilge Pump Cartridge Bilge Pump 1000 GPH 12V 50 l/min - 800 GPH 63 l/min - 1000 GPH 12 V 3.2 A 5 A
32-1750-01*Johnson Pump 500GPH/750GPH/1000GPH/1150GPH Bilge Pump 60 l/min - 952 GPH 73 l/min - 1150 GPH 12 V 3 A 5 A 1?"
* Does not include Dura-Port connection

DIMENSIONS

Height (A)Â 4.41" (112 mm)
Width (B)Â 3.46" (88 mm)
Width (C)Â 3.15" (80 mm)
Weight 0.27 kg – 9.6 oz. 500 GPH – 1000 GPH
0.32 kg – 10.4 oz. 1250 GPH

Instruction Manual
