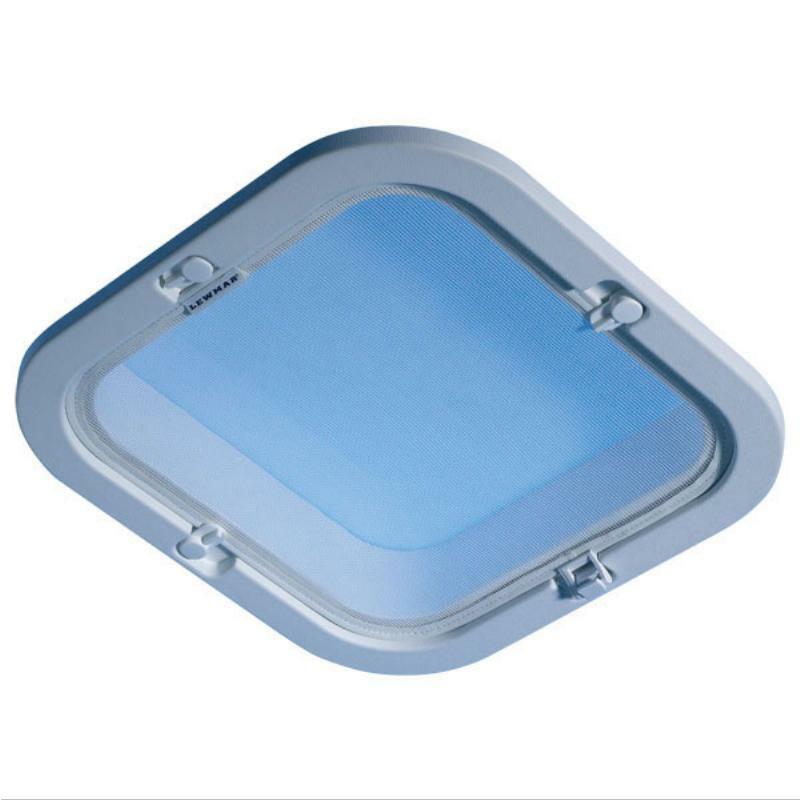

Lewmar ABS Plastic Trim and Flyscreen

The Low Profile hatch range Features a snag free soft styling which presents a sleek modern look. The range is ideal for use on a wide range of power craft and yachts. The smaller ventilation hatches are ideally suited to any deck location over toilets or galleys. The larger Low Profile hatch range can be used as a foredeck hatch on small to mid size power and sailboats. The hatch also Features Lewmar’s unique sealing system allowing easy acrylic replacement.

Features

• Size 30 and above feature outside handles
• Ability to quickly and easily replace acrylic lenses
• Ability to lock the hatch fully closed or in the vented position
• Friction hinges hold the lid open in any position up to 95 degrees (optional extra not included as standard)
• Anodised aluminium frame for corrosion resistance
• Curved upper frame for strength as well as modern styling
• CE Approved for Area 2A
• Available in round and D-Hatch configuration

To order replacement Acrylic with Seal, please contact BLA on 1300 252 725 with the following information
• Hatch overall size W x L x H
• Serial Number embossed in the acrylic
• Friction Lever or Telescopic Stay type

BLA CODE FRICTION HINGE	BLA CODE WITH STAY	BLA CODE FROSTED LENS	SIZE	OUTSIDE XXY LXW MM	CUT OUT X1 X Y1 LXW MM	RADII R MM	RADII R MM	HEIGHT Z MM	ACRYLIC MM	INTERNAL TRIM KIT & INSECT SCREEN	INTERNAL TRIM KIT COLOUR	INSECT SCREEN ONLY TO SUIT
170050	–	–	00	281 x 281	211 x 211	72.5	42.5	25	8	170200	White	170240
170052	–	–	03	246 x 301	176 x 231	72.5	42.5	25	8	170202	White	170241
170054	170056	–	10	330 x 330	260 x 260	72.5	42.5	25	8	170204	White	170242
170058	–	–	20	272 x 417	202 x 347	72.5	42.5	25	8	170208	White	170246
170060	170062	170005	30	397 x 527	327 x 457	72.5	42.5	25	8	170214	White	170250
170064	170066	170010	40	491 x 491	421 x 421	72.5	42.5	25	8	170216	White	170252
170068	–	–	41	246 x 491	176 x 421	72.5	42.5	25	8	170218	White	170254
170070	170072	–	44	512 x 512	442 x 442	72.5	42.5	25	8	170220	White	170256
170074	170076	–	50	447 x 577	377 x 507	72.5	42.5	25	8	170222	White	170258
170078	170080	–	54	462 x 577	392 x 507	72.5	42.5	25	8	170226	White	170262
170082	170084	–	60	577 x 577	507 x 507	72.5	42.5	25	10	170228	White	170264
170160	–	–	65	560 x 675 x 560	see drawing above	72.5	42.5	25	10	170230	White	170266
170162	–	–	65	658.3 x 629 x 504.5	see drawing above	72.5	42.5	25	10	–	–	–

Accessories

172180 Handle Kit Small – LH
SP17170280 Joining Insert
172181 Handle Kit Small – RH
SP17170292 Hinge Kit (Friction)
172196 Large Handle Kit Size 30+
SP17170268 Friction Lever
SP17170260 Catch Block
SP17170296 Hinge Caps x10
SP17170266 Large Gasket Friction Lever
SP17170376 Handle Hatch External LP MP (Pair)

N.B. Insect screens can only be used with trim kits. Trims also available in Ivory.
