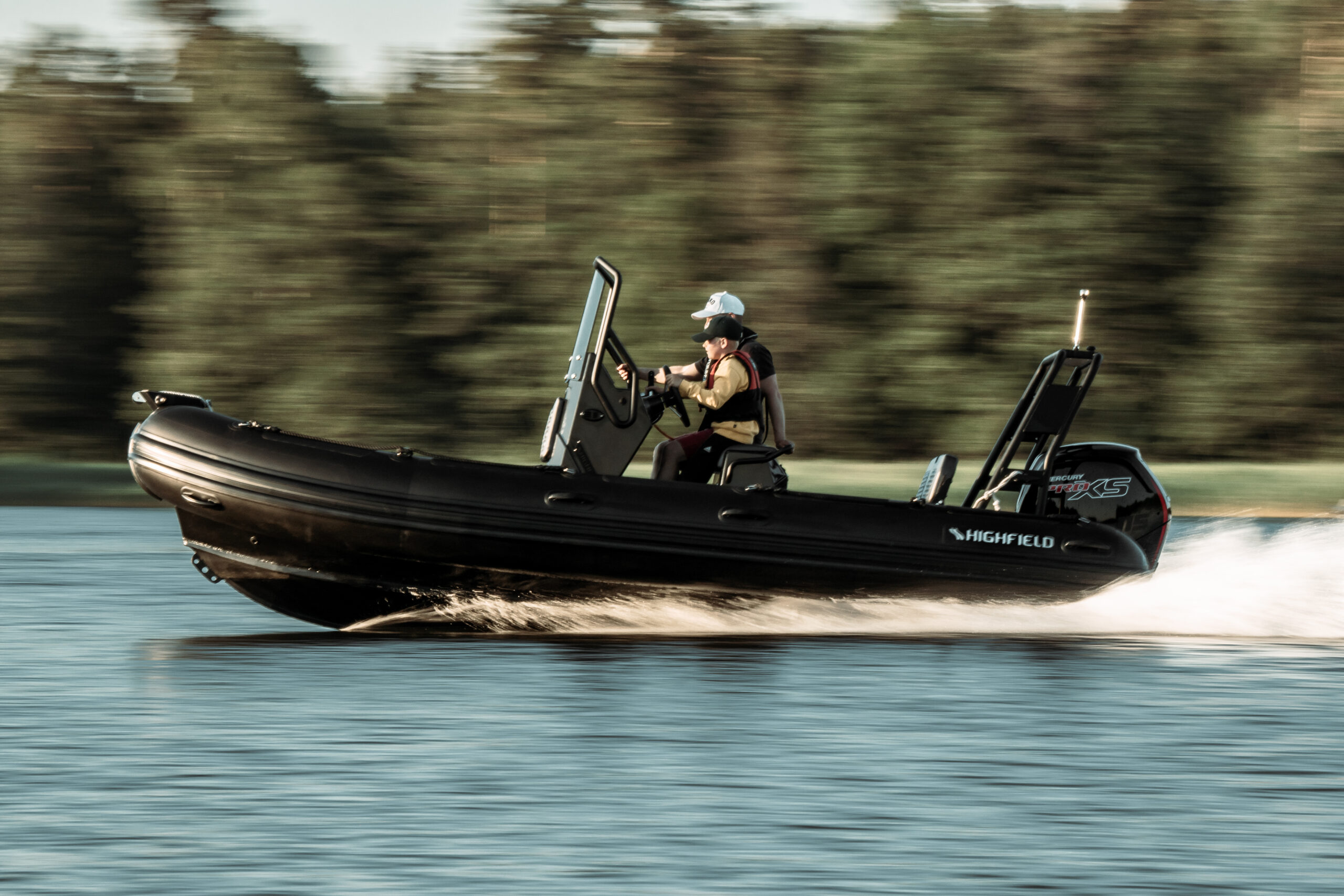

PATROL 540 - WHETHER YOU WORK HARD OR PLAY HARD
Patrol 540
Ideal for both family distance cruising and commercial or club use, including teaching, charter, and harbour work. The Highfield Patrol 540 really is the perfect all-rounder – quick, dry and economical. With their super deep V, wide chines, and large diameter tubes, the Highfield Patrol 540 offers high manoeuvrability, high safety, and a soft dry ride even in the roughest conditions. They’re designed to carry large loads and planes quickly and easily with modest horsepower. For charter boats and commercial operators, the modular set-up option means that we can build a layout that suits your requirements. The Highfield Patrol 540 is rated for 12 persons and 115hp. When safety, toughness, and reliability really matter, the Patrol range should be at the top of your list of boats to consider.
Specifications
| Patrol 540 | Patrol 600 | |
| Overall Length | 5.40m | 6.16m |
| Internal Length | 4.30m | 4.37m |
| Overall Width | 2.48m | 2.48m |
| Internal Width | 1.33m | 1.32m |
| Dead Rise | 24° | 26° |
| Tube Diameter | 52cm | 56cm |
| Number of Air Chambers | 6 | 6 |
| Maximum Load | 1262kg | 1458kg |
| Maximum People | 12 | 14 |
| Boat Only Weight | 494kg | 694kg |
| Recommended Power | 100hp | 115hp |
| Maximum Power | 115hp | 150hp |
| Engine Shaft | Extra Long | Extra Long |
| Fuel Tank | 105L | 140L |
| Design Category | C | C |
Standard Features
- ORCA® Hypalon or Valmex® PVC tube
- Flush mount non-return valves
- High tensile chromated & powder coated aluminium hull
- Integrated transom supports
- Self-draining deck
- Integrated under-deck fuel tank
- Integrated rear seat with cushion
- Engine well
- Stand-up console
- Bolster seat
- Bow locker with seat cushion
- Lifting points and towing eyes
- Anti-slip deck
- Heavy duty rub strake
- Full-length keel guard
- Highfield dry bag
- Foot pump, paddles, repair kit
- Leaning post
Standard Features
LIGHT, EFFICIENT, VERSATILE POWER
- 1832cc four-cylinder engine.
- Multi Point Electronic Fuel Injection (EFI).
- Quiet, smooth and powerful four cylinder design.
- Variable trolling for low speed lure fishing.
- Exclusive YDC alloy for maximum corrosion protection.
- Freshwater flushing device for easy and quiet maintenance.
- Compatible with all of Yamaha’s premium colour and digital gauges.
- Compatible with Yamaha’s Shift Dampening propellers.

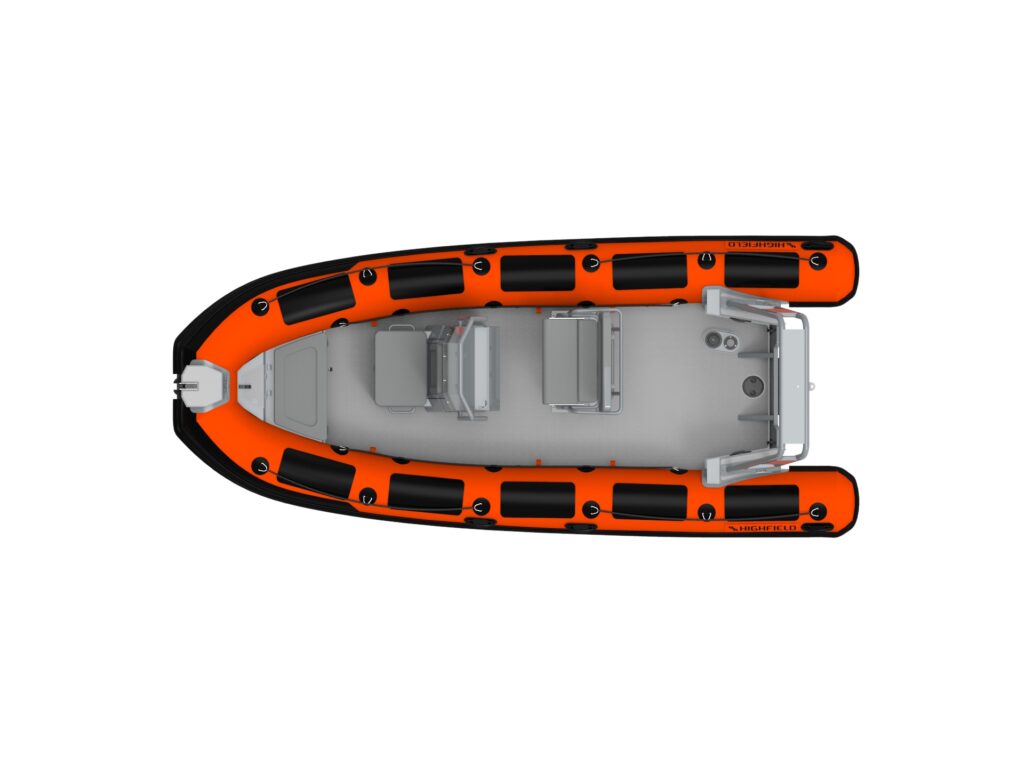

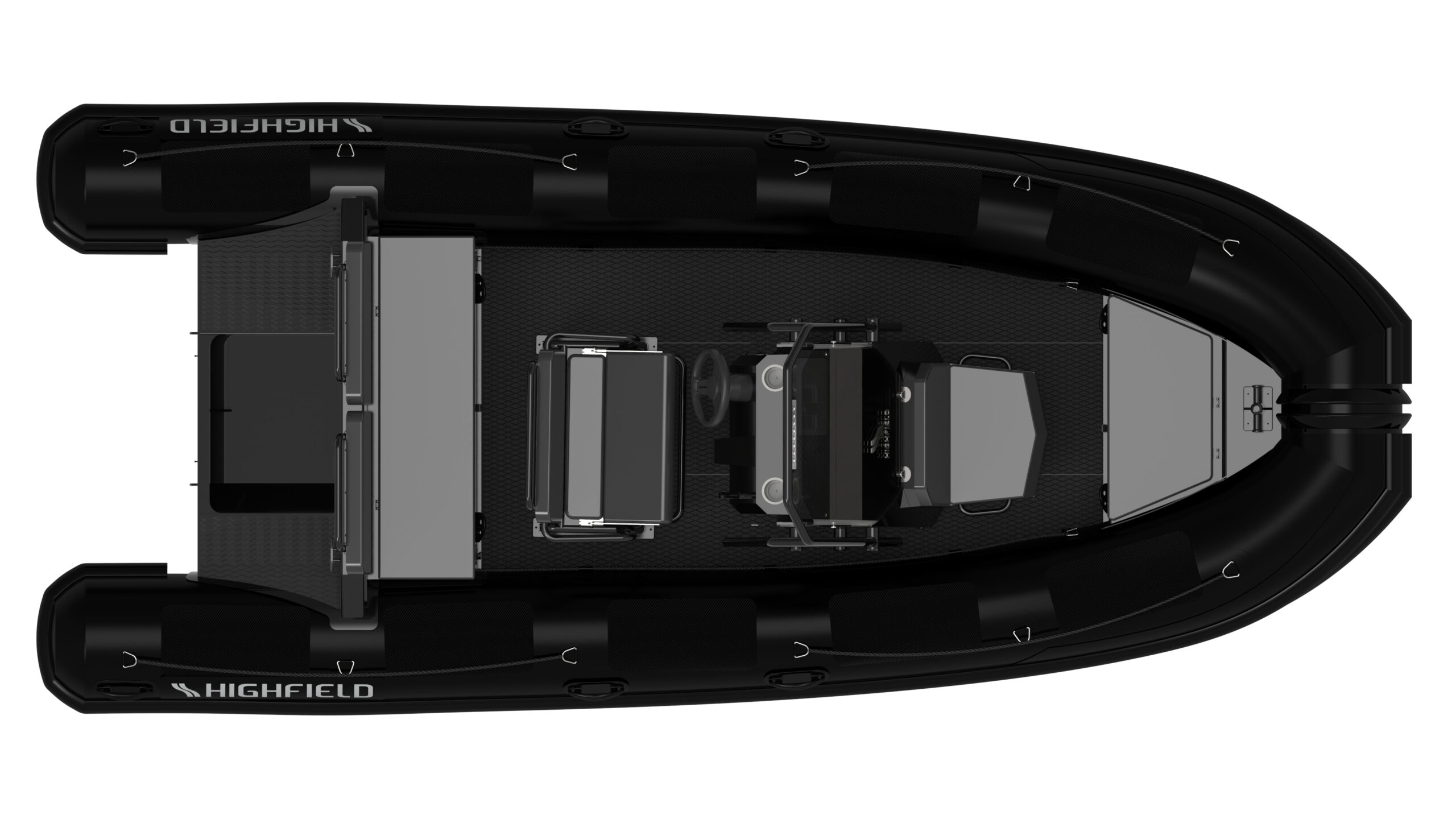

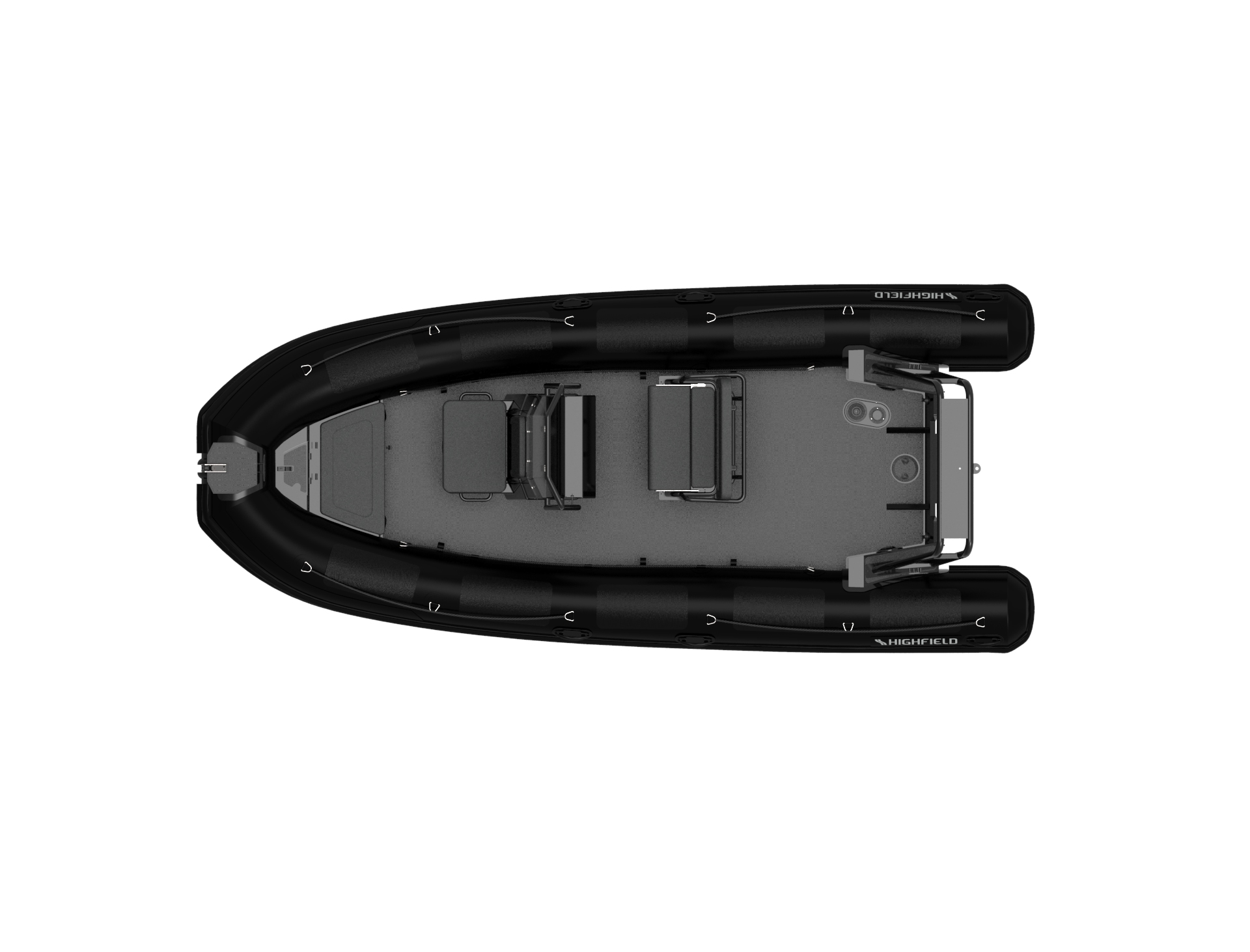

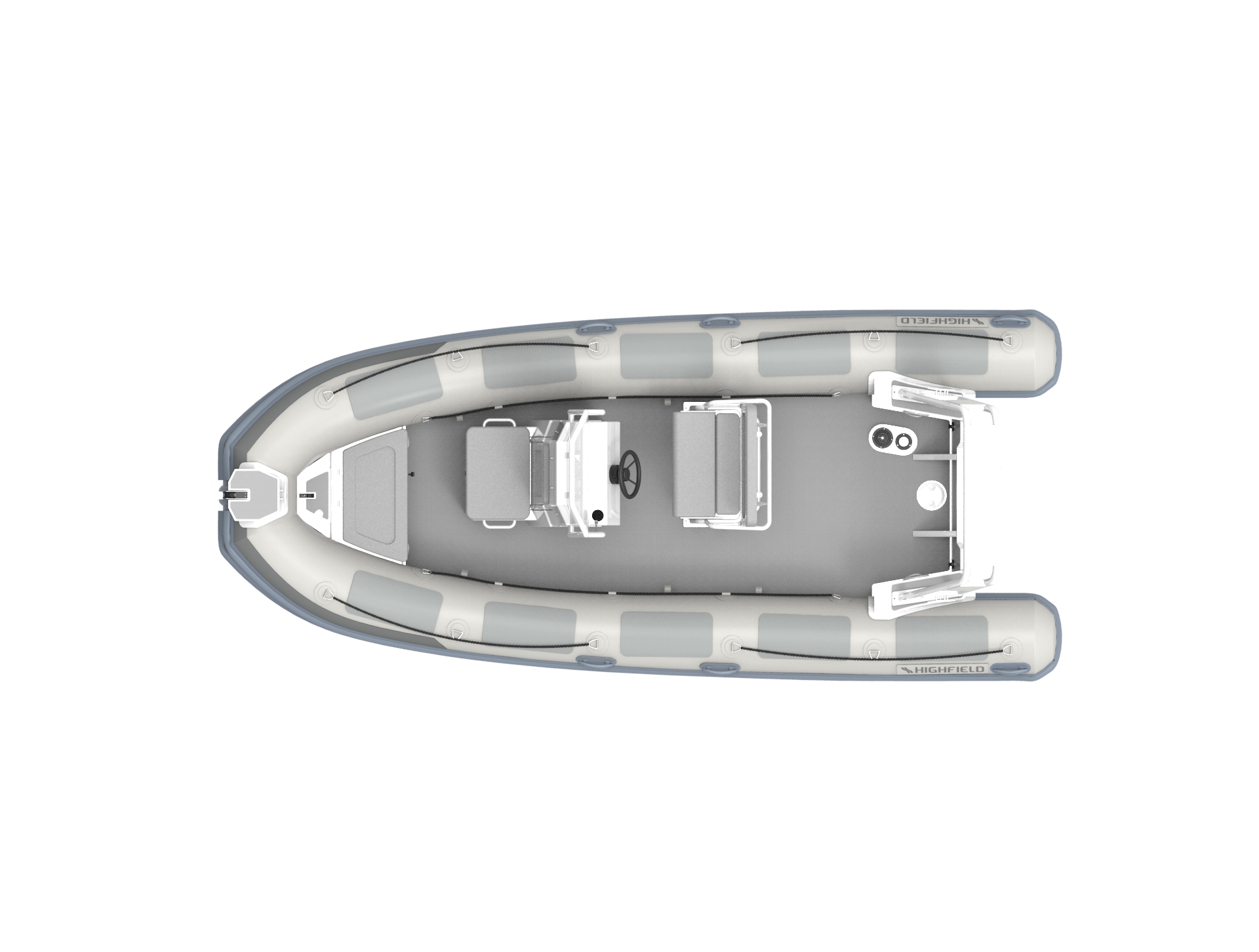

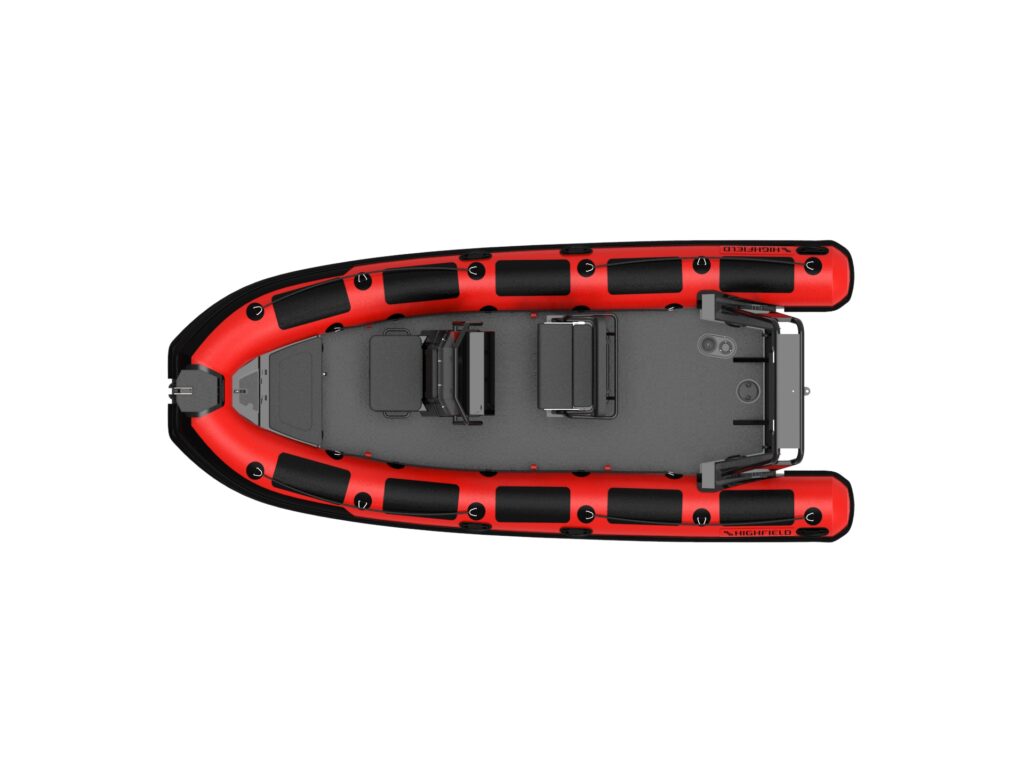

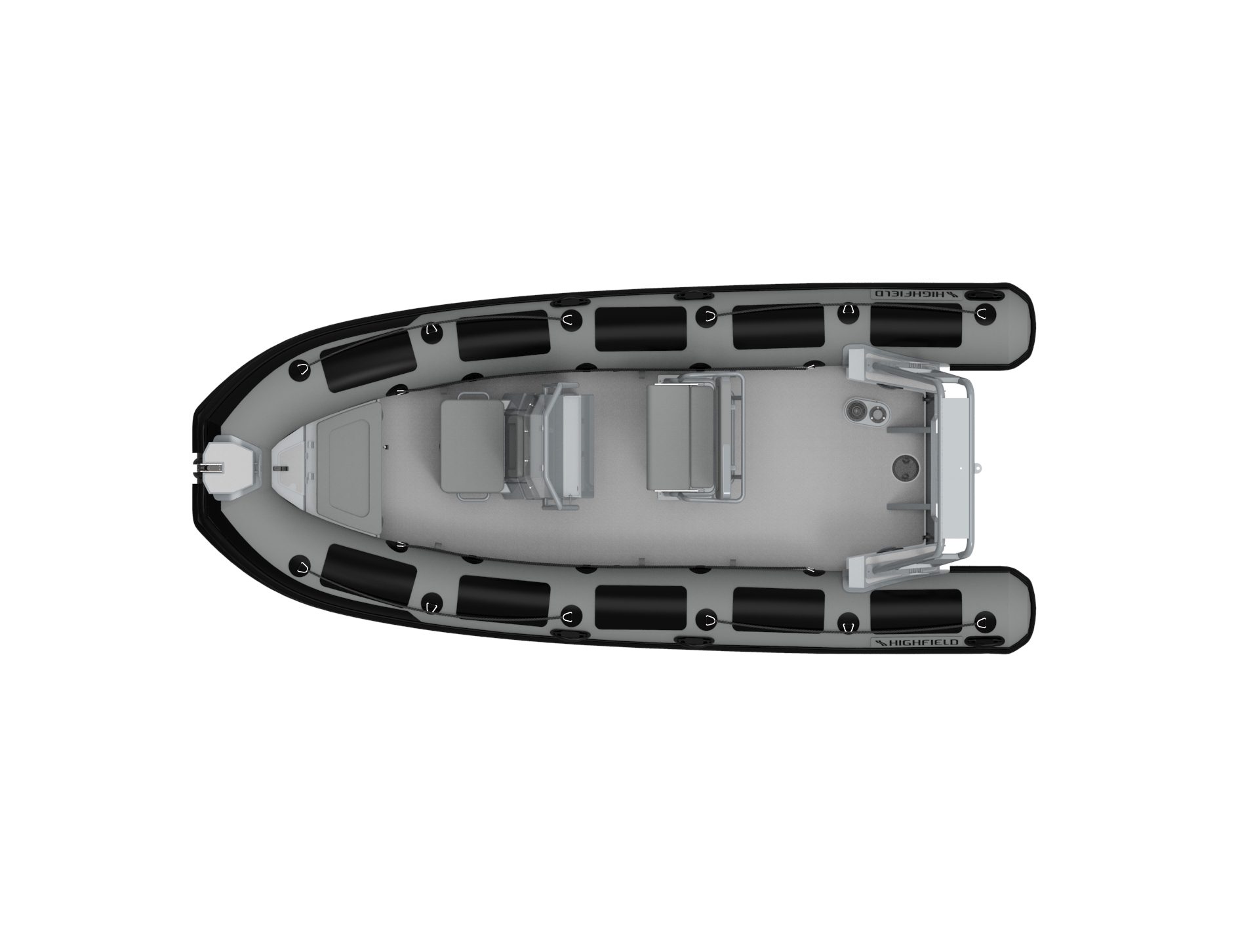

COLOUR OPTIONS
FEATURES
The Patrol 540 has more features and options than other RIBs in its Class.
Open layout with room for extra passengers to sit on the tubes
Upright console option with double seat or single set jockey style
Bow locker for gear in front
Rear arch with upright console option
Bow step with anchor roller and heavy duty cleat
Large heavy duty tubes with double rubrail
Bow seat with grab lines for passangers
Upright console with large windscreen and grab rail
