PATROL 420 - BUILT FOR WORK

People
8

Fuel Tank
40L

Max Power
60HP

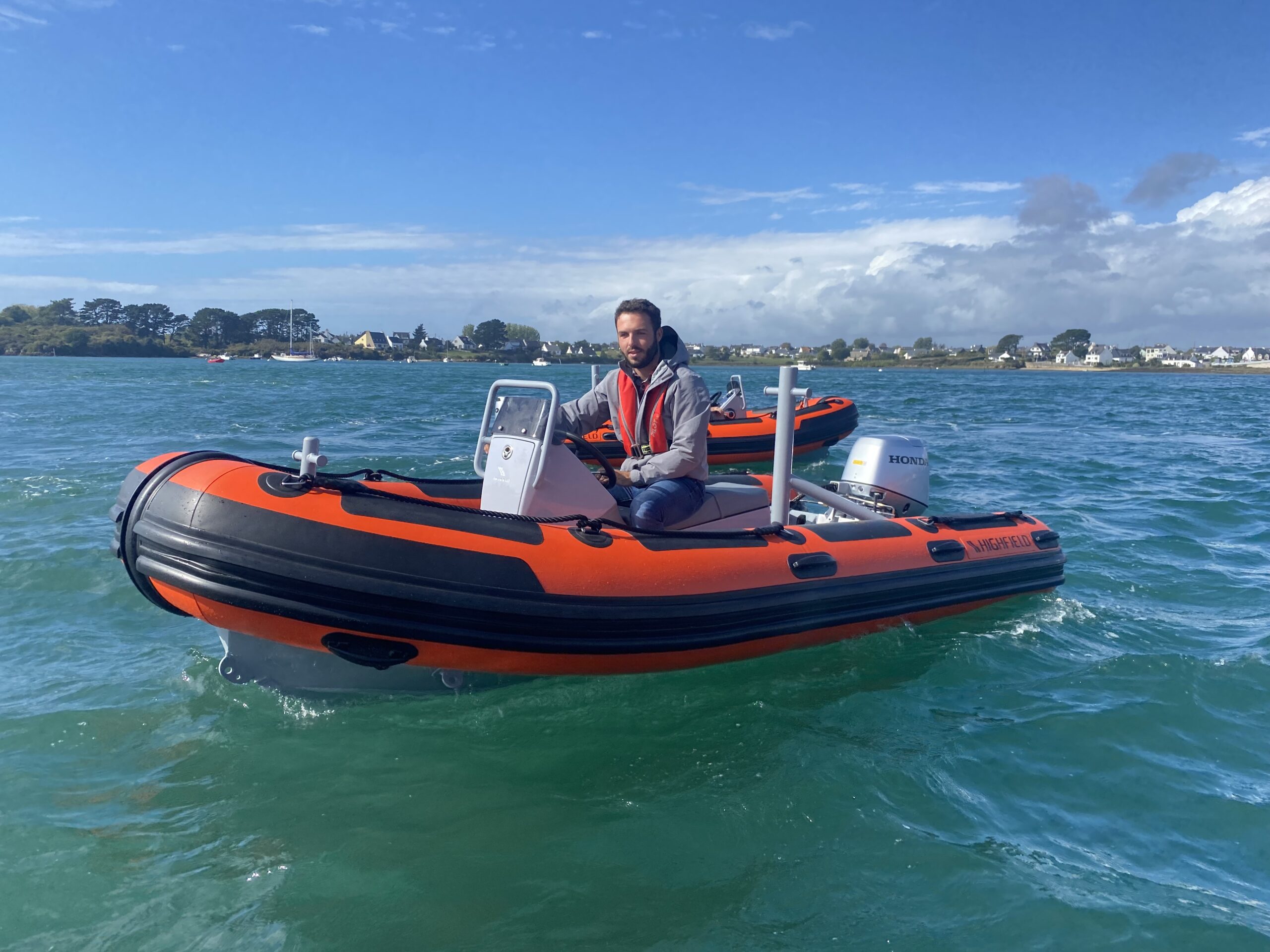

Highfield Patrol 420

The Highfield Patrol 420 is ideal for both family distance cruising and commercial or club use, including teaching, charter and harbour work. The Highfield Patrol 420 really is a perfect all-rounder – quick, dry and economical.  With their super deep V, wide chines, and large diameter tubes, the Patrol series offers high manoeuvrability, high safety, and a soft dry ride even in the roughest conditions. They’re designed to carry large loads and planes quickly and easily with modest horsepower.

For charter boats and commercial operators, the modular set-up option means that we can build a layout that suits your requirements giving the option of bolster and seat or jockey console. The Highfield Patrol 420 is rated for 8 persons and max rated for 60hp.  When safety, toughness, and reliability really matter, the Patrol range should be at the top of your list of boats to consider.

Specifications

Patrol 420 Patrol 460 Patrol 500
Overall Length 4.21m 4.59m 5.00m
Internal Length 3.17m 3.53m 4.16m
Overall Width 2.10m 2.11m 2.28m
Internal Width 1.05m 1.05m 1.20m
Dead Rise 20° 20° 24°
Tube Diameter 47cm 47cm 52cm
Number of Air Chambers 4 5 6
Maximum Load 823kg 944kg 1051kg
Maximum People 8 9 10
Boat Only Weight 241kg 275kg 441kg
Recommended Power 60hp 60hp 90hp
Maximum Power 60hp 80hp 100hp
Engine Shaft Long Long Long
Fuel Tank 40L 40L 40L
Design Category C C C

Standard Features

  • ORCA® Hypalon tube fabric
  • Flush mount non-return valves
  • High tensile chromated & powder coated aluminium hull
  • Integrated transom supports
  • Self-draining deck
  • Integrated under-deck fuel tank
  • Integrated rear seat with cushion
  • Choice of a stand-up console with bolster seat or jockey style
  • Bow locker with seat cushion
  • Lifting points and towing eyes
  • Anti-slip deck
  • Heavy duty rub strake
  • Full-length keel guard
  • Highfield dry bag
  • Foot pump, paddles, repair kit
  • Leaning post

Yamaha Engine

THRILLING ALL AROUND PERFORMANCE

  • 996cc four-cylinder engine.
  • Award winning engine designs with class leading power and performance.
  • Forward control or optional multi-function tiller.
  • Variable trolling for low speed fishing.
  • Exclusive YDC alloy for maximum corrosion protection.
  • Freshwater flushing device for easy and quiet maintenance.
  • Compatible with all of Yamaha’s premium colour and digital gauges.

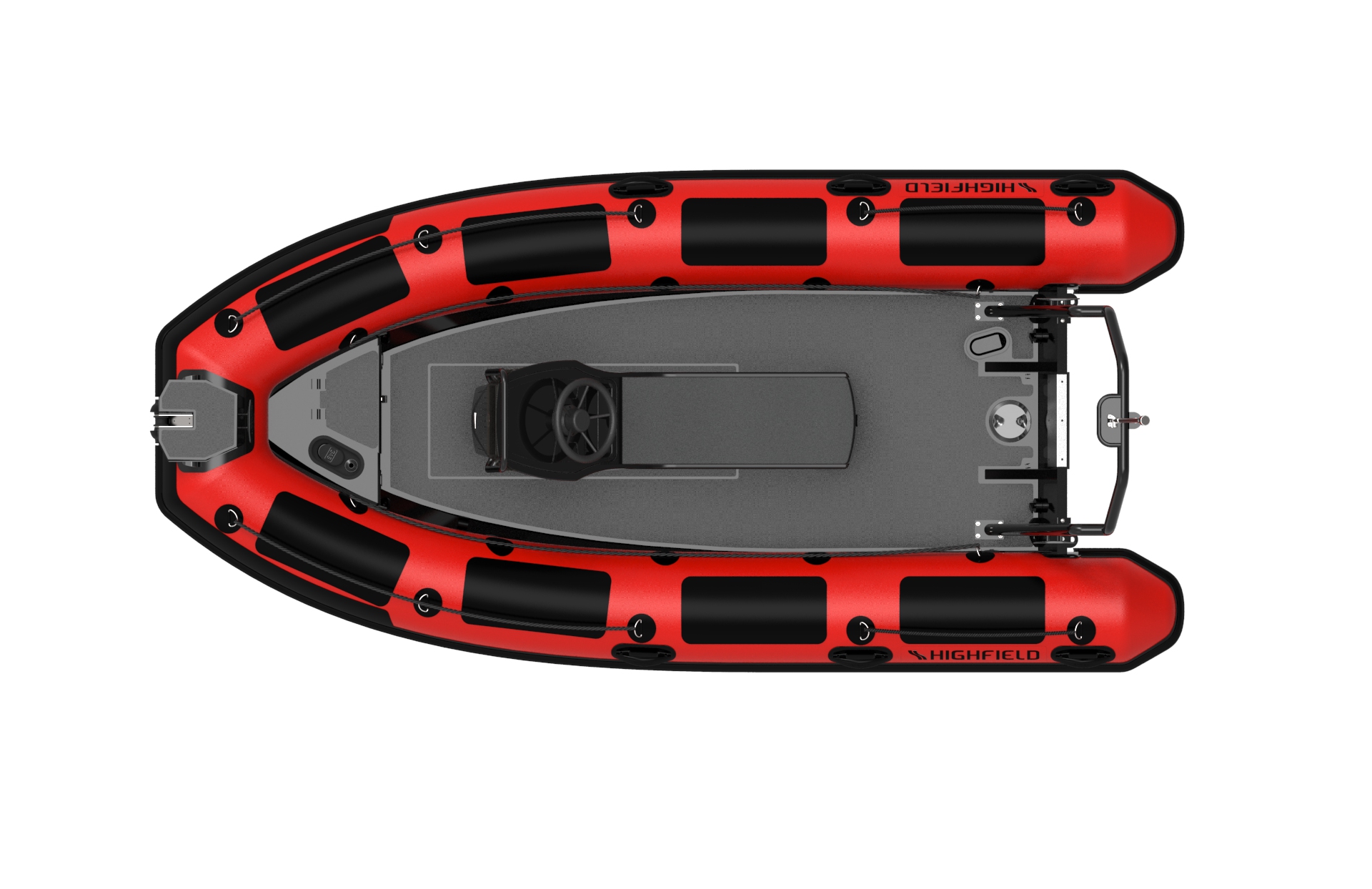

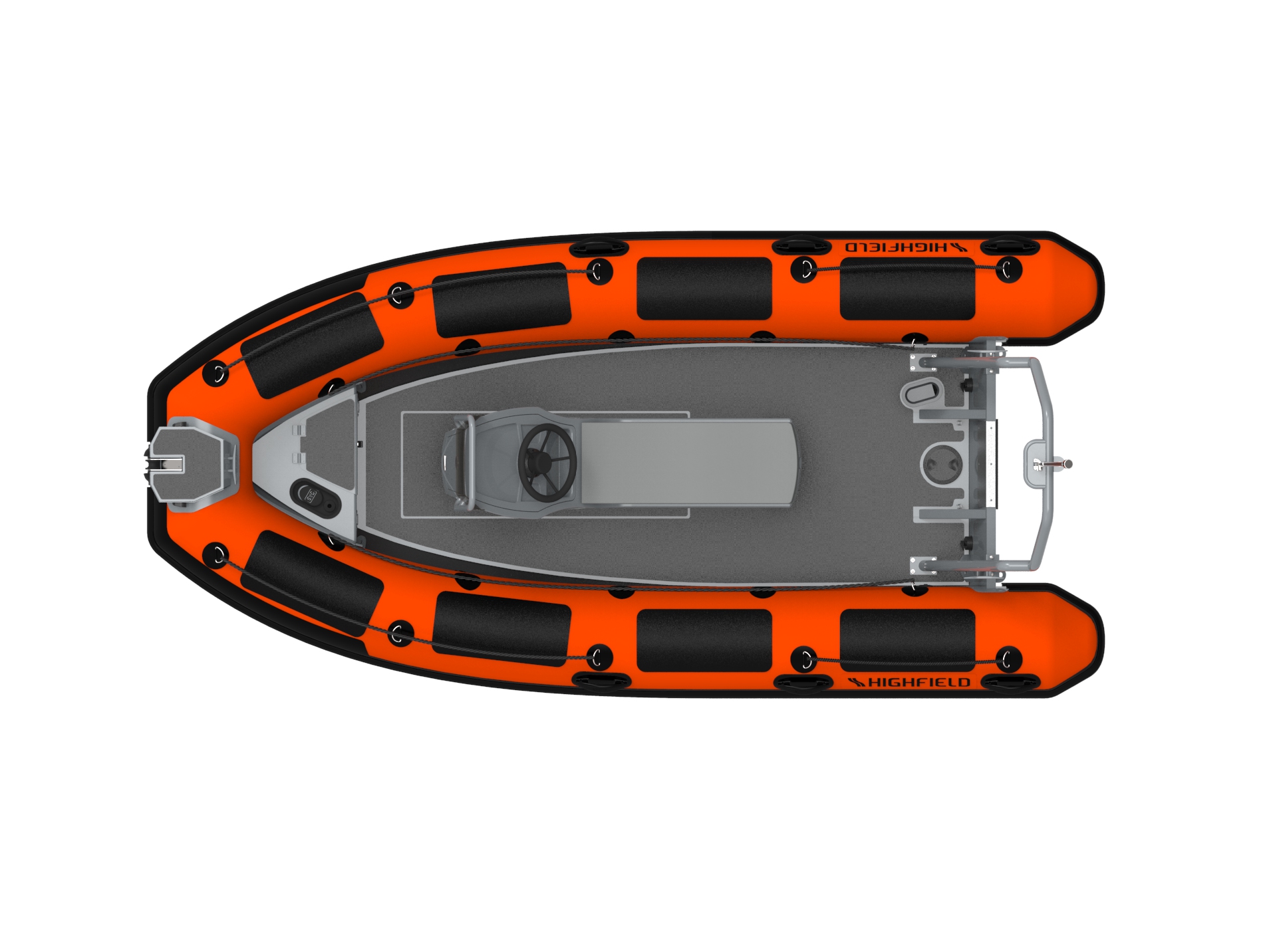

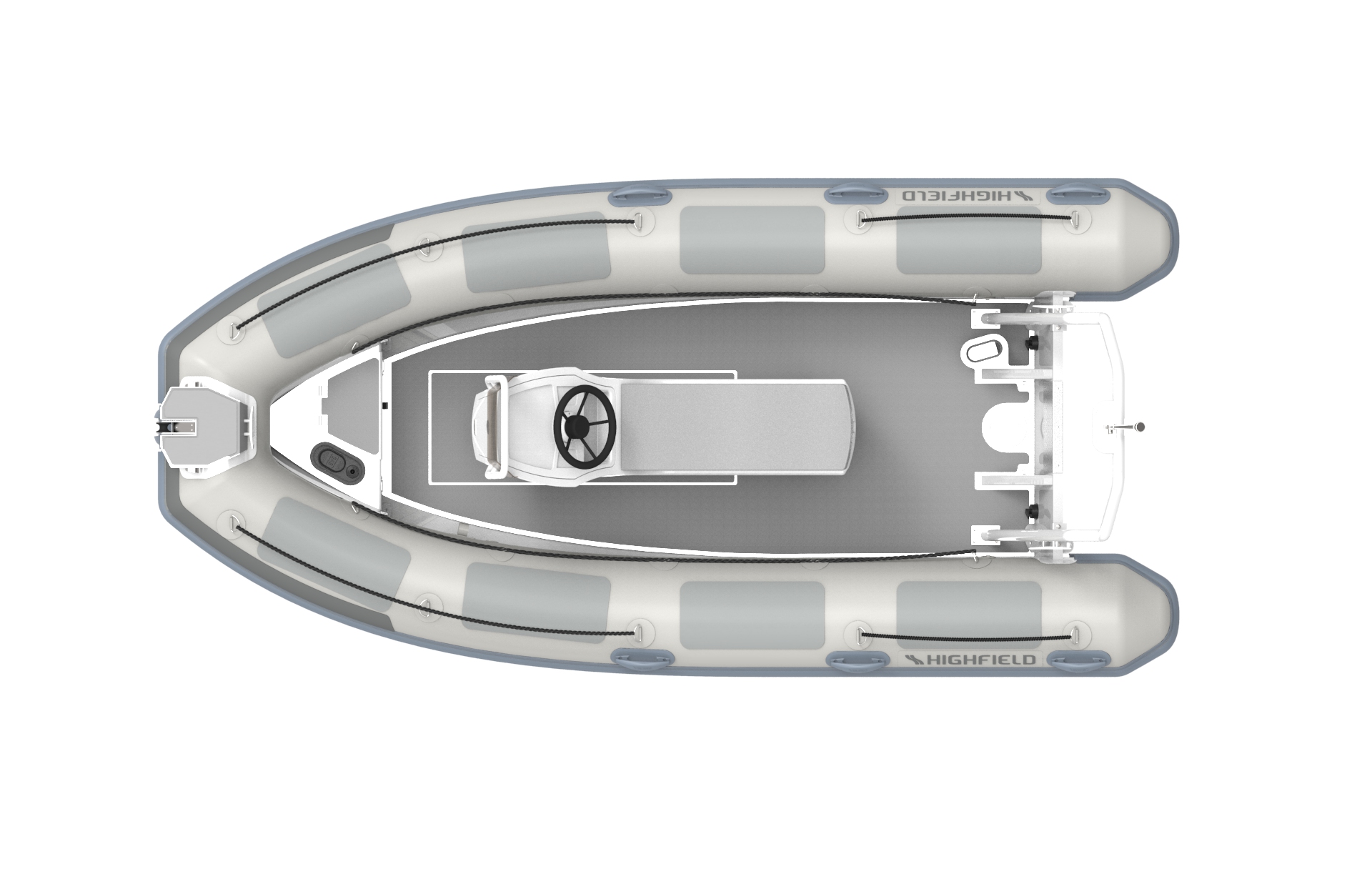

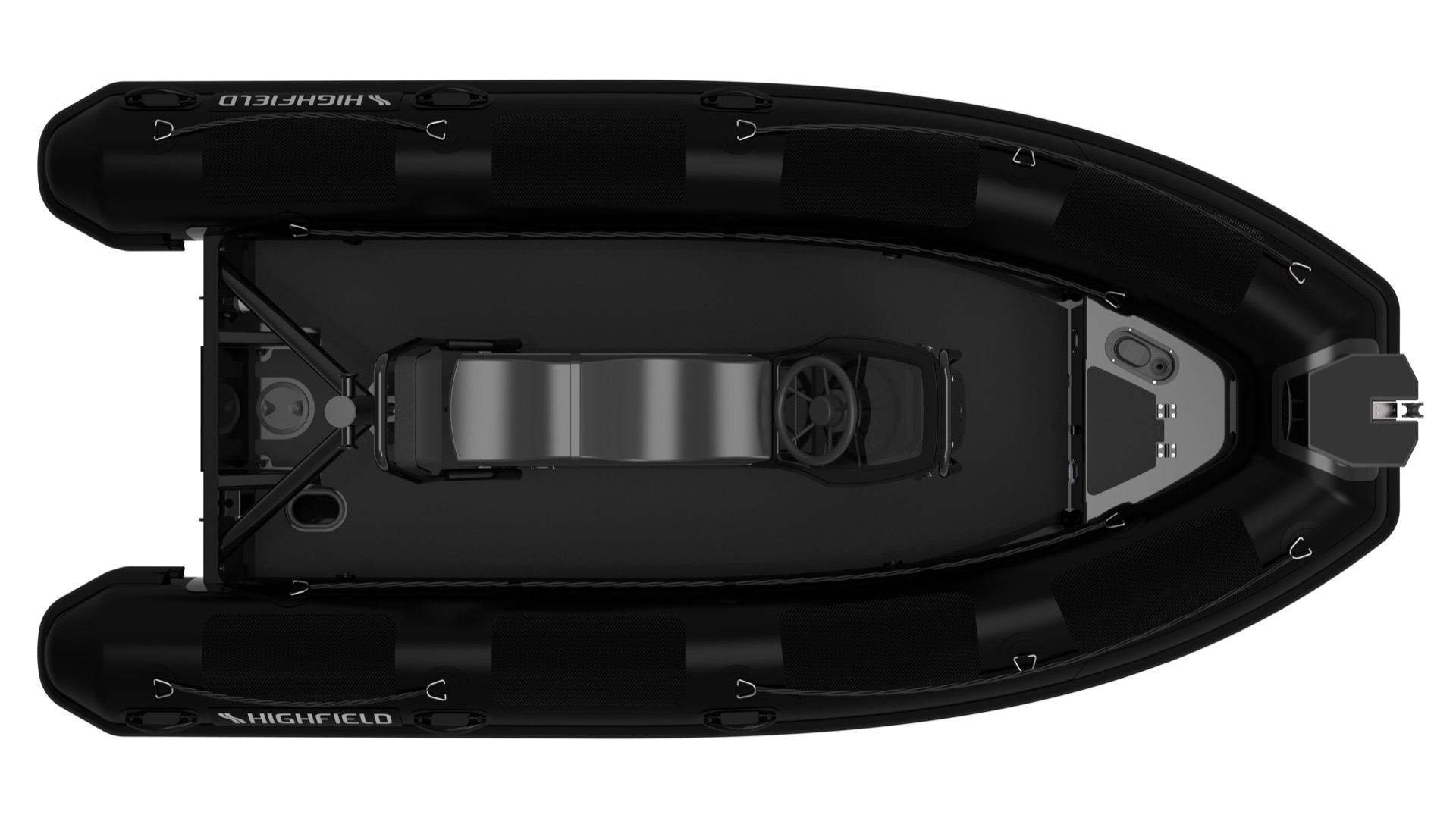

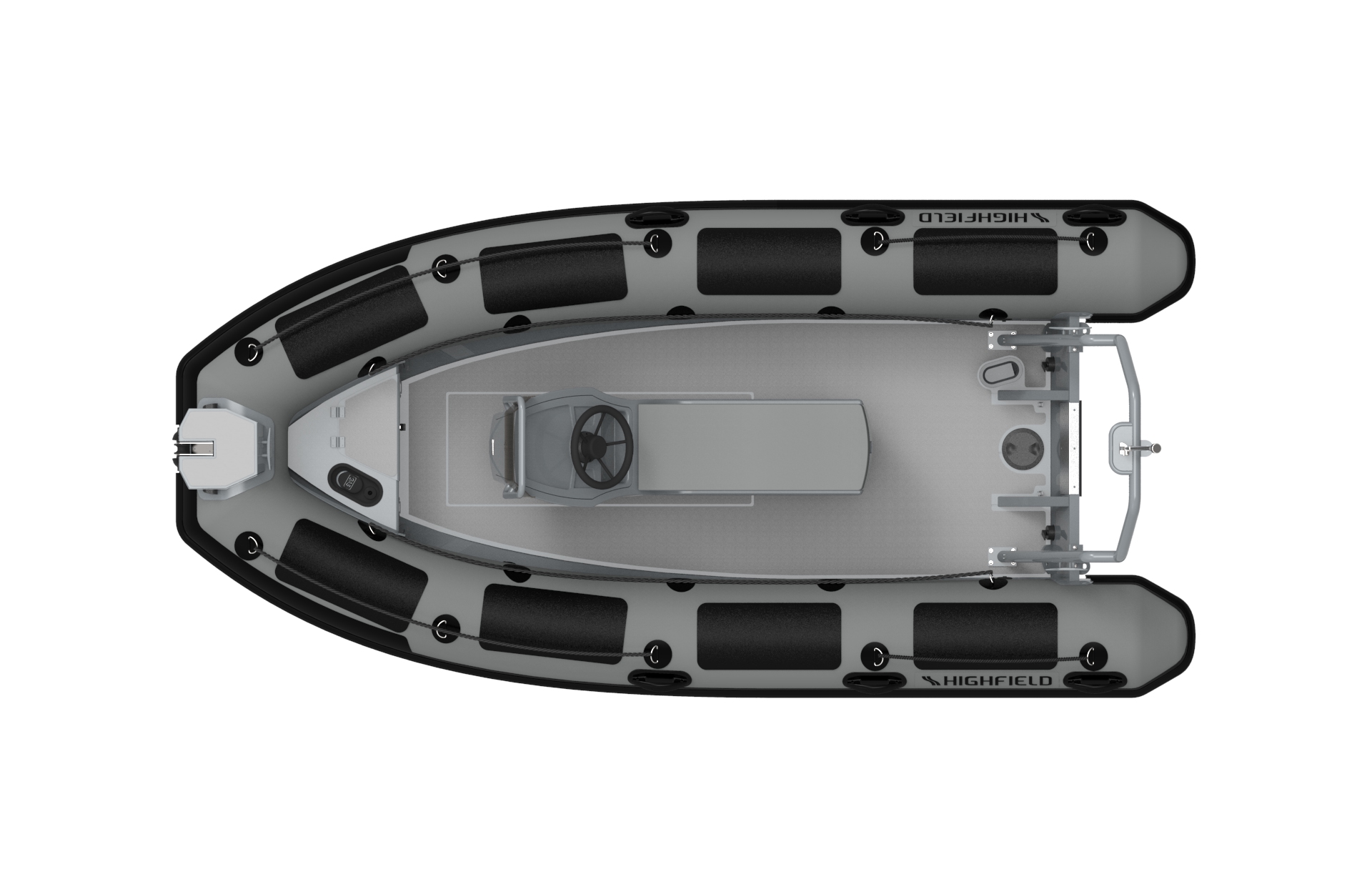

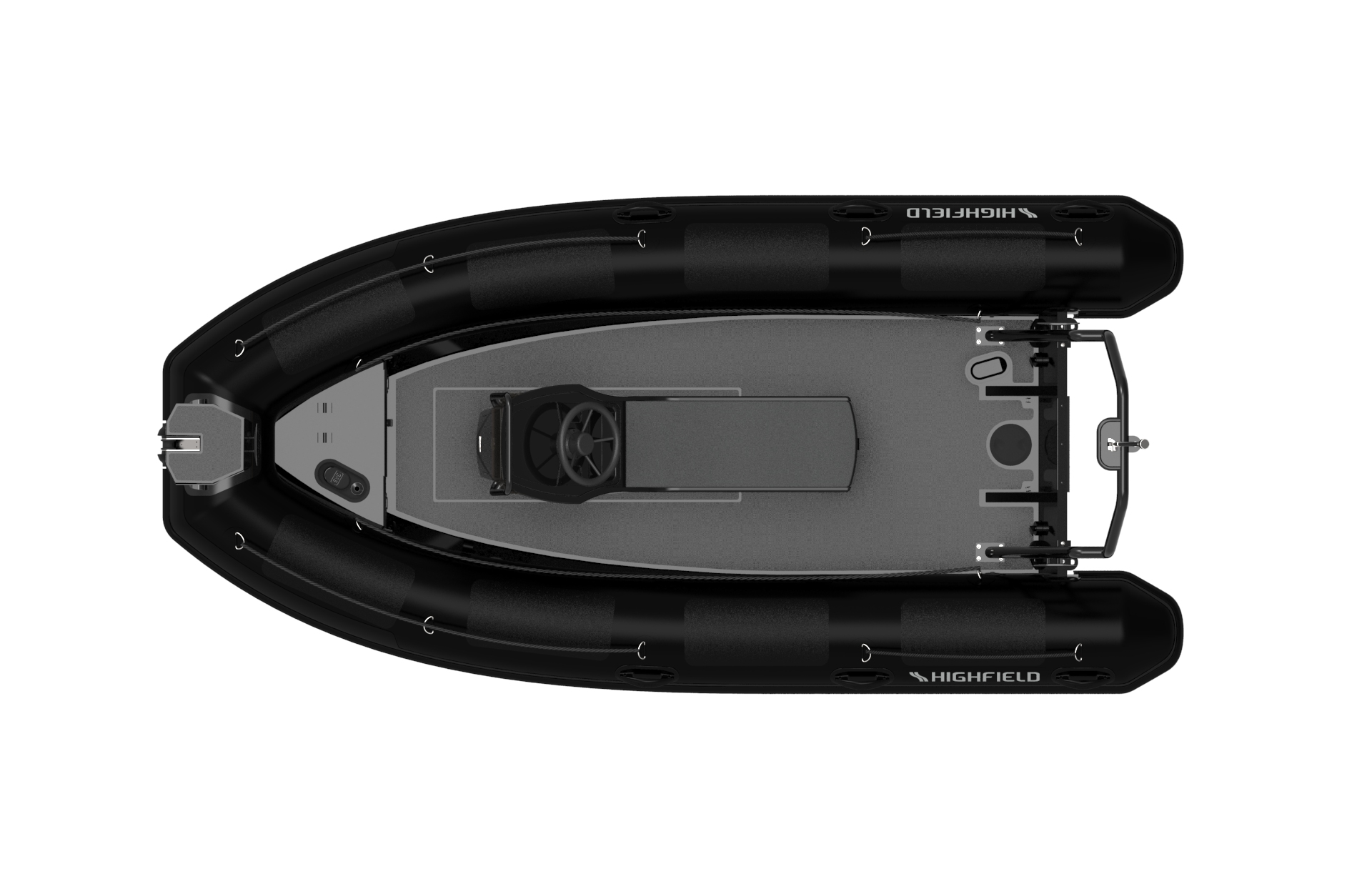

COLOUR OPTIONS

FEATURES

The Patrol 420 has more features and options than other RIBs in its Class.

Open layout with room for extra passengers to sit on the tubes

Jockey console option is perfect out for longer hours in rough conditions

Optional heavy duty tow post

Jockey console dash and controls

Rear arch with upright console option
